ACTION

B12Total length (including towing bar) (mm)

B125194

B15Total width (mm)

B152196

B5Mass in running order (kg)

B5862 - 932

O1bMax. No. of berths

O1b2 - 3

Action-packed for adventure

The compact, light-weight and stylish Action at 3,6m internal length continues to delight, thanks to its unique appearance and very practical layout and features. Built with GFK construction on an AL-KO chassis, it's a dependable companion too.

360° virtual tour



Interior comparison

Interior
Exterior
Day
Night
day
Modified Image


Textiles

Picture for illustration purposes only. Details may vary.

3 steps to your caravan

1. Layouts(2)

361 LH

Textiles

Panama
Aosta

361 LH

Total length (including towing bar) (mm) B12

5194 B12

Total width (mm) B15

2196 B15

Mass in running order (kg) B5

932 B5

Max. No. of berths O1b

3 O1b

Technical data

Dimensions and weights B

Awning perimeter dimensions (body/chassis) (cm)

737

Body length (mm)

4010

Ex-Works weight ( kg )

870

Floor, wall and roof insulation thickness (mm)

29/20/20

Floor, wall and roof total thickness (mm)

40/24/23,8

Internal height (mm)

1950

Internal length (mm)

3610

Internal width (mm)

2080

Mass in running order (MRO) ( kg )

932

Max loading weight (kg)

68

Max. technically permissible laden mass (MTPLM) / optional (kg)

1000

Technically possible weight increase (optional MTPLM, kg)

1100

Total height (mm)

2545

Total length (including towing bar) (mm)

5194

Total width (mm)

2196

Chassis equipment C

Alloy wheels

O

Chassis type

AL-KO

Coupling device AK

90 S/3 AK 160

Coupling device AKS

X

Drawbar cover

X

Increased MTPLM up to 1100 kg with AKS and alloy wheels

O

Increased MTPLM up to 1100 kg with AKS and steel wheels

O

Mud protection

O

Number of axles

1

Shock absorbers

X

Spare wheel 1100 kg (Action)

O

Spare wheel with holder

O

Standard axle

X

Standard supporting legs

X

Steel wheels

X

Third wheel with the real tyre

O

Tyres service kit

O

Tyres size

185/65 R14

Wheel box insulation

X

Wheel trims

X

Body E

Adria windows - darker

X

Black-out roller blinds with flyscreen on all windows

X

Bodywork in polyester

X

Double gazed front windscreen

X

Entrance door 2-part with window

O

Entrance door 2-part without window

X

Floor insulation Styropor

X

Flyscreen - upper part

O

Flyscreen whole door

O

Front and rear wall lining in thermoformed ABS

X

Gas bottle locker

X

Luggage door - left (light dimensions) (cm)

105x28

Luggage door - right (light dimensions) (cm)

105x28 (70x90 PlusP)

Movable entrance step

X

Opening windows all

X

Panoramic window Action (double)

O (only TrumaP)

Panoramic window Action (single)

O

Roof light Midi Heki 70x50 cm

X

Side walls in polyester

white (grey optional)

Third break light

X

Interior equipment F

Decorative pillows (2 pcs) 60x50cm

O

Decorative pillows (4 pcs) 42x42 cm

O

Liftable table with telescopic leg in "U" sitting group

X

Overall sleeping places

3

Sleeping area, front berths (cm)

200x204 / 2x 200x66

Kitchen equipment G

3-flame gas cooker with electric ignition, glass cover and stainless steel sink

X

Drainer

O

Kitchen taps (cold & hot water)

X

Refrigerator

90 L

Sink cover / chopping board

O

Bathroom equipment H

Foldable washbasin

X

Separate shower faucet

X

Shower curtain

X

Shower tray

X

WC chemical, fixed, passive ventilated

X

Water installations I

Boiler Truma Therme 5 L

X

Central waste water outlet

X

Fresh water tank with external inlet (L)

40 L

Waste water tank (L)

O

Electricity J

13-pin socket Jaeger

X

Additional spot lights in sitting area

X

Awning LED light

X

Battery charger

O / 17A

Ceiling LED lights

X

Light in luggage compartment

X

Main fit switch

X

Power sockets

X

Preinstallation for charger with battery box

O

Spot halogen lights

X

TV aerial connector with coaxial cable

X

Transformer 300 W

X

Heating/air conditioning K

Additional electric heater Truma Ultraheat

O

Air conditioning system Truma Saphir Compact

O

Electric floor heating with transformer

O

Gas heating stove Truma S3004

X

Hot-air distribution Trumavent

X

Preinstallation for additional electric heater Truma Ultraheat - preinstallation

X

Gas L

Gas bottle compartment 2 x 11 kg

1x11 kg

Gas bottle holder

X

Gas regulation valve

X

Audio/video M

Preinstallation for car radio with antenna and two loudspeakers

X

TV holder

O

361 PD

Textiles

Panama
Aosta

361 PD

Total length (including towing bar) (mm) B12

5194 B12

Total width (mm) B15

2196 B15

Mass in running order (kg) B5

862 B5

Max. No. of berths O1b

2 O1b

Technical data

Dimensions and weights B

Awning perimeter dimensions (body/chassis) (cm)

737/300

Body length (mm)

4010

Ex-Works weight ( kg )

780

Floor, wall and roof insulation thickness (mm)

29/20/20

Floor, wall and roof total thickness (mm)

40/24/23,8

Internal height (mm)

1950

Internal length (mm)

3610

Internal width (mm)

2080

Mass in running order (MRO) ( kg )

862

Max loading weight (kg)

138

Max. technically permissible laden mass (MTPLM) / optional (kg)

1000

Technically possible weight increase (optional MTPLM, kg)

1100

Total height (mm)

2545

Total length (including towing bar) (mm)

5194

Total width (mm)

2196

Chassis equipment C

Alloy wheels

O

Chassis type

AL-KO

Coupling device AK

90 S/3 AK 160

Coupling device AKS

X

Drawbar cover

X

Increased MTPLM up to 1100 kg with AKS and alloy wheels

O

Increased MTPLM up to 1100 kg with AKS and steel wheels

O

Mud protection

O

Number of axles

1

Shock absorbers

X

Spare wheel 1100 kg (Action)

O

Spare wheel with holder

O

Standard axle

X

Standard supporting legs

X

Steel wheels

X

Third wheel with the real tyre

O

Tyres service kit

O

Tyres size

185/65 R14

Wheel box insulation

X

Wheel trims

X

Body E

Adria windows - darker

X

Black-out roller blinds with flyscreen on all windows, except in toilet comp.

X

Bodywork in polyester

X

Double gazed front windscreen

X

Entrance door 2-part with window

O

Entrance door 2-part without window

X

Floor insulation Styropor

X

Flyscreen - upper part

O

Flyscreen whole door

O

Front and rear wall lining in thermoformed ABS

X

Gas bottle locker

X

Horrex Duo Plissés on all windows

X

Luggage door - left (light dimensions) (cm)

63x44

Luggage door - right (light dimensions) (cm)

73x28

Movable entrance step

X

Opening windows all

X

Panoramic window Action (double)

-

Panoramic window Action (single)

-

Roof light Midi Heki 70x50 cm

X

Side walls in polyester

white (grey optional)

Third break light

X

Interior equipment F

Bed coverlet

O

Blanket

O

Decorative pillows (2 pcs) 60x50cm

O

Decorative pillows (4 pcs) 42x42 cm

O

Liftable table with telescopic leg in "U" sitting group

-

Overall sleeping places

2

Sleeping area, front berths (cm)

204x130/100

Kitchen equipment G

3-flame gas cooker with electric ignition, glass cover and stainless steel sink

X

Drainer

O

Kitchen taps (cold & hot water)

X

Refrigerator

90 L

Sink cover / chopping board

O

Bathroom equipment H

Foldable washbasin

X

Separate shower faucet

X

Shower curtain

X

Shower tray

X

WC chemical, fixed, passive ventilated

X

Water installations I

Boiler Truma Therme 5 L

X

Central waste water outlet

X

Fresh water tank with external inlet (L)

50 L

Waste water tank (L)

O

Electricity J

13-pin socket Jaeger

X

Additional spot lights in sitting area

X

Awning LED light

X

Battery charger

O / 17A

Ceiling LED lights

X

Light in luggage compartment

X

Main fit switch

X

Power sockets

X

Preinstallation for charger with battery box

O

Spot halogen lights

X

TV aerial connector with coaxial cable

X

Transformer 300 W

X

Heating/air conditioning K

Additional electric heater Truma Ultraheat

O

Electric floor heating with transformer

O

Gas heating stove Truma S3004

X

Hot-air distribution Trumavent

X

Preinstallation for additional electric heater Truma Ultraheat - preinstallation

X

Gas L

Gas bottle compartment 2 x 11 kg

2x 11 kg

Gas bottle holder

X

Gas regulation valve

X

Audio/video M

Preinstallation for car radio with antenna and two loudspeakers

X

TV holder

O

2. New in 2017 & key features

  • Unique stylish exterior design with integrated features.
  • GFK body construction featuring new graphics.
  • Optional panoramic window.
  • AL-KO chassis and AKS.
  • Stylish contemporary interior design and choice of textiles.
  • Comfortable sleeping for up-to three persons.
  • Flexible lounge seating and table group.
  • Smart kitchen with gas burners, sink, worktop, and large fridge.

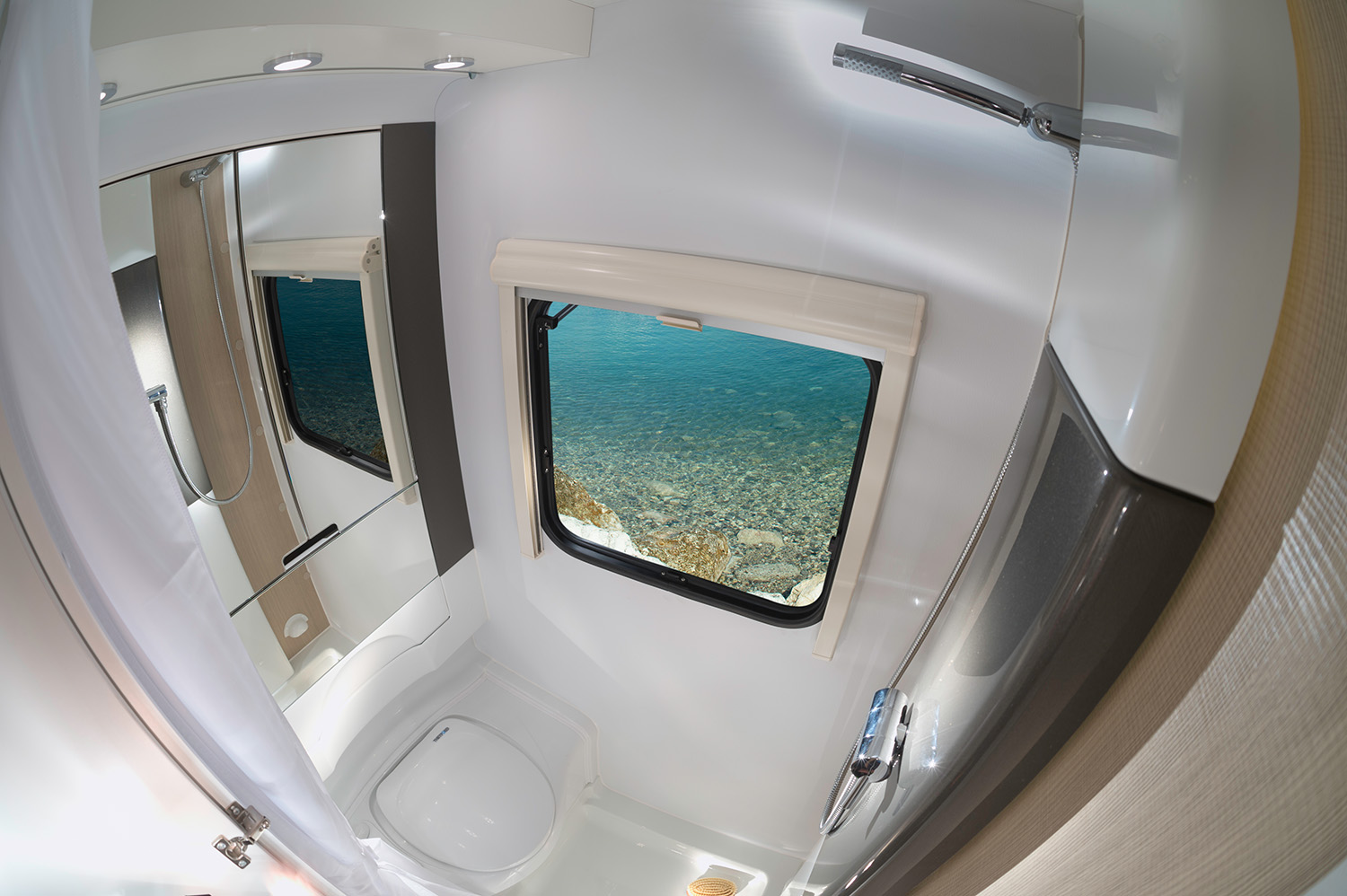

  • Ergo bathroom with quality bathroom equipment.
  • Truma heating with optional upgrades available.
  • Optimized lighting and storage throughout.
  • Plus individual options available.

3. Textiles

Panama
Aosta

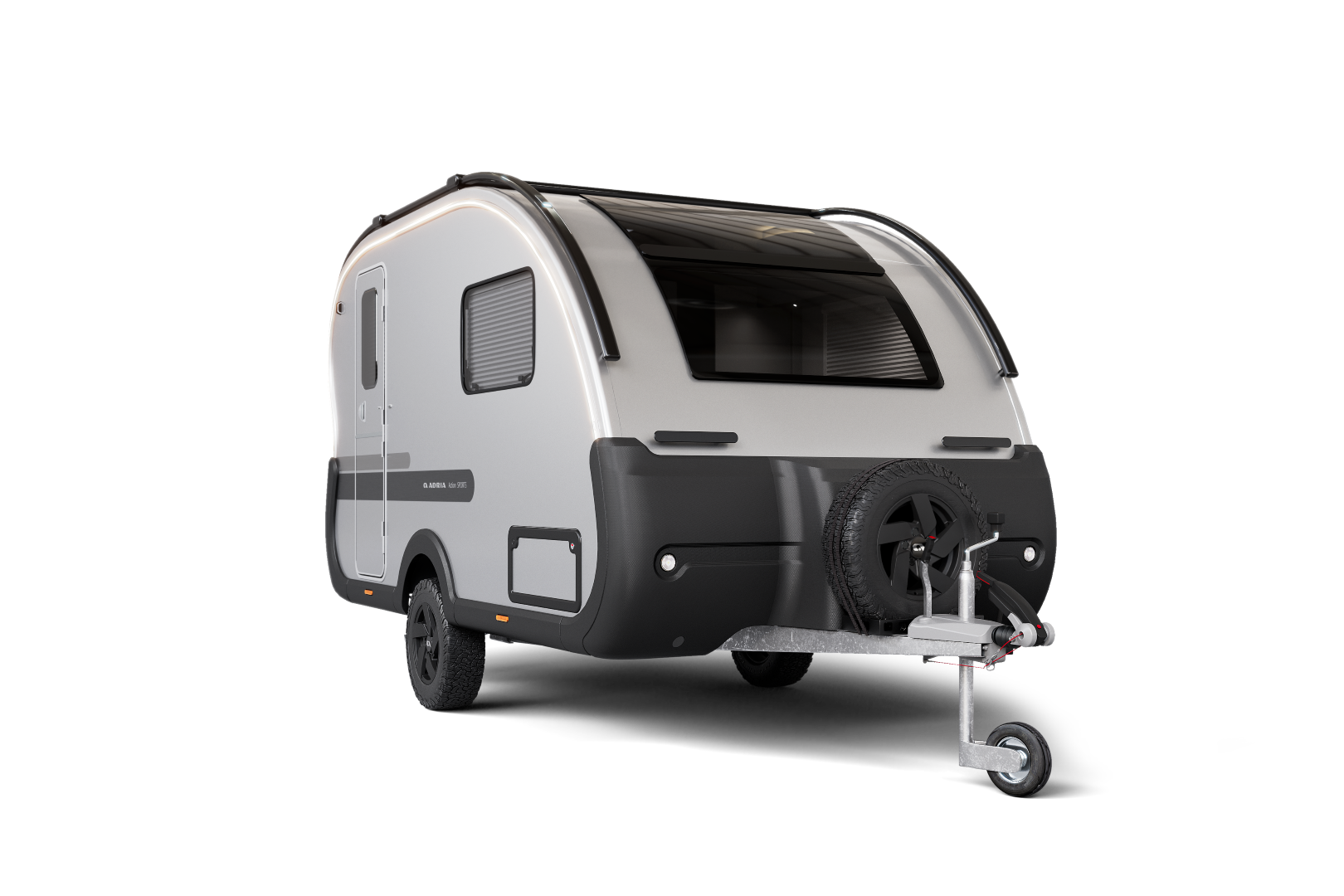

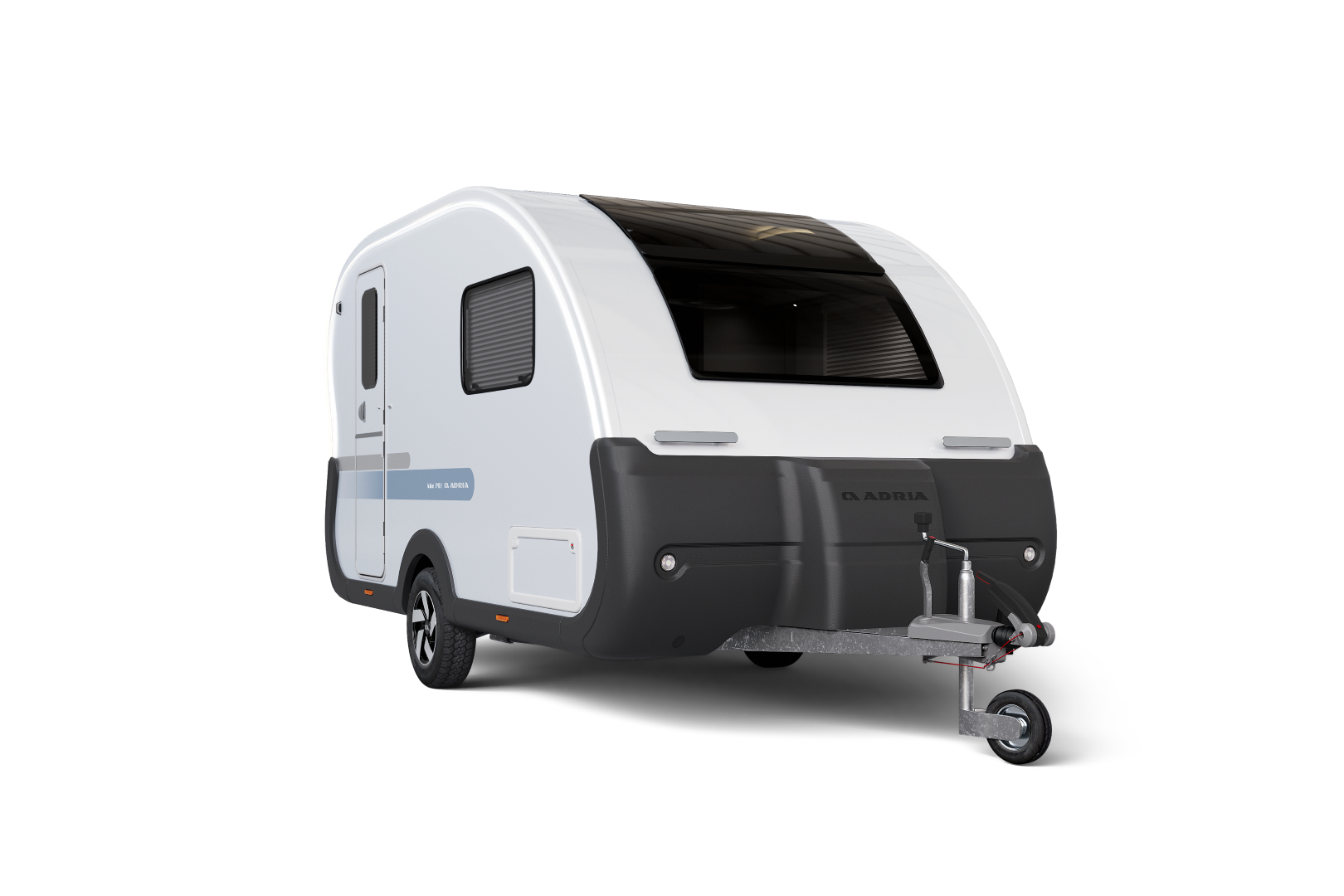

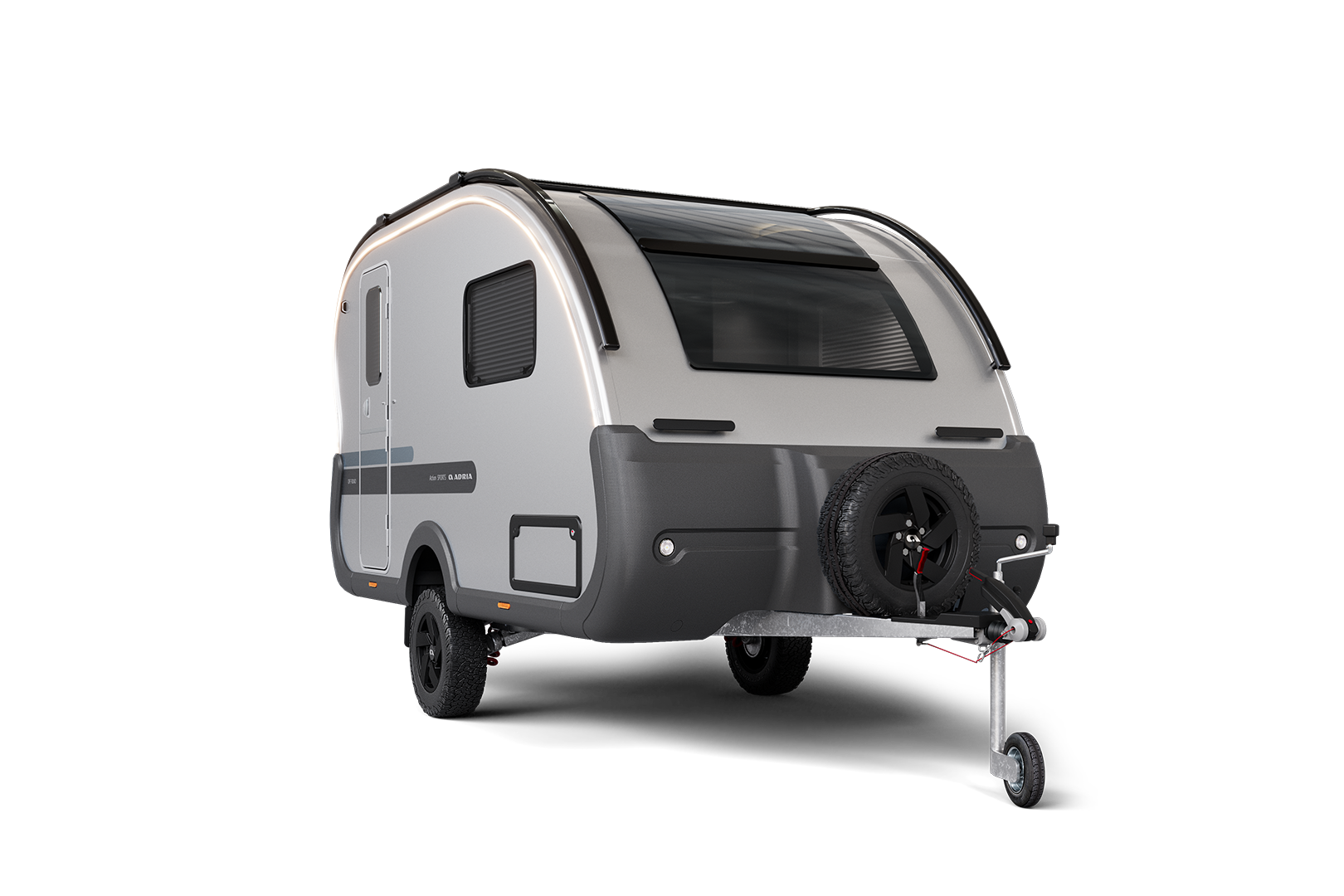

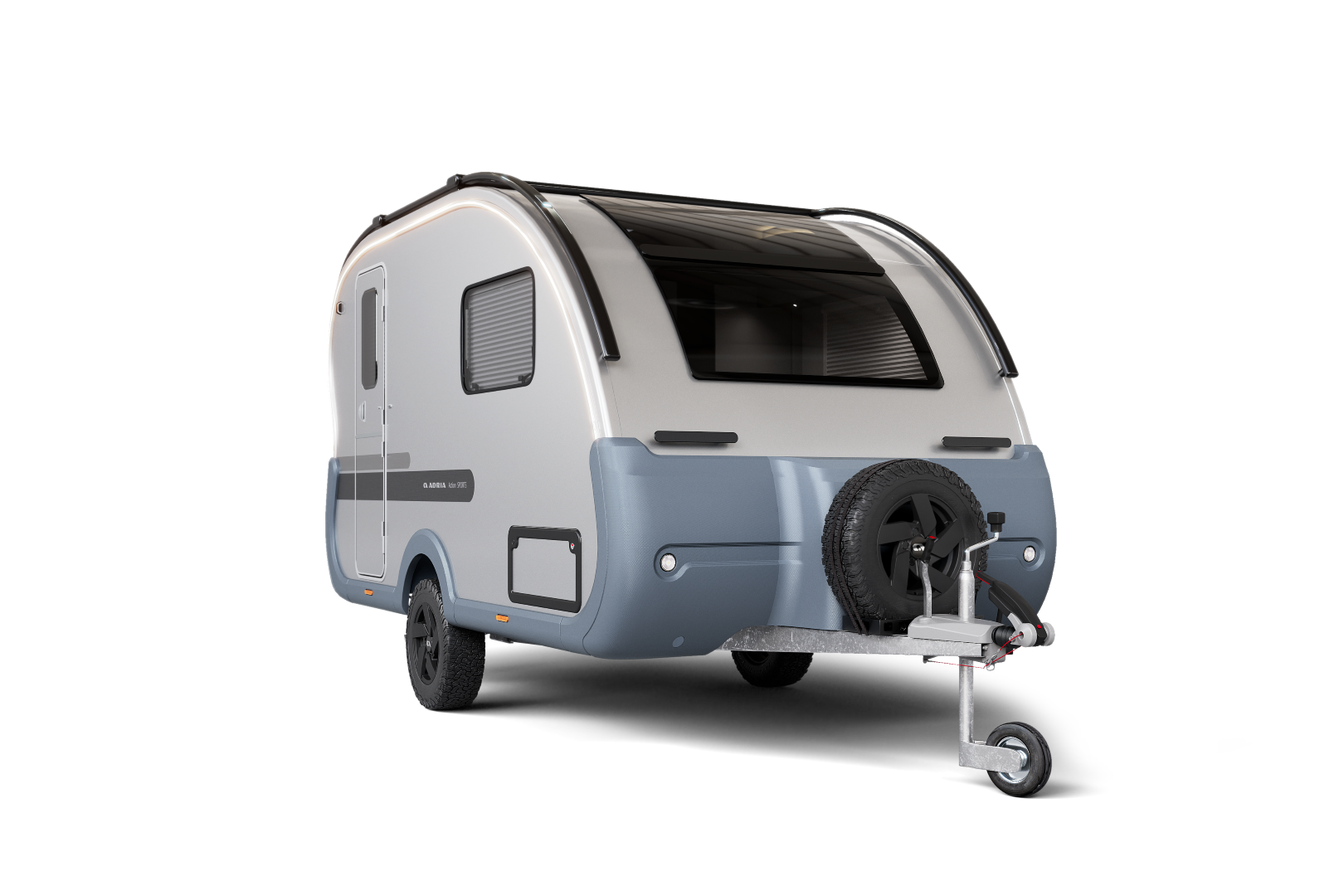

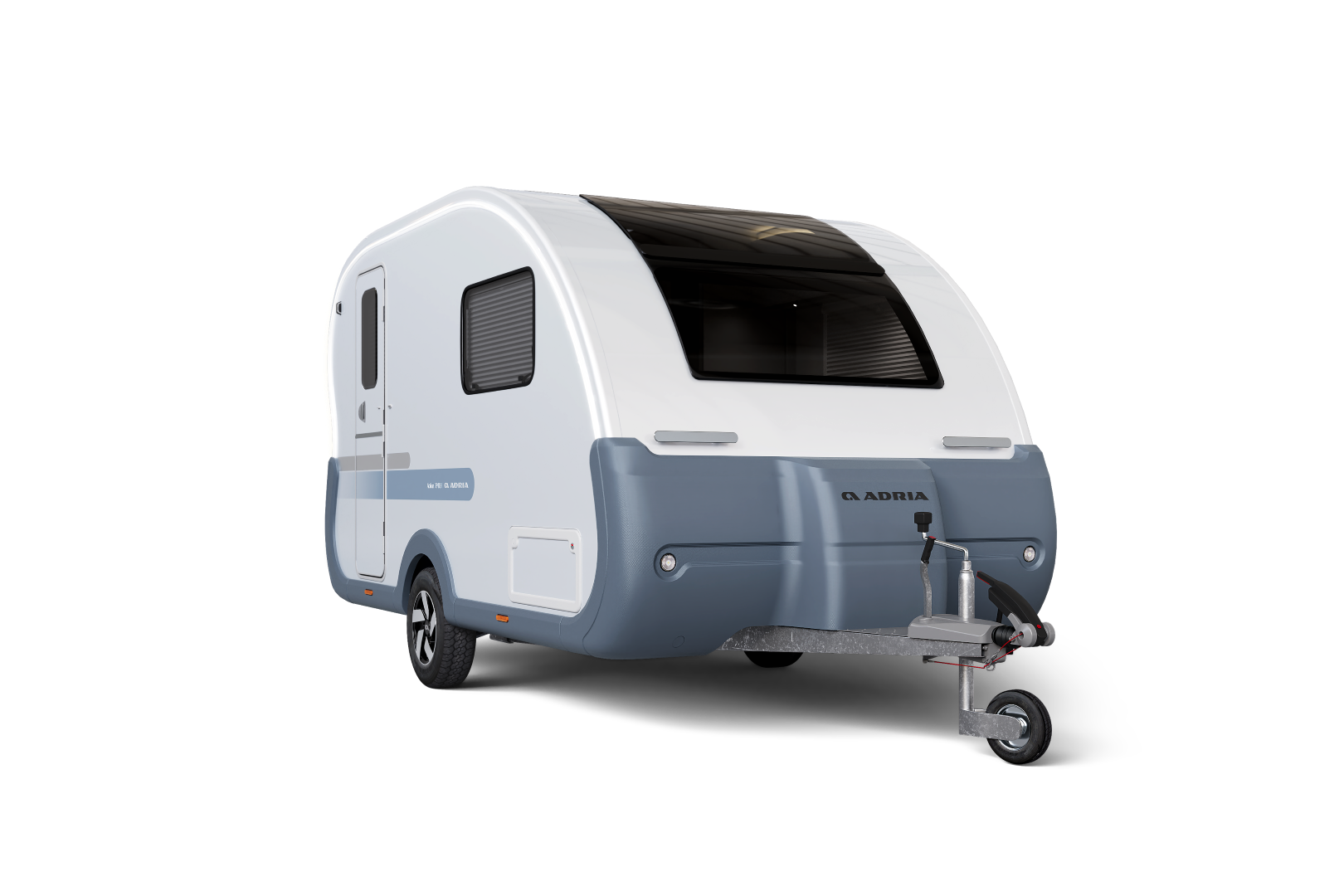

Exterior features

Picture for illustration purposes only. Details may vary.

The compact, light-weight and stylish Action at 3,6m internal length continues to delight, thanks to its unique appearance and very practical layout and features. Built with GFK construction on an AL-KO chassis, it's a dependable companion too.


Unique eye-catching exterior design with dynamic front and rear walls.

Optional panoramic window.

GFK construction with new graphics and a choice of two exterior body colours.

Special thermos-formed exterior plastics in blue.

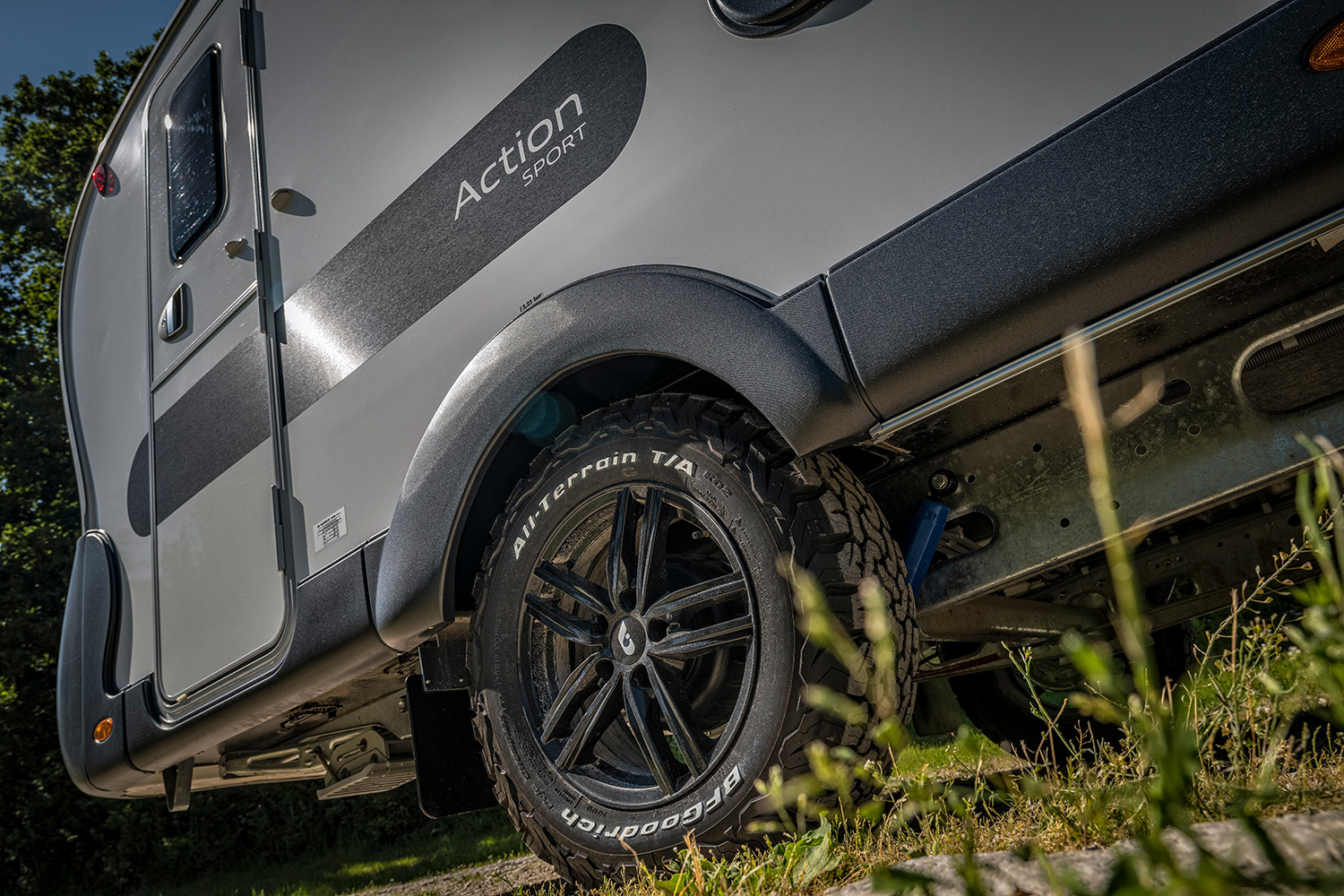

AL-KO chassis and AKS.

Integrated tent profile, awning lights and handles plus garage solution.

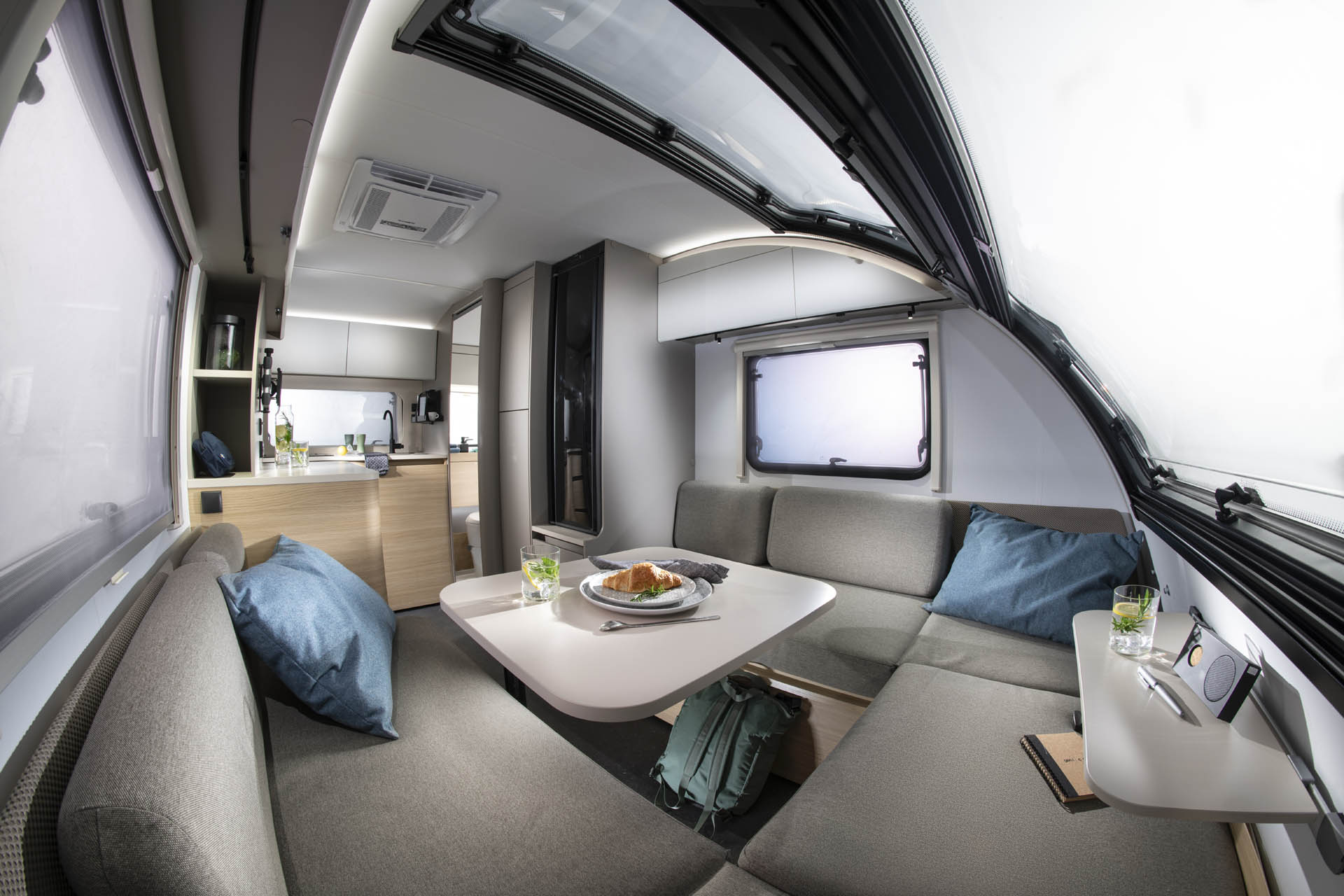

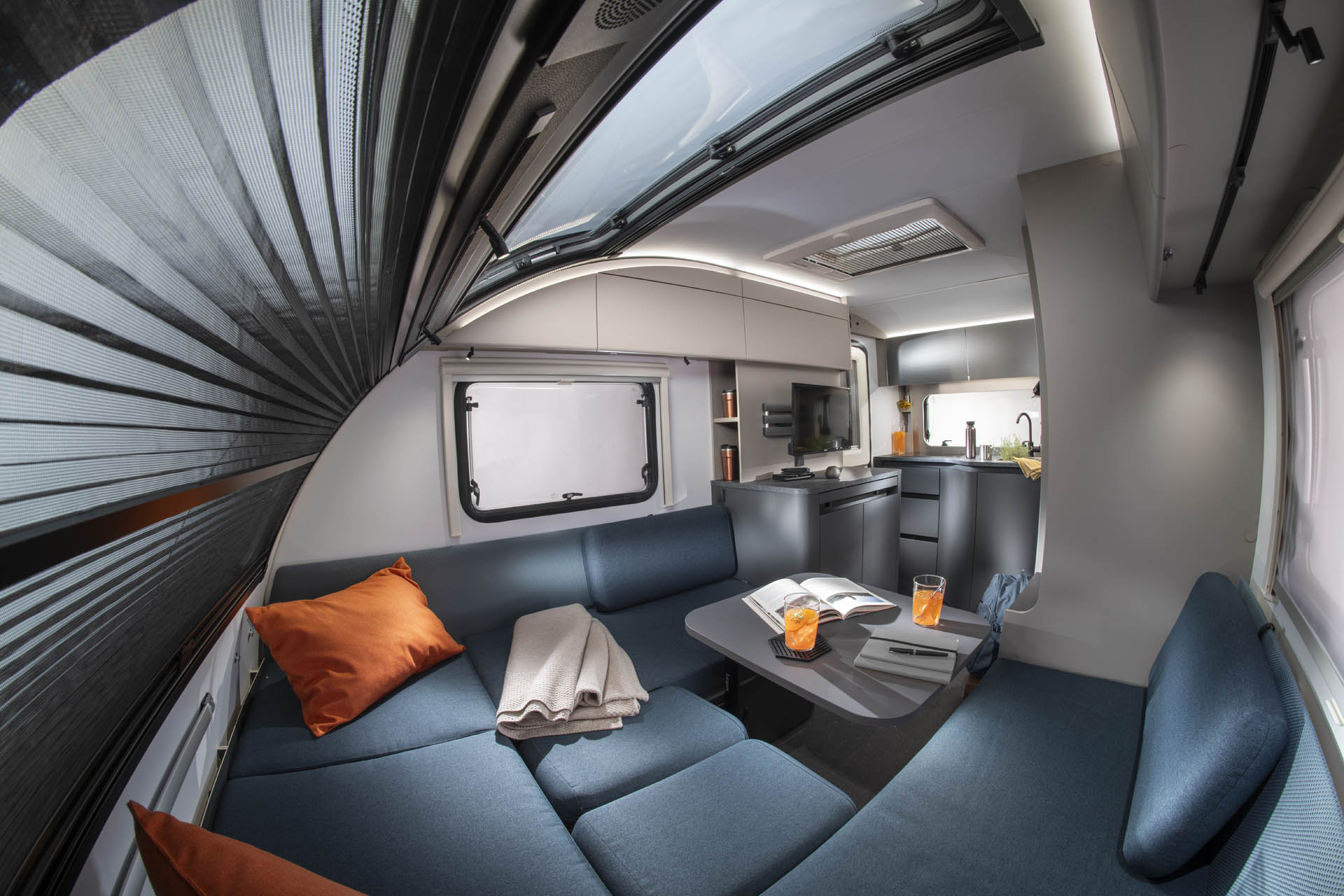

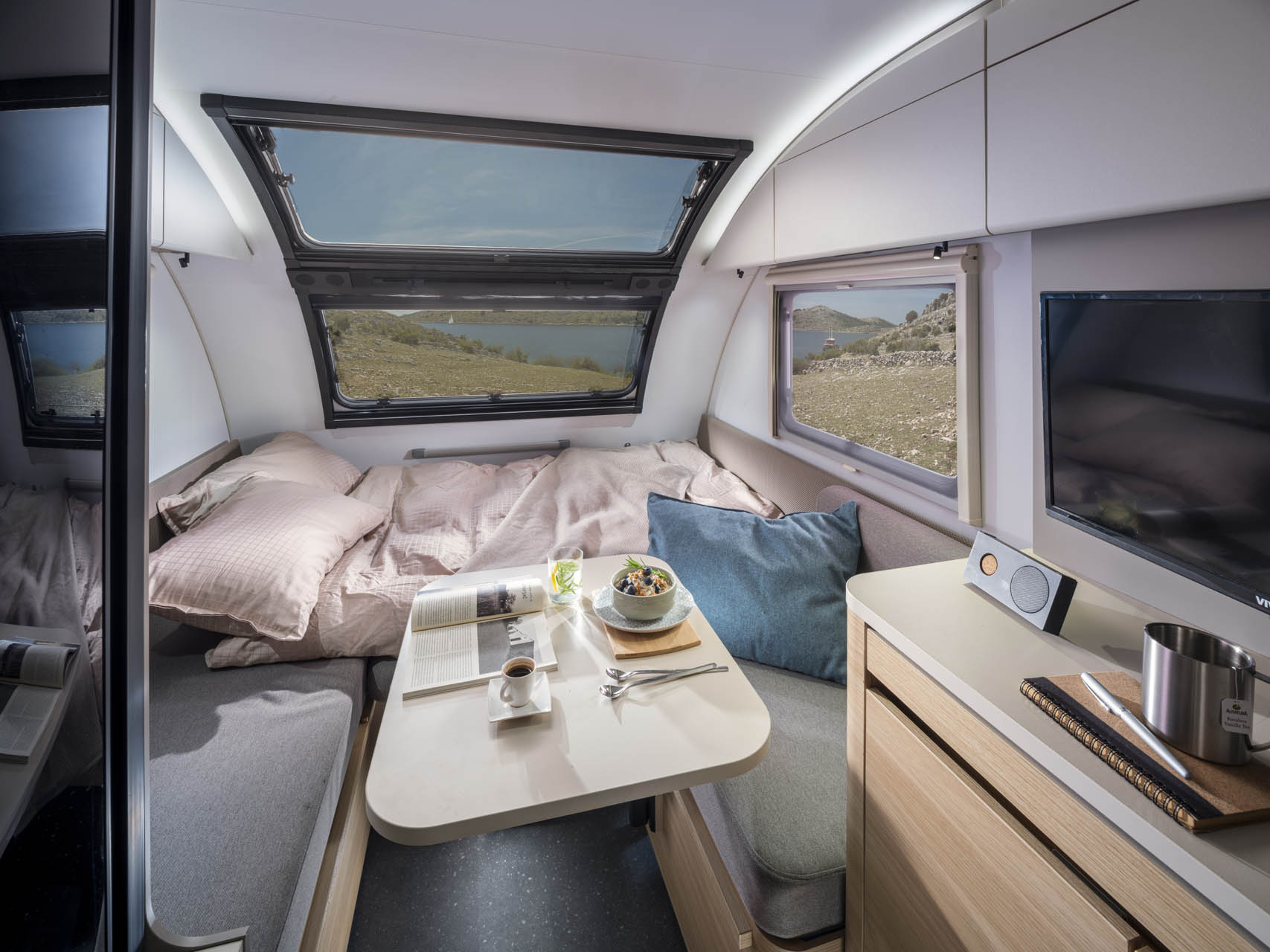

Interior features

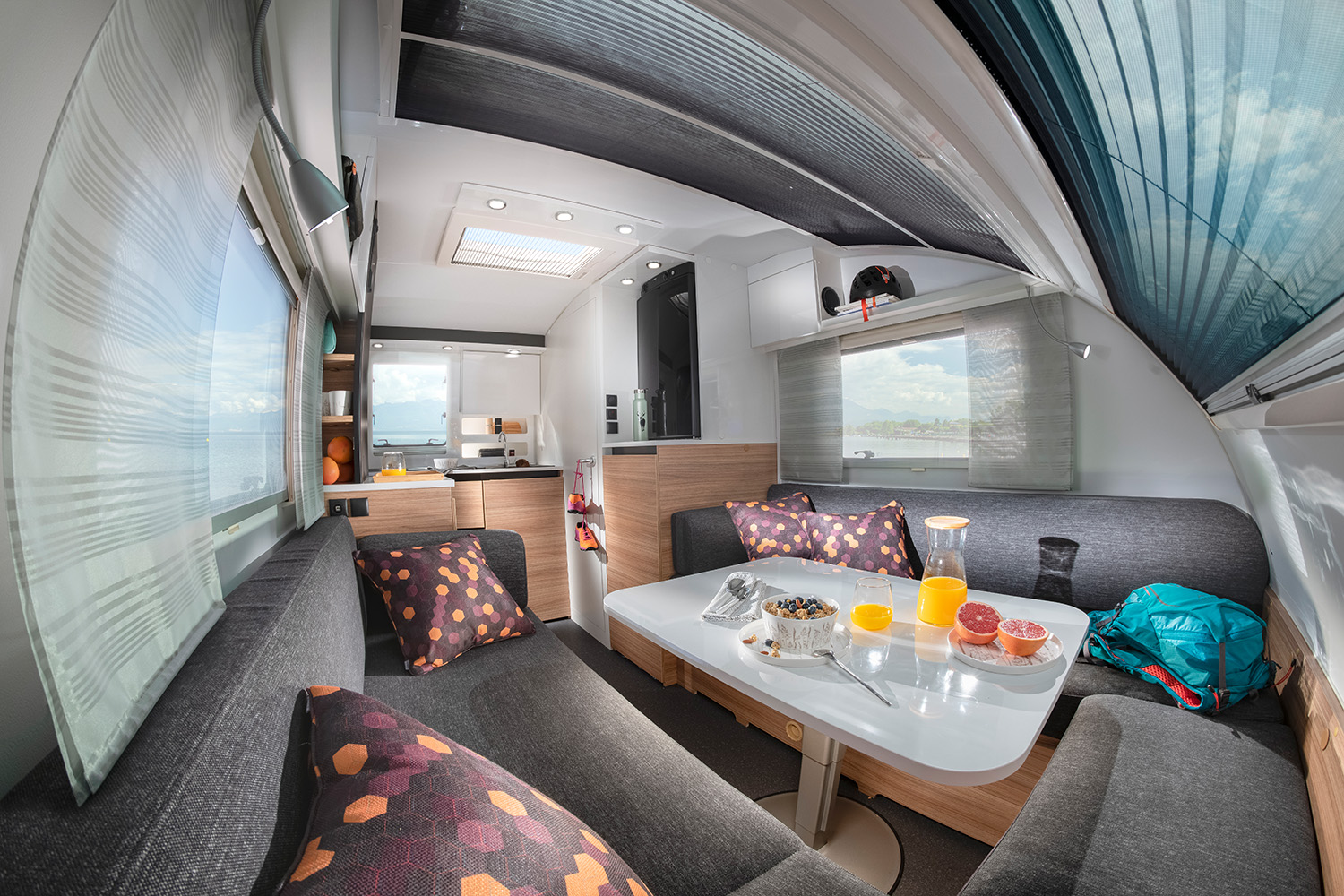

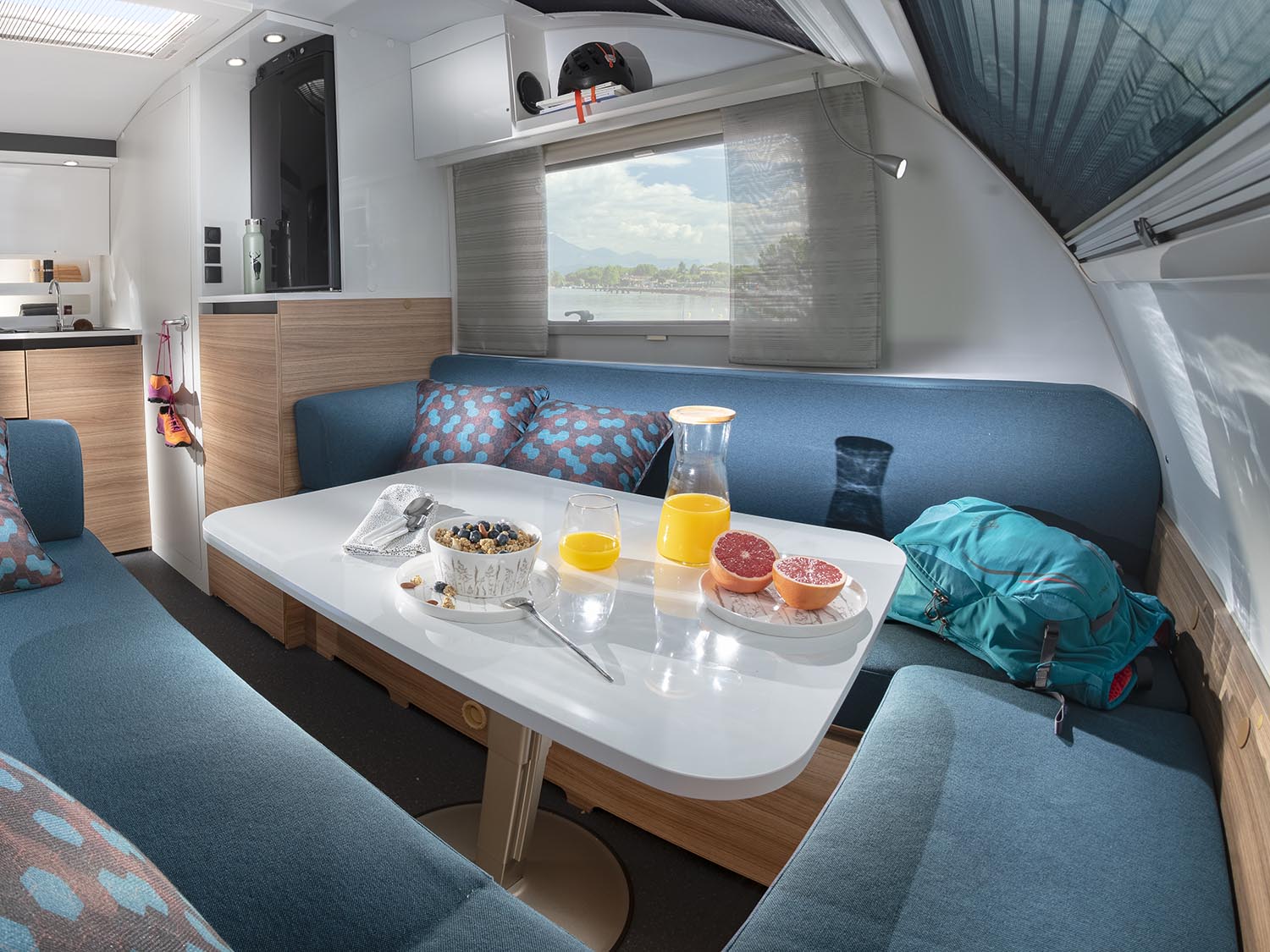

Picture for illustration purposes only. Details may vary.

It feels like the sun is always shining in the Action. A unique caravan which puts a smile on everyone's face. Contemporary interior design, with space and comfortable accommodation for up-to three people. Features Adria Smart kitchen, Ergo bathroom and Truma heating.


Comfortable sleeping for up-to three persons.

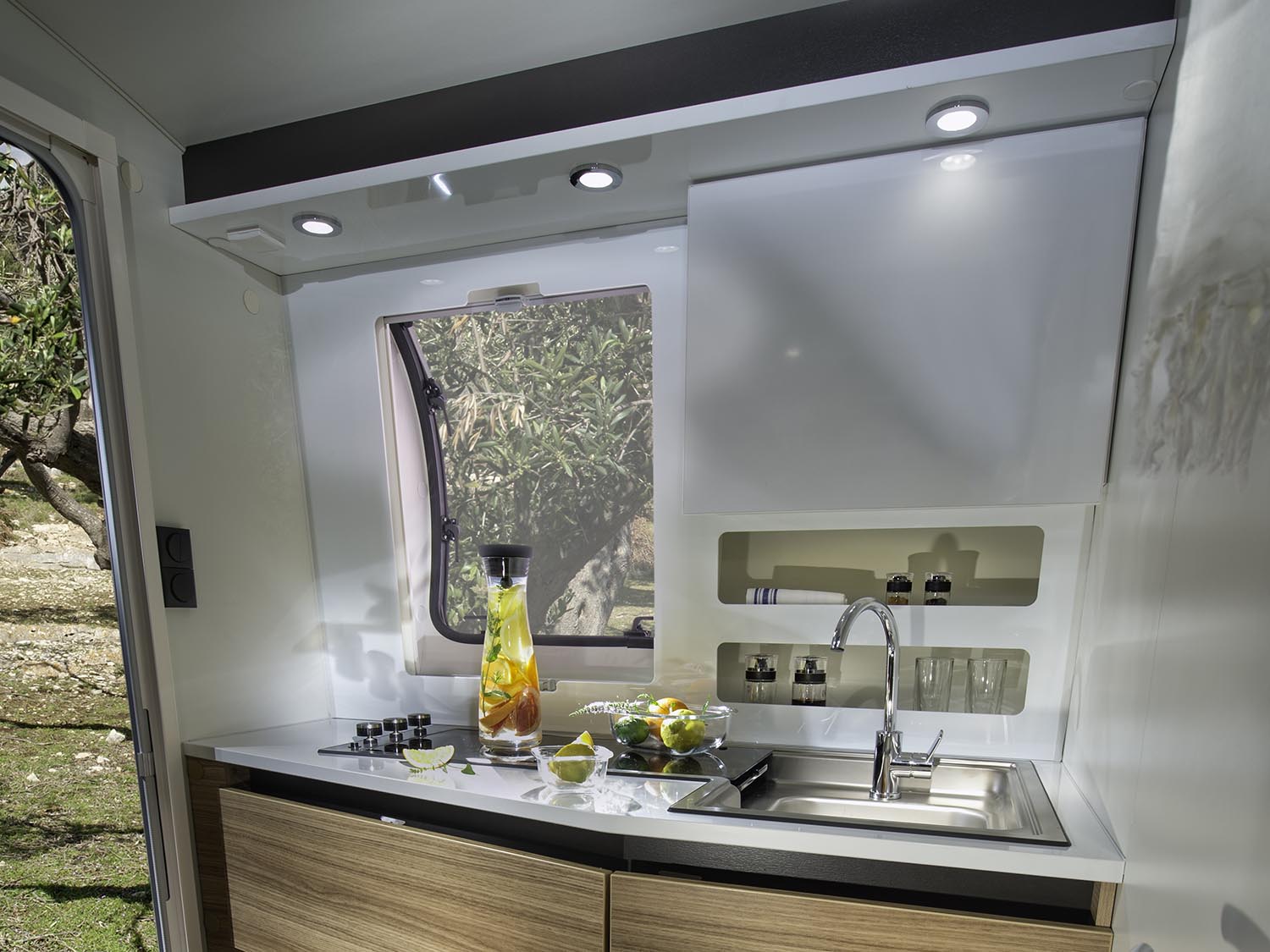

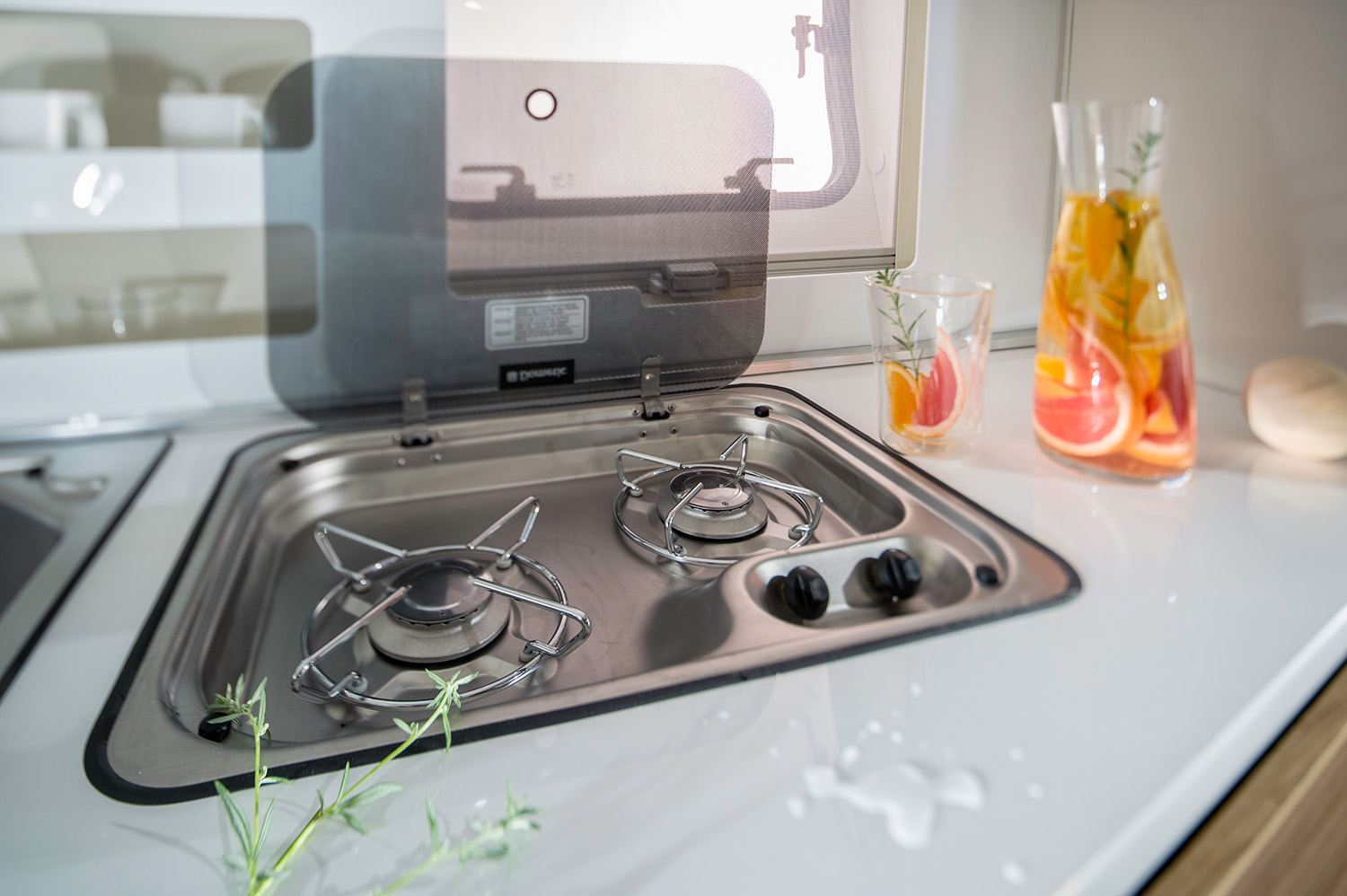

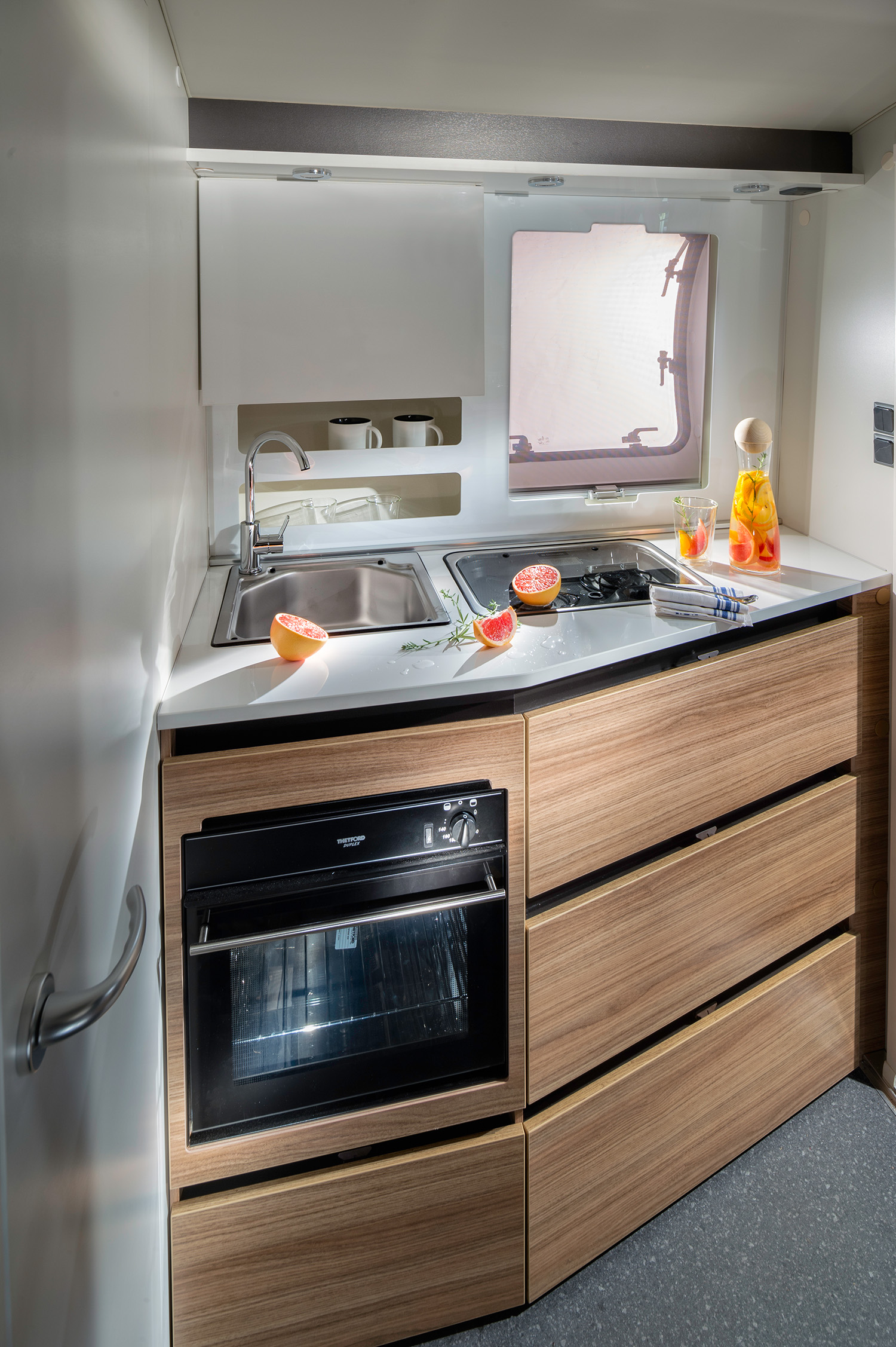

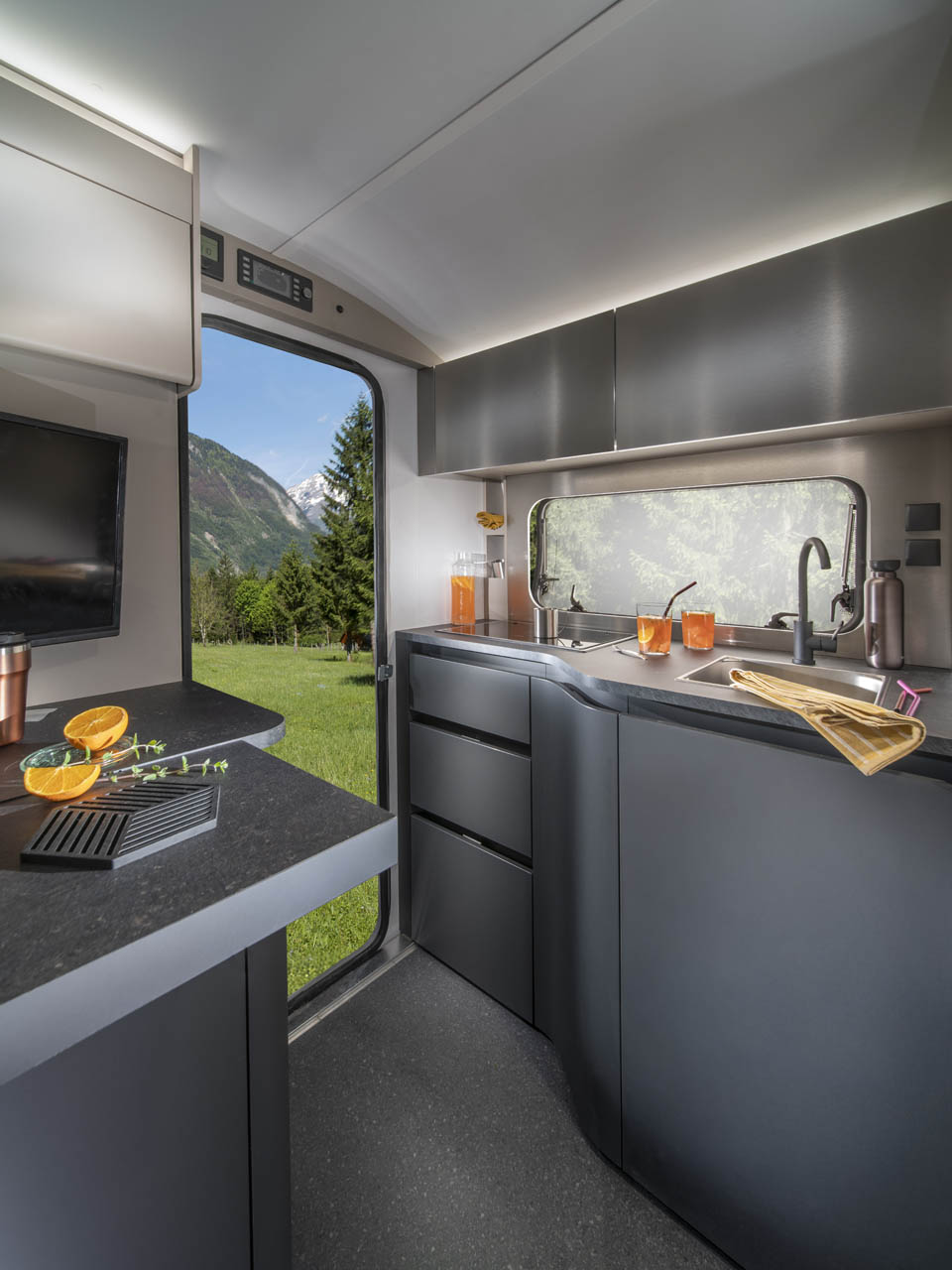

Smart kitchen with three burner stove, cover, sink and fridge.

Contemporary interior design with optimized storage.

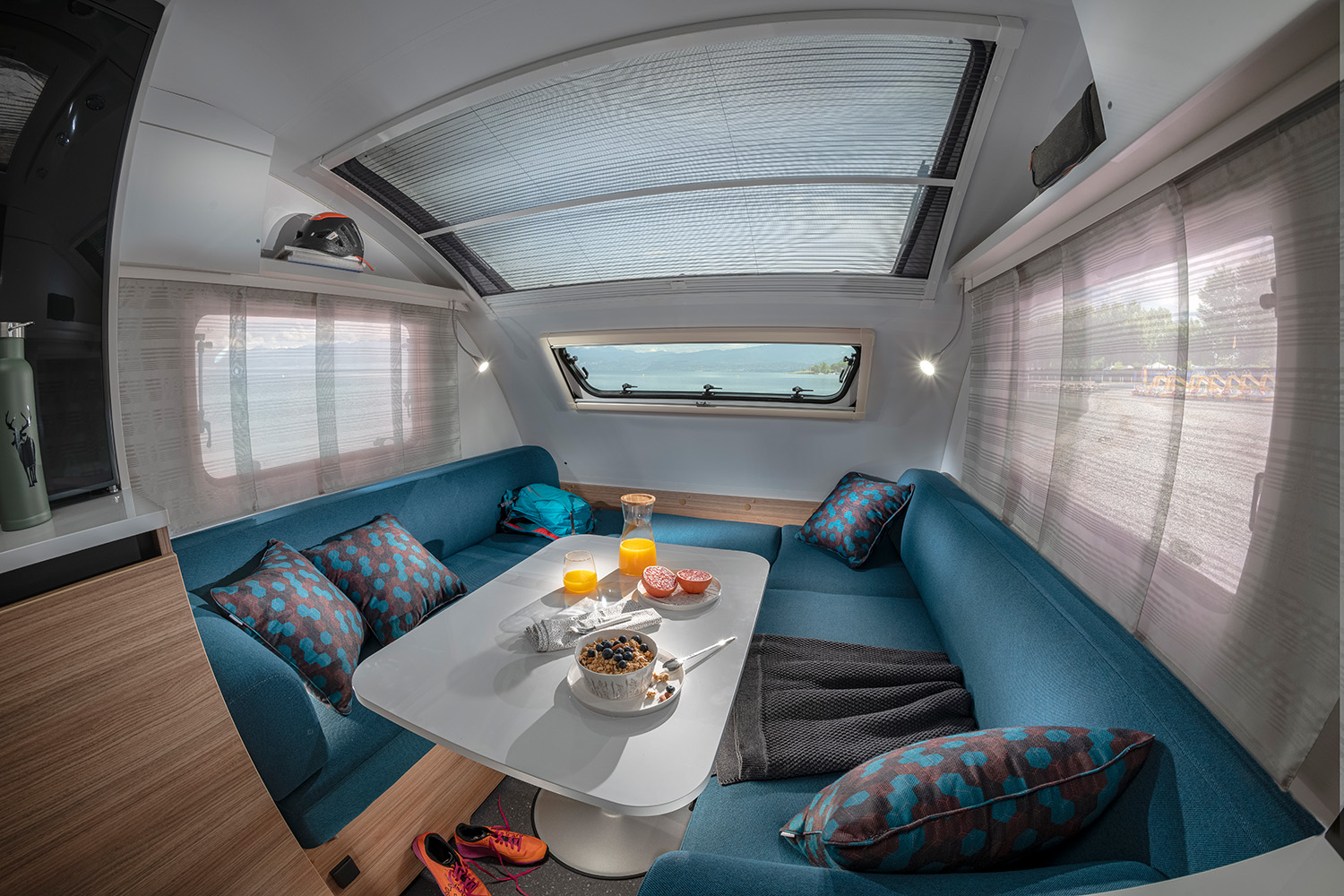

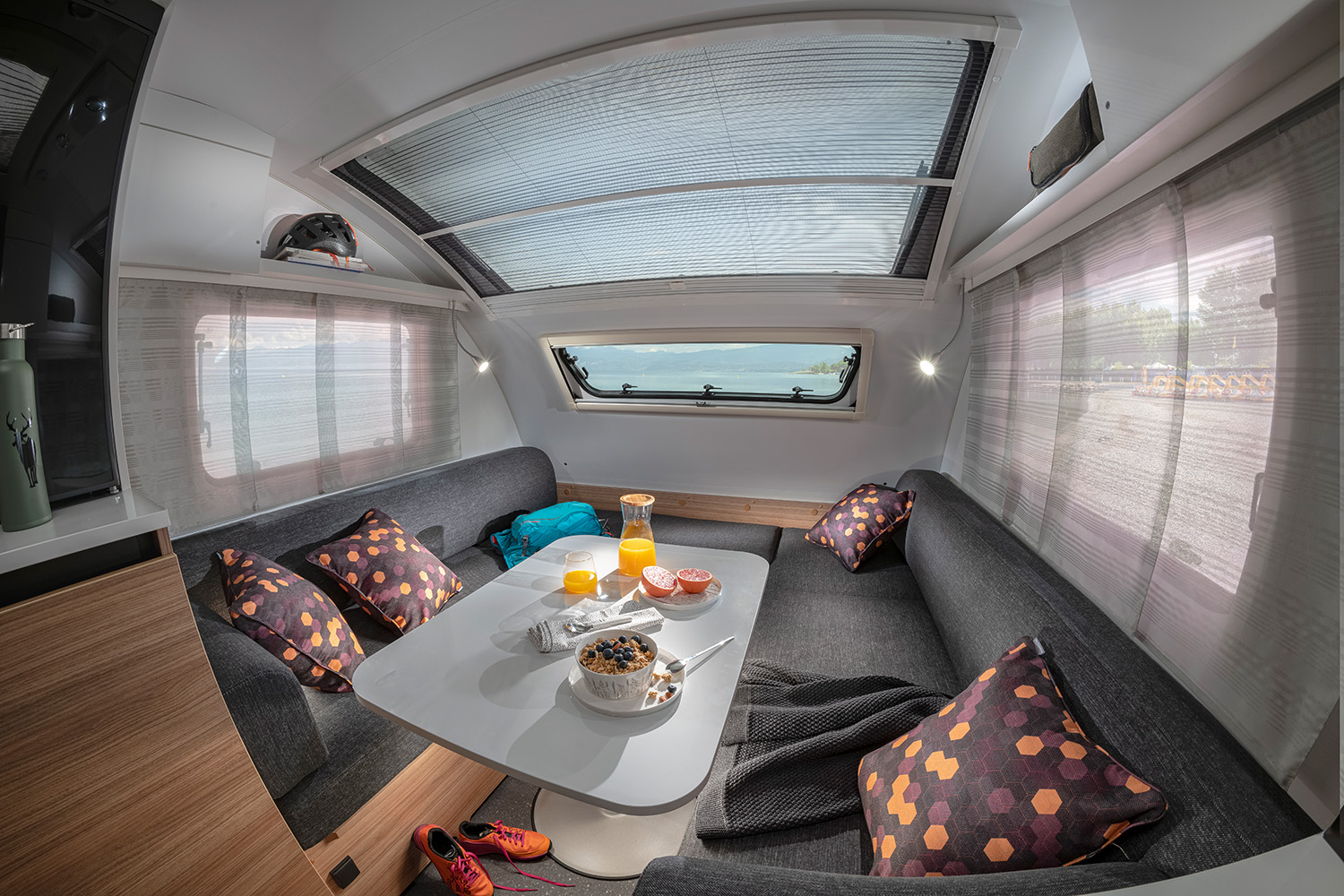

Flexible seating group and table arrangement.

Truma heating with optional upgrades.

Fully integrated Alde heating with Smart Control option.
