ALTEA

B12Total length (including towing bar) (mm)

B125695 - 7610

B15Total width (mm)

B152296

B5Mass in running order (MRO, kg)

B51008 - 1235

O1bNr. of berths

O1b3 - 6

Designed for brighter living

The award-winning Altea with intelligent design, innovative features and premium quality at an attractive price. Season 2018 sees new layouts, including family layout with Kid's Adventure Playground, new choice of textiles and additional USB sockets and Bluetooth amplifier.

Download catalogue Where to find this model

Designed for brighter living

360º virtual tour

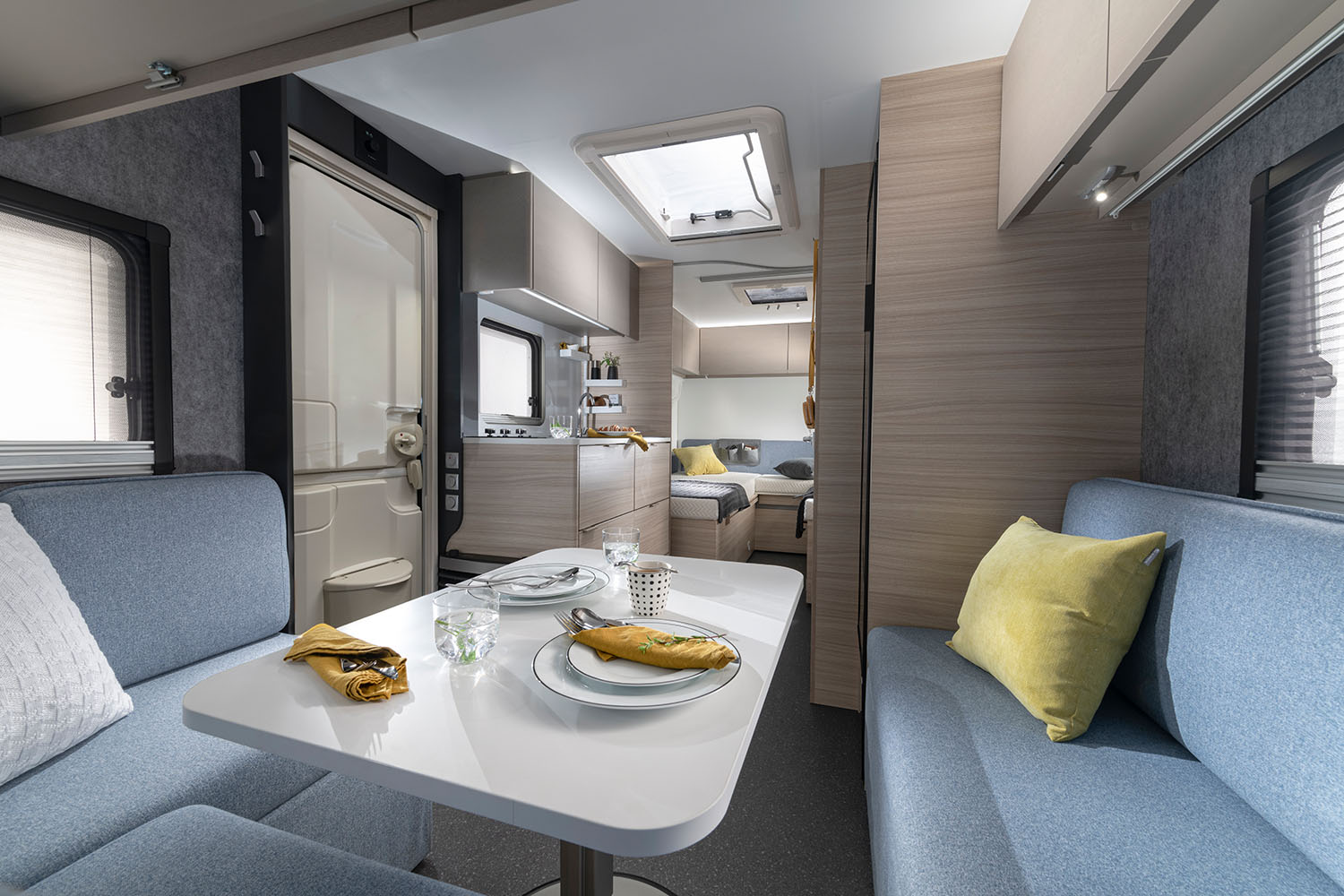

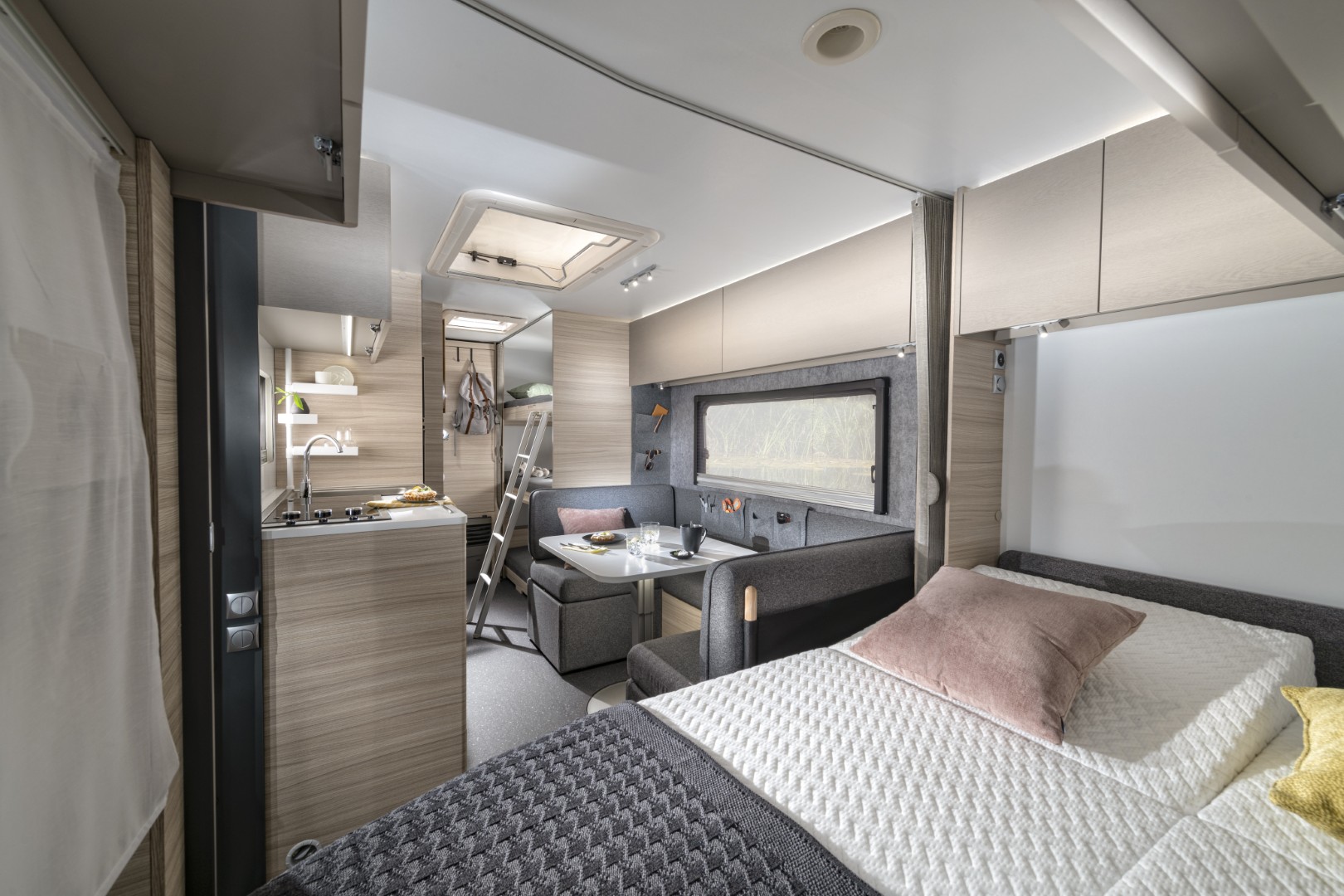

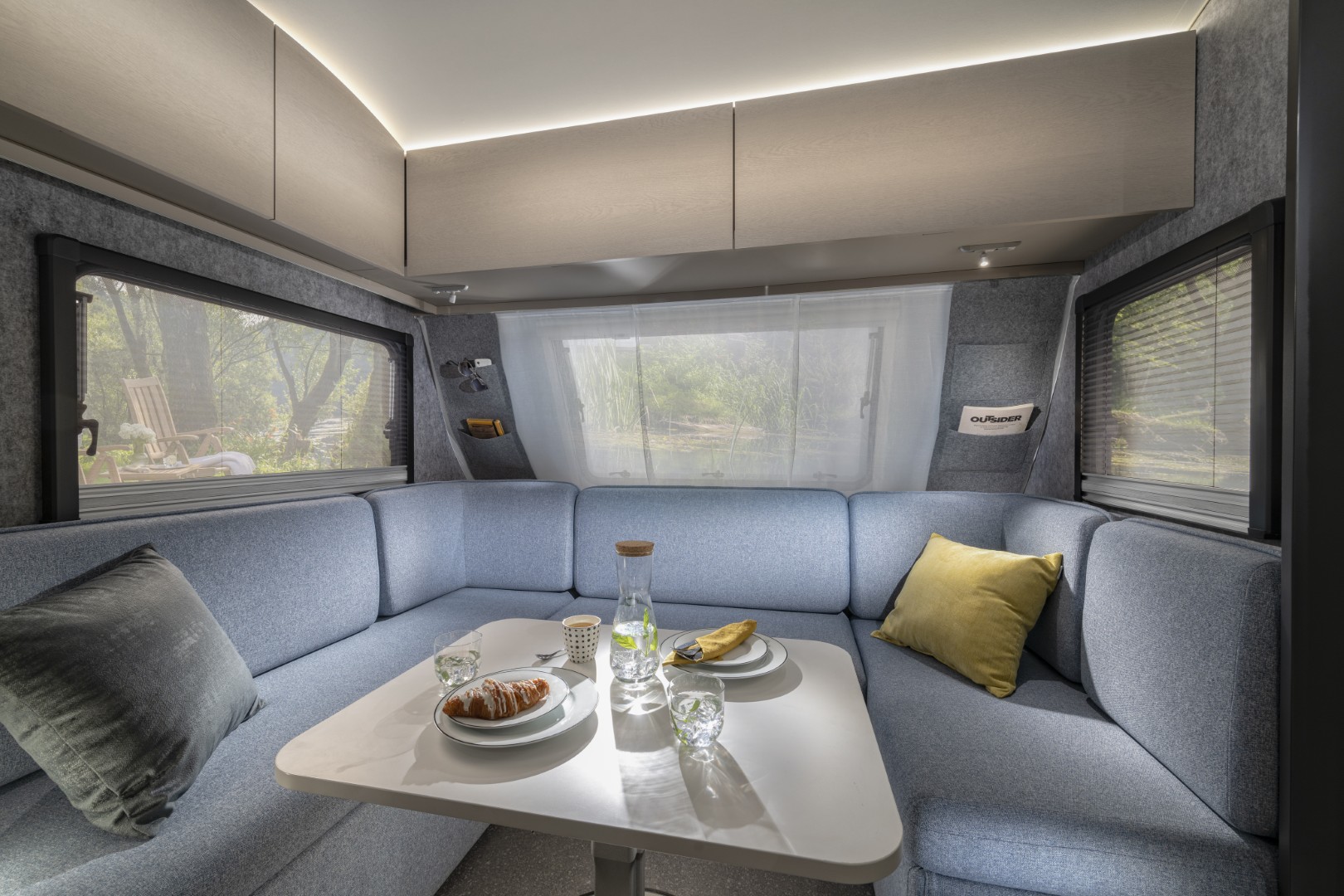

Interior

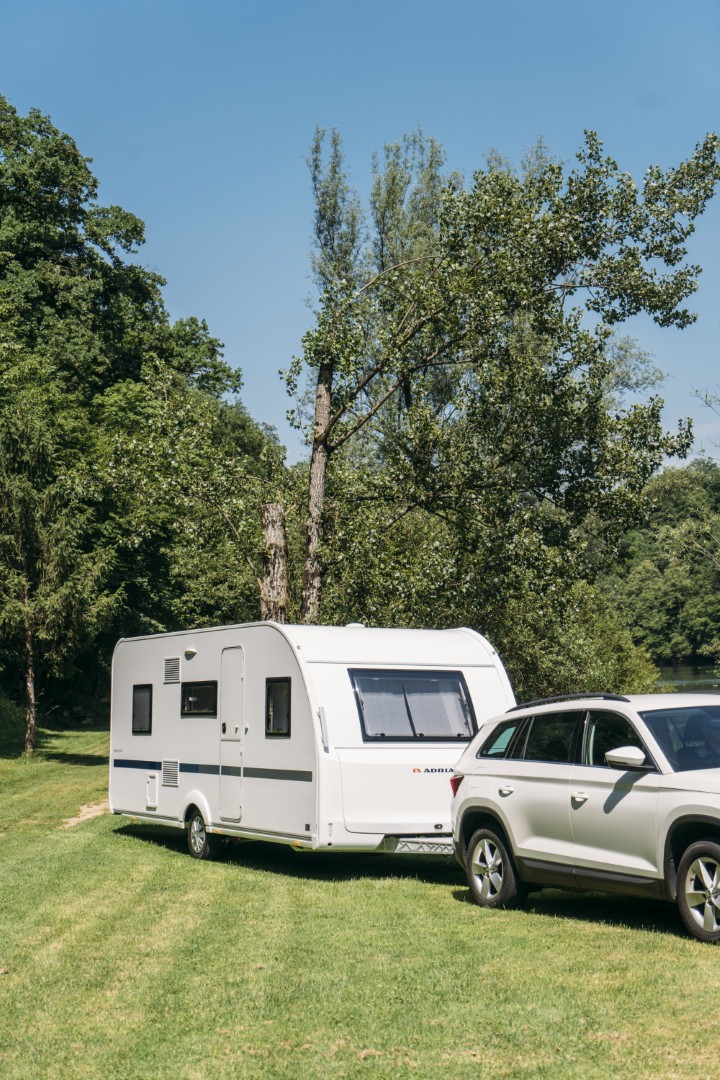

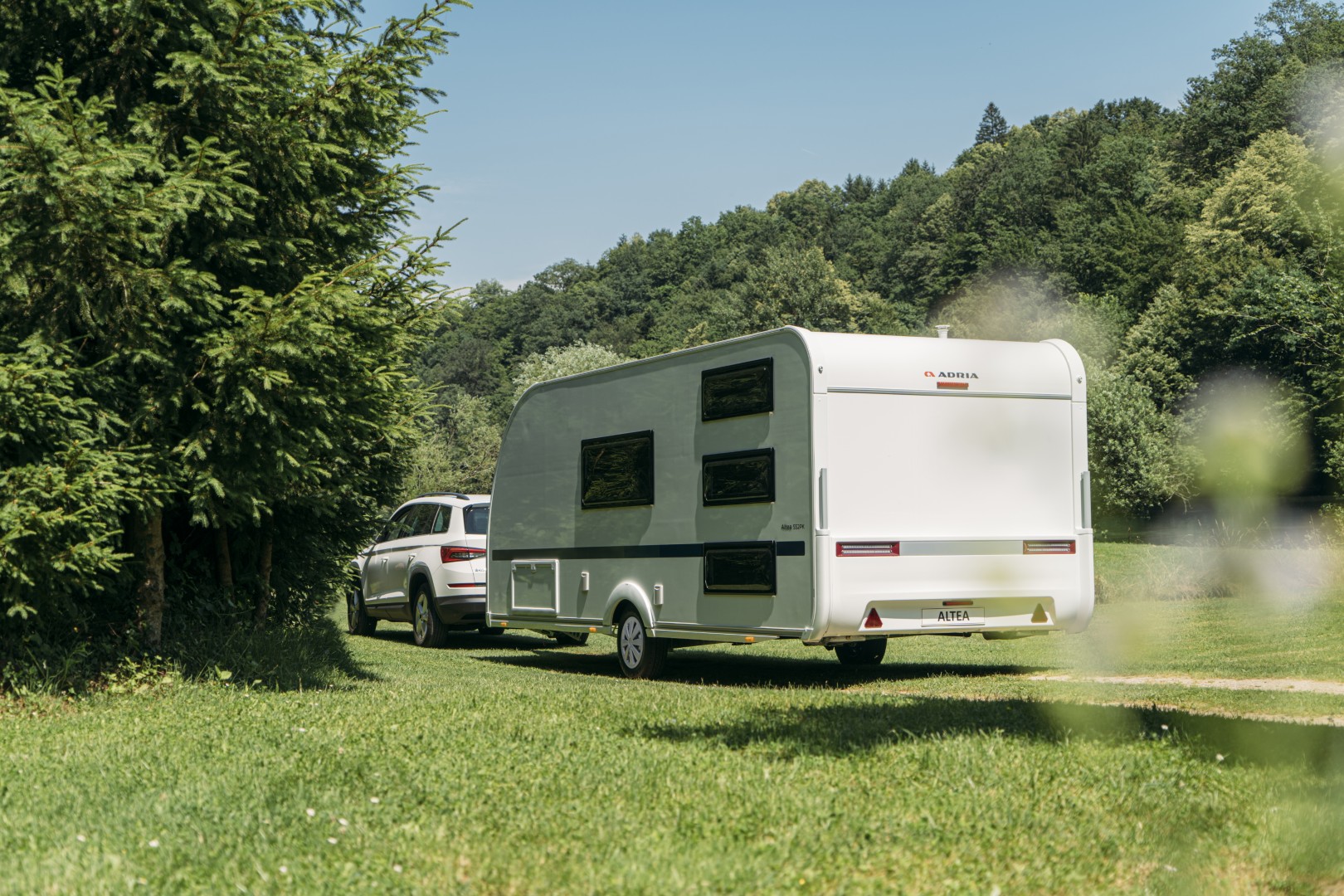

Exterior
Day
Night
day
Modified Image


Textiles

Picture for illustration purposes only. Details may vary.

3 steps to your caravan

1. Layouts(9)

402 PH

Textiles

Mirka
Quentin Brown
Quentin Blue
Savona Grey

402 PH

Total length (including towing bar) (mm) B12

6099 B12

Total width (mm) B15

2296 B15

Mass in running order (MRO, kg) B5

1008 B5

Nr. of berths O1b

4 O1b

Technical data

Dimensions and weights B

Awning perimeter dimensions (body/chassis) (cm)

857/417

Body length (mm)

4637

Ex-Works weight ( kg )

926

Floor, wall and roof insulation thickness (mm)

29/20/25

Floor, wall and roof total thickness (mm)

40/22,9/28,8

Internal height (mm)

1950

Internal length (mm)

3990

Internal width (mm)

2170

Mass in running order (MRO, kg)

1008

Max. technically permissible laden mass (MTPLM) / optional (kg)

1300

Maximum loading weight (kg)

292

Technically possible weight increase (optional MTPLM, kg)

-

Total height (mm)

2580

Total length (including towing bar) (mm)

6099

Total width (mm)

2296

Chassis equipment C

Alloy wheels

O

Chassis type

AL-KO

Coupling device AK

150 V AK 160

Coupling device AKS

O

Drawbar cover

O

Increased MTPLM up to 1500 kg with AKS (Altea)

-

Mud protection

O

Number of axles

1

Reinforced supporting legs

O

Shock absorbers

O

Spare wheel with holder

O

Standard axle

X

Standard supporting legs

X

Steel wheels

X

Third wheel with the real tyre

O

Tyres size

185 R14 C 102

Wheel box insulation

X

Wheel cover insert

O

Wheel trims

X

Body E

Adria windows darker

X

Black-out roller blind with flyscreen on bathroom window

O

Black-out roller blinds with flyscreen on all windows, except in toilet comp.

X

Bodywork of polyester

X

Double gazed front windscreen

X

Entrance door 2-part with window

O

Entrance door 2-part without window

X

Floor insulation Styropor

X

Flyscreen - upper part

O

Flyscreen whole door

O

Front and rear wall lining in thermoformed ABS

X

Gas bottle locker

X

I-shape exterior design

X

Integrated aluminium tent profiles

X

Luggage door on left side (light dimensions, cm)

72 x 28

Luggage door on right side (light dimensions, cm)

-

Movable entrance step

O

Opening windows all

X

Roof light Heki 2

O

Roof light Heki 2 preinstallation

X

Roof light Mini Heki S 40x40 cm

X

Side wall in aluminium

X

Side wall of polyester

-

Side wall skirtings in themoformed ABS

X

Third break light

X

out

-

Interior equipment F

Bed coverlet

O

Blanket

O

Decorative curtains

X

Decorative cushions 4 pcs.

O

Floor carpets

O

Foldable bunk bunk bed above parents bed

-

Liftable headrest and Kaltschaum Set

O

Liftable headrest, Kaltschaum and Bed Coverlet Set

O

Mattress "Kaltschaum"

O

Number of berths

4

Sleeping area, bunk bed (l x w, cm)

-

Sleeping area, central berths (cm)

-

Sleeping area, front berths (cm)

200x137/95

Sleeping area, rear berths (l x w, cm)

189x102/95

Table with wooden profile and telescopic leg

O

Kitchen equipment G

3-flame gas cooker with electric ignition, glass cover and stainless steel sink

X

Drainer

O

Kitchen taps (cold & hot water)

X

Microwave oven

O

Microwave oven preinstallation

X

Refrigerator

190 L

Sink cover/chopping board

O

Bathroom equipment H

Adria Ergobath type

A

Bathroom taps (washing+showering)

-

Foldable washbasin

X

Separate shower cabin with solid door

-

Separate shower faucet

X

Shower curtain

X

Shower tray

X

WC chemical, fixed, passive ventilated

X

WC chemical, turnable, passive ventilated

-

Water installations I

Boiler Truma Therme 5 L

X

Central waste water outlet

X

Fresh water tank with external inlet (l)

50

Waste water tank (l)

O / 25

Electricity J

13-pin socket Jaeger

X

Additional spot lights in sitting area

X

Ambient LED lights below cupboards

O

Awning LED light

X

Battery charger

O / 17A

Ceiling LED lights

X

Main fit switch

X

Main light switch at entrance door

X

Power sockets 230 V

X

Preinstallation for charger with battery box

O

Preinstallation for charger with battery box and external fultifunctional outlet

O

Preinstallation for roof clima device

X

Spot halogen lights

X

TV aerial connector with coaxial cable

X

Transformer 300 W

X

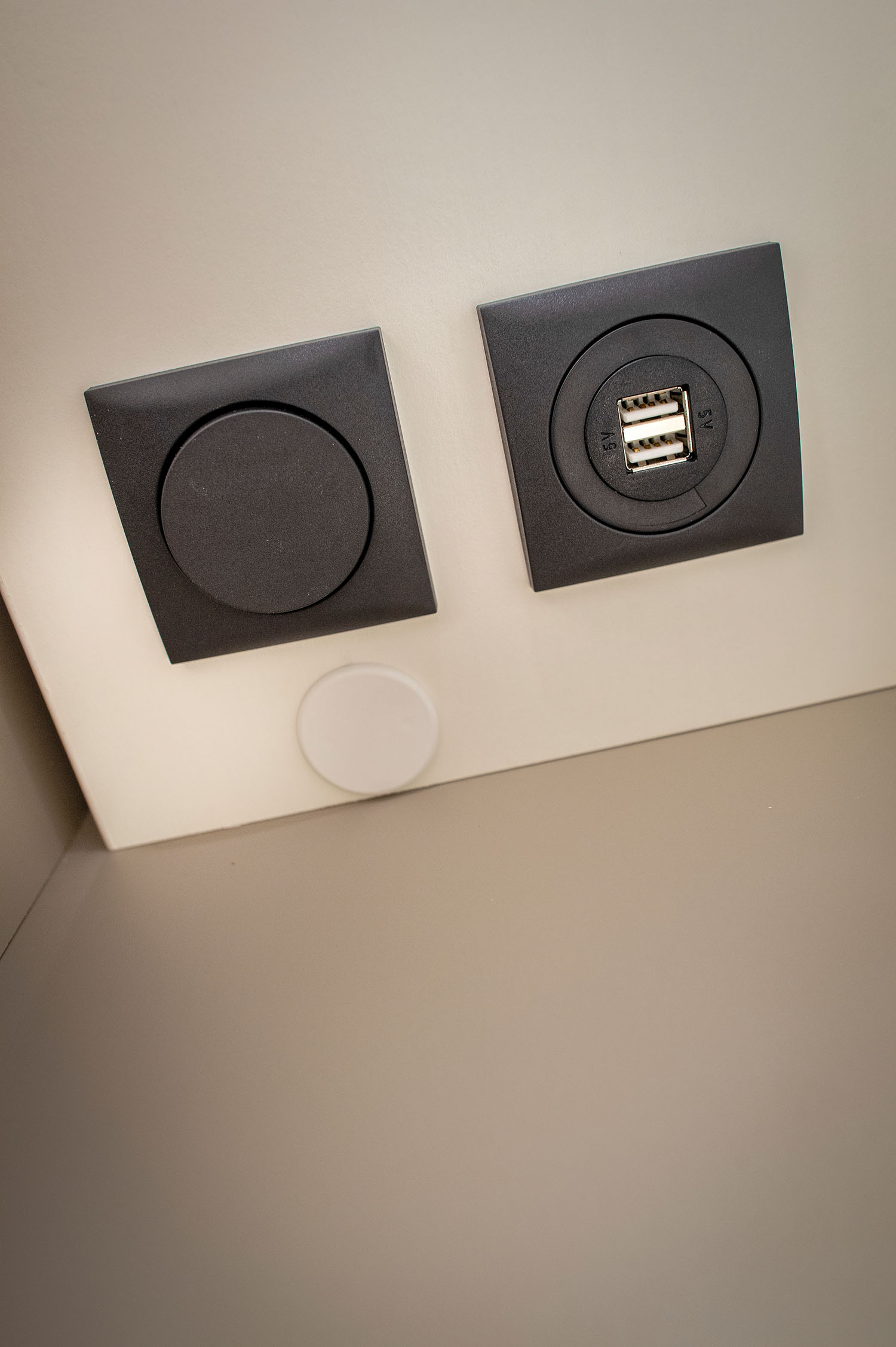

USB switch

X

Heating/air conditioning K

Additional electric heater Truma Ultraheat

O

Electrical floor heating with transformer

O

Gas heating stove Truma S3004

X

Hot-air distribution Trumavent

-

Preinstallation for additional electric heater Truma Ultraheat - preinstallation

X

Preinstallation for air condition

X

Gas L

Gag regulation valve

X

Gas bottle compartment 2 x 11 kg

X

Gas bottle holder

X

Audio/video M

Bluetooth transmitter

O

Loudspeakers with preinstallation for bluetooth transmitter

X

TV holder

O

432 PX

Textiles

Mirka
Quentin Brown
Quentin Blue
Savona Grey

432 PX

Total length (including towing bar) (mm) B12

6430 B12

Total width (mm) B15

2296 B15

Mass in running order (MRO, kg) B5

1062 B5

Nr. of berths O1b

4 O1b

Technical data

Dimensions and weights B

Awning perimeter dimensions (body/chassis) (cm)

890/450

Body length (mm)

4970

Ex-Works weight ( kg )

980

Floor, wall and roof insulation thickness (mm)

29/20/25

Floor, wall and roof total thickness (mm)

40/22,9/28,8

Internal height (mm)

1950

Internal length (mm)

4322

Internal width (mm)

2170

Mass in running order (MRO, kg)

1062

Max. technically permissible laden mass (MTPLM) / optional (kg)

1300

Maximum loading weight (kg)

238

Total height (mm)

2580

Total length (including towing bar) (mm)

6430

Total width (mm)

2296

Chassis equipment C

Alloy wheels

O

Chassis type

AL-KO

Coupling device AK

150 V AK 160

Coupling device AKS

O

Drawbar cover

O

Increased MTPLM up to 1500 kg with AKS (Altea)

-

Mud protection

O

Number of axles

1

Reinforced supporting legs

O

Shock absorbers

O

Spare wheel with holder

O

Standard axle

X

Standard supporting legs

X

Steel wheels

X

Third wheel with the real tyre

O

Tyres size

185 R14 C 102

Wheel box insulation

X

Wheel cover insert

O

Wheel trims

X

Body E

Adria windows darker

X

Black-out roller blind with flyscreen on bathroom window

O

Black-out roller blinds with flyscreen on all windows, except in toilet comp.

X

Bodywork of polyester

X

Double gazed front windscreen

X

Entrance door 2-part with window

O

Entrance door 2-part without window

X

Floor insulation Styropor

X

Flyscreen - upper part

O

Flyscreen whole door

O

Front and rear wall lining in thermoformed ABS

X

Gas bottle locker

X

I-shape exterior design

X

Integrated aluminium tent profiles

X

Luggage door on left side (light dimensions, cm)

105x28

Luggage door on right side (light dimensions, cm)

-

Movable entrance step

O

Opening windows all

X

Roof light Heki 2

O

Roof light Heki 2 preinstallation

X

Roof light Midi Heki 700 x 500 mm

-

Roof light Mini Heki S 40x40 cm

X

Side wall in aluminium

X

Side wall of polyester

-

Side wall skirtings in themoformed ABS

X

Third break light

X

Interior equipment F

Bed coverlet

O

Blanket

O

Decorative curtains

X

Decorative cushions 4 pcs.

O

Floor carpets

O

Foldable bunk bunk bed above parents bed

-

Liftable headrest and Kaltschaum Set

O

Liftable headrest, Kaltschaum and Bed Coverlet Set

O

Mattress "Kaltschaum"

O

Number of berths

4

Sleeping area, bunk bed (l x w, cm)

-

Sleeping area, central berths (cm)

-

Sleeping area, front berths (cm)

200x137/95

Sleeping area, rear berths (l x w, cm)

189x130/95

Table with wooden profile and telescopic leg

O

Kitchen equipment G

3-flame gas cooker with electric ignition, glass cover and stainless steel sink

X

Drainer

O

Kitchen taps (cold & hot water)

X

Microwave oven

O

Microwave oven preinstallation

X

Refrigerator

90 L

Sink cover/chopping board

O

Bathroom equipment H

Adria Ergobath type

A

Bathroom taps (washing+showering)

-

Foldable washbasin

X

Separate shower cabin with solid door

-

Separate shower faucet

X

Shower curtain

X

Shower tray

X

WC chemical, fixed, passive ventilated

X

WC chemical, turnable, passive ventilated

-

Washbasin in bedroom

-

Water installations I

Boiler Truma Therme 5 L

X

Central waste water outlet

X

Fresh water tank with external inlet (l)

50

Waste water tank (l)

O / 25

Electricity J

13-pin socket Jaeger

X

Additional spot lights in sitting area

X

Ambient LED lights below cupboards

O

Awning LED light

X

Battery charger

O / 17A

Ceiling LED lights

X

Main fit switch

X

Main light switch at entrance door

X

Power sockets 230 V

X

Preinstallation for charger with battery box

O

Preinstallation for charger with battery box and external fultifunctional outlet

O

Preinstallation for roof clima device

X

Spot halogen lights

X

TV aerial connector with coaxial cable

X

Transformer 300 W

X

USB switch

X

Heating/air conditioning K

Additional electric heater Truma Ultraheat

O

Electrical floor heating with transformer

O

Gas heating stove Truma S3004

X

Hot-air distribution Trumavent

X

Preinstallation for additional electric heater Truma Ultraheat - preinstallation

X

Preinstallation for air condition

X

Gas L

Gag regulation valve

X

Gas bottle compartment 2 x 11 kg

X

Gas bottle holder

X

Audio/video M

Bluetooth transmitter

O

Loudspeakers with preinstallation for bluetooth transmitter

X

TV holder

O

472 PK

Textiles

Mirka
Quentin Brown
Quentin Blue
Savona Grey

472 PK

Total length (including towing bar) (mm) B12

6784 B12

Total width (mm) B15

2296 B15

Mass in running order (MRO, kg) B5

1097 B5

Nr. of berths O1b

6 O1b

Technical data

Dimensions and weights B

Awning perimeter dimensions (body/chassis) (cm)

925/485

Body length (mm)

5319

Ex-Works weight ( kg )

1015

Floor, wall and roof insulation thickness (mm)

29/20/25

Floor, wall and roof total thickness (mm)

40/22,9/28,8

Internal height (mm)

1950

Internal length (mm)

4672

Internal width (mm)

2170

Mass in running order (MRO, kg)

1097

Max. technically permissible laden mass (MTPLM) / optional (kg)

1300

Maximum loading weight (kg)

203

Technically possible weight increase (optional MTPLM, kg)

1500

Total height (mm)

2580

Total length (including towing bar) (mm)

6784

Total width (mm)

2296

Chassis equipment C

Alloy wheels

O

Chassis type

AL-KO

Coupling device AK

150 V AK 160

Coupling device AKS

O

Drawbar cover

O

Increased MTPLM up to 1500 kg with AKS (Altea)

O

Mud protection

O

Number of axles

1

Reinforced supporting legs

O

Shock absorbers

O

Spare wheel with holder

O

Standard axle

X

Standard supporting legs

X

Steel wheels

X

Third wheel with the real tyre

O

Tyres size

185 R14 C 102

Wheel box insulation

X

Wheel cover insert

O

Wheel trims

X

Body E

Adria windows darker

X

Black-out roller blind with flyscreen on bathroom window

O

Black-out roller blinds with flyscreen on all windows, except in toilet comp.

X

Bodywork of polyester

X

Double gazed front windscreen

X

Entrance door 2-part with window

O

Entrance door 2-part without window

X

Floor insulation Styropor

X

Flyscreen - upper part

O

Flyscreen whole door

O

Front and rear wall lining in thermoformed ABS

X

Gas bottle locker

X

I-shape exterior design

X

Integrated aluminium tent profiles

X

Luggage door on left side (light dimensions, cm)

105x28

Luggage door on right side (light dimensions, cm)

-

Movable entrance step

O

Opening windows all

X

Roof light Heki 2

O

Roof light Heki 2 preinstallation

X

Roof light Midi Heki 700 x 500 mm

-

Roof light Mini Heki S 40x40 cm

X

Side wall in aluminium

X

Side wall of polyester

-

Side wall skirtings in themoformed ABS

X

Third break light

X

Interior equipment F

Bed coverlet

O

Blanket

O

Decorative curtains

X

Decorative cushions 4 pcs.

O

Floor carpets

O

Foldable bunk bunk bed above parents bed

-

Liftable headrest and Kaltschaum Set

O

Liftable headrest, Kaltschaum and Bed Coverlet Set

O

Mattress "Kaltschaum"

O

Number of berths

6

Sleeping area, bunk bed (l x w, cm)

2x 189x67

Sleeping area, central berths (cm)

189x102/95

Sleeping area, front berths (cm)

200x137/95

Sleeping area, rear berths (l x w, cm)

-

Table with wooden profile and telescopic leg

O

Kitchen equipment G

3-flame gas cooker with electric ignition, glass cover and stainless steel sink

X

Drainer

O

Kitchen taps (cold & hot water)

X

Microwave oven

O

Microwave oven preinstallation

X

Refrigerator

90 L

Sink cover/chopping board

O

Bathroom equipment H

Adria Ergobath type

A

Bathroom taps (washing+showering)

-

Foldable washbasin

X

Separate shower cabin with solid door

-

Separate shower faucet

X

Shower curtain

X

Shower tray

X

WC chemical, fixed, passive ventilated

X

WC chemical, turnable, passive ventilated

-

Water installations I

Boiler Truma Therme 5 L

X

Central waste water outlet

X

Fresh water tank with external inlet (l)

50

Waste water tank (l)

O / 25

Electricity J

13-pin socket Jaeger

X

Additional spot lights in sitting area

X

Ambient LED lights below cupboards

O

Awning LED light

X

Battery charger

O / 17A

Ceiling LED lights

X

Main fit switch

X

Main light switch at entrance door

X

Power sockets 230 V

X

Preinstallation for charger with battery box

O

Preinstallation for charger with battery box and external fultifunctional outlet

O

Preinstallation for roof clima device

X

Spot halogen lights

X

TV aerial connector with coaxial cable

X

Transformer 300 W

X

USB switch

X

Heating/air conditioning K

Additional electric heater Truma Ultraheat

O

Electrical floor heating with transformer

O

Gas heating stove Truma S3004

X

Hot-air distribution Trumavent

X

Preinstallation for additional electric heater Truma Ultraheat - preinstallation

X

Preinstallation for air condition

X

Gas L

Gag regulation valve

X

Gas bottle compartment 2 x 11 kg

X

Gas bottle holder

X

Audio/video M

Bluetooth transmitter

O

Loudspeakers with preinstallation for bluetooth transmitter

X

TV holder

O

472 PU

Textiles

Mirka
Quentin Brown
Quentin Blue
Savona Grey

472 PU

Total length (including towing bar) (mm) B12

6785 B12

Total width (mm) B15

2296 B15

Mass in running order (MRO, kg) B5

1087 B5

Nr. of berths O1b

4 O1b

Technical data

Dimensions and weights B

Awning perimeter dimensions (body/chassis) (cm)

925/485

Body length (mm)

5320

Ex-Works weight ( kg )

1005

Floor, wall and roof insulation thickness (mm)

29/20/25

Floor, wall and roof total thickness (mm)

40/22,9/28,8

Internal height (mm)

1950

Internal length (mm)

4672

Internal width (mm)

2170

Mass in running order (MRO, kg)

1087

Max. technically permissible laden mass (MTPLM) / optional (kg)

1300

Maximum loading weight (kg)

213

Technically possible weight increase (optional MTPLM, kg)

1500

Total height (mm)

2580

Total length (including towing bar) (mm)

6785

Total width (mm)

2296

Chassis equipment C

Alloy wheels

O

Chassis type

AL-KO

Coupling device AK

150 V AK 160

Coupling device AKS

O

Drawbar cover

O

Increased MTPLM up to 1500 kg with AKS (Altea)

O

Mud protection

O

Number of axles

1

Reinforced supporting legs

O

Shock absorbers

O

Spare wheel with holder

O

Standard axle

X

Standard supporting legs

X

Steel wheels

X

Third wheel with the real tyre

O

Tyres size

185 R14 C 102

Wheel box insulation

X

Wheel cover insert

O

Wheel trims

X

Body E

Adria windows darker

X

Black-out roller blind with flyscreen on bathroom window

O

Black-out roller blinds with flyscreen on all windows, except in toilet comp.

X

Bodywork of polyester

X

Double gazed front windscreen

X

Entrance door 2-part with window

O

Entrance door 2-part without window

X

Floor insulation Styropor

X

Flyscreen - upper part

O

Flyscreen whole door

O

Front and rear wall lining in thermoformed ABS

X

Gas bottle locker

X

I-shape exterior design

X

Integrated aluminium tent profiles

X

Luggage door on left side (light dimensions, cm)

105x28

Luggage door on right side (light dimensions, cm)

-

Movable entrance step

O

Opening windows all

X

Roof light Heki 2

O

Roof light Heki 2 preinstallation

X

Roof light Midi Heki 700 x 500 mm

-

Roof light Mini Heki S 40x40 cm

X

Side wall in aluminium

X

Side wall of polyester

-

Side wall skirtings in themoformed ABS

X

Third break light

X

Interior equipment F

Bed coverlet

O

Blanket

O

Decorative curtains

X

Decorative cushions 4 pcs.

O

Floor carpets

O

Foldable bunk bunk bed above parents bed

-

Liftable headrest and Kaltschaum Set

O

Liftable headrest, Kaltschaum and Bed Coverlet Set

O

Mattress "Kaltschaum"

O

Number of berths

4

Sleeping area, bunk bed (l x w, cm)

-

Sleeping area, central berths (cm)

-

Sleeping area, front berths (cm)

200x137/95

Sleeping area, rear berths (l x w, cm)

211x144/123

Table with wooden profile and telescopic leg

O

Kitchen equipment G

3-flame gas cooker with electric ignition, glass cover and stainless steel sink

X

Drainer

O

Kitchen taps (cold & hot water)

X

Microwave oven

O

Microwave oven preinstallation

X

Refrigerator

90 L

Sink cover/chopping board

O

Bathroom equipment H

Adria Ergobath type

A

Bathroom taps (washing+showering)

-

Foldable washbasin

X

Separate shower cabin with solid door

-

Separate shower faucet

X

Shower curtain

X

Shower tray

X

WC chemical, fixed, passive ventilated

X

WC chemical, turnable, passive ventilated

-

Water installations I

Boiler Truma Therme 5 L

X

Central waste water outlet

X

Fresh water tank with external inlet (l)

50

Waste water tank (l)

O / 25

Electricity J

13-pin socket Jaeger

X

Additional spot lights in sitting area

X

Ambient LED lights below cupboards

O

Awning LED light

X

Battery charger

O / 17A

Ceiling LED lights

X

Main fit switch

X

Main light switch at entrance door

X

Power sockets 230 V

X

Preinstallation for charger with battery box

O

Preinstallation for charger with battery box and external fultifunctional outlet

O

Preinstallation for roof clima device

X

Spot halogen lights

X

TV aerial connector with coaxial cable

X

Transformer 300 W

X

USB switch

X

Heating/air conditioning K

Additional electric heater Truma Ultraheat

O

Electrical floor heating with transformer

O

Gas heating stove Truma S3004

X

Hot-air distribution Trumavent

X

Preinstallation for additional electric heater Truma Ultraheat - preinstallation

X

Preinstallation for air condition

X

Gas L

Gag regulation valve

X

Gas bottle compartment 2 x 11 kg

X

Gas bottle holder

X

Audio/video M

Bluetooth transmitter

O

Loudspeakers with preinstallation for bluetooth transmitter

X

TV holder

O

492 LU

Textiles

Mirka
Quentin Brown
Quentin Blue
Savona Grey

492 LU

Total length (including towing bar) (mm) B12

6964 B12

Total width (mm) B15

2296 B15

Mass in running order (MRO, kg) B5

1142 B5

Nr. of berths O1b

4 O1b

Technical data

Dimensions and weights B

Awning perimeter dimensions (body/chassis) (cm)

946/506

Body length (mm)

5530

Ex-Works weight ( kg )

1060

Floor, wall and roof insulation thickness (mm)

29/20/25

Floor, wall and roof total thickness (mm)

40/22,9/28,8

Internal height (mm)

1950

Internal length (mm)

4882

Internal width (mm)

2170

Mass in running order (MRO, kg)

1142

Max. technically permissible laden mass (MTPLM) / optional (kg)

1500

Maximum loading weight (kg)

358

Total height (mm)

2580

Total length (including towing bar) (mm)

6964

Total width (mm)

2296

Chassis equipment C

Alloy wheels

O

Chassis type

AL-KO

Coupling device AK

150 V AK 160

Coupling device AKS

O

Drawbar cover

O

Increased MTPLM up to 1500 kg with AKS (Altea)

-

Mud protection

O

Number of axles

1

Reinforced supporting legs

X

Shock absorbers

O

Spare wheel with holder

O

Standard axle

X

Standard supporting legs

-

Steel wheels

X

Third wheel with the real tyre

O

Tyres size

185 R14 C 102

Wheel box insulation

X

Wheel cover insert

O

Wheel trims

X

Body E

Adria windows darker

X

Black-out roller blind with flyscreen on bathroom window

O

Black-out roller blinds with flyscreen on all windows, except in toilet comp.

X

Bodywork of polyester

X

Double gazed front windscreen

X

Entrance door 2-part with window

O

Entrance door 2-part without window

X

Floor insulation Styropor

X

Flyscreen - upper part

O

Flyscreen whole door

O

Front and rear wall lining in thermoformed ABS

X

Gas bottle locker

X

I-shape exterior design

X

Integrated aluminium tent profiles

X

Luggage door on left side (light dimensions, cm)

105x28

Luggage door on right side (light dimensions, cm)

-

Movable entrance step

O

Opening windows all

X

Roof light Heki 2

O

Roof light Heki 2 preinstallation

X

Roof light Midi Heki 700 x 500 mm

-

Roof light Mini Heki S 40x40 cm

X

Side wall in aluminium

X

Side wall of polyester

-

Side wall skirtings in themoformed ABS

X

Third break light

X

Interior equipment F

Bed coverlet

O

Blanket

O

Decorative curtains

X

Decorative cushions 4 pcs.

O

Floor carpets

O

Foldable bunk bunk bed above parents bed

-

Liftable headrest and Kaltschaum Set

O

Liftable headrest, Kaltschaum and Bed Coverlet Set

O

Mattress "Kaltschaum"

O

Number of berths

4

Sleeping area, bunk bed (l x w, cm)

-

Sleeping area, central berths (cm)

-

Sleeping area, front berths (cm)

200x81, 186x81 or 200/186x211

Sleeping area, rear berths (l x w, cm)

211x109

Table with wooden profile and telescopic leg

O

Kitchen equipment G

3-flame gas cooker with electric ignition, glass cover and stainless steel sink

X

Drainer

O

Kitchen taps (cold & hot water)

X

Microwave oven

O

Microwave oven preinstallation

X

Refrigerator

90 L

Sink cover/chopping board

O

Bathroom equipment H

Adria Ergobath type

A

Bathroom taps (washing+showering)

-

Foldable washbasin

X

Separate shower cabin with solid door

-

Separate shower faucet

X

Shower curtain

X

Shower tray

X

WC chemical, fixed, passive ventilated

X

WC chemical, turnable, passive ventilated

-

Water installations I

Boiler Truma Therme 5 L

X

Central waste water outlet

X

Fresh water tank with external inlet (l)

50 L

Waste water tank (l)

O / 25

Electricity J

13-pin socket Jaeger

X

Additional spot lights in sitting area

X

Ambient LED lights below cupboards

O

Awning LED light

X

Battery charger

O / 8A

Ceiling LED lights

X

Main fit switch

X

Main light switch at entrance door

X

Power sockets 230 V

X

Preinstallation for charger with battery box

O

Preinstallation for charger with battery box and external fultifunctional outlet

O

Preinstallation for roof clima device

X

Spot halogen lights

X

TV aerial connector with coaxial cable

X

Transformer 300 W

X

USB switch

X

Heating/air conditioning K

Additional electric heater Truma Ultraheat

O

Electrical floor heating with transformer

O

Gas heating stove Truma S3004

X

Hot-air distribution Trumavent

X

Preinstallation for additional electric heater Truma Ultraheat - preinstallation

X

Preinstallation for air condition

X

Gas L

Gag regulation valve

X

Gas bottle compartment 2 x 11 kg

X

Gas bottle holder

X

Audio/video M

Bluetooth transmitter

O

Loudspeakers with preinstallation for bluetooth transmitter

X

TV holder

O

4FOUR 362 LH

Textiles

Mirka
Quentin Brown
Quentin Blue
Savona Grey

4FOUR 362 LH

Total length (including towing bar) (mm) B12

5695 B12

Total width (mm) B15

2296 B15

Mass in running order (MRO, kg) B5

1052 B5

Nr. of berths O1b

3 O1b

Technical data

Dimensions and weights B

Awning perimeter dimensions (body/chassis) (cm)

822/382

Body length (mm)

4280

Ex-Works weight ( kg )

970

Floor, wall and roof insulation thickness (mm)

29/20/25

Floor, wall and roof total thickness (mm)

40/22,9/28,8

Internal height (mm)

1950

Internal length (mm)

3640

Internal width (mm)

2170

Mass in running order (MRO, kg)

1052

Max. technically permissible laden mass (MTPLM) / optional (kg)

1300

Maximum loading weight (kg)

248

Total height (mm)

2580

Total length (including towing bar) (mm)

5695

Total width (mm)

2296

Chassis equipment C

Alloy wheels

O

Chassis type

AL-KO

Coupling device AK

X

Coupling device AKS

O

Drawbar cover

O

Mud protection

O

Number of axles

1

Reinforced supporting legs

O

Shock absorbers

O

Spare wheel with holder

O

Standard axle

X

Standard supporting legs

X

Steel wheels

X

Third wheel with the real tyre

O

Wheel box insulation

X

Wheel cover insert

O

Wheel trims

X

Body E

Adria windows darker

X

Black-out roller blind with flyscreen on bathroom window

O

Black-out roller blinds with flyscreen on all windows, except in toilet comp.

X

Bodywork of polyester

X

Double gazed front windscreen

X

Entrance door 1-part without window

X

Floor insulation Styropor

X

Flyscreen whole door

X

Front and rear wall lining in thermoformed ABS

X

Gas bottle locker

X

I-shape exterior design

X

Integrated aluminium tent profiles

X

Luggage door on left side (light dimensions, cm)

72x27

Luggage door on right side (light dimensions, cm)

72x27

Movable entrance step

O

Opening windows all

X

Panoramic window for caravans

X

Roof light Mini Heki S 40x40 cm

X

Side wall in aluminium

-

Side wall of polyester

X

Side wall skirtings in aluminium

-

Side wall skirtings in themoformed ABS

X

Third break light

X

Interior equipment F

Decorative curtains

X

Decorative cushions 4 pcs.

O

Decorative pillows (2 pcs) 60x50cm

O

Floor carpets

O

Foldable bunk bunk bed above parents bed

X

Kitchen window lining with LED lightening

X

Liftable table

X

Number of berths

3 (+1op Plus P)

Sleeping area, front berths (cm)

183x212/204x71, 183x71

Kitchen equipment G

3-flame gas cooker with electric ignition, glass cover and stainless steel sink

X

Drainer

O

Kitchen taps (cold & hot water)

X

Refrigerator

140 L

Sink cover/chopping board

O

Bathroom equipment H

Adria Ergobath type

A

Foldable washbasin

X

Shower curtain

X

Shower tray

X

WC chemical, fixed, passive ventilated

X

Water installations I

Boiler Truma Therme 5 L

X

Central waste water outlet

X

Fresh water tank with external inlet (l)

50

Waste water tank (l)

O

Electricity J

13-pin socket Jaeger

X

Additional spot lights in sitting area

X

Ambient LED lights below cupboards

X

Ambient LED lights on corner elements

X

Awning LED light

X

Battery charger with battery box

O

Ceiling LED lights

X

Control panel

X

Main fit switch

X

Main light switch at entrance door

X

Power sockets 230 V

X

Spot LED lights

X

TV aerial connector with coaxial cable

X

Transformer 400 W

X

USB and AUX socket (tablet/smart phone preinstallation)

X

USB switch

X

Heating/air conditioning K

Additional electric heater Truma Ultraheat

O

Electrical floor heating with transformer

O

Gas heating stove Truma S3004

X

Hot-air distribution Trumavent

O

Preinstallation for additional electric heater Truma Ultraheat - preinstallation

X

Preinstallation for air condition

X

Gas L

Gag regulation valve

X

Gas bottle compartment 2 x 11 kg

X

Gas bottle holder

X

Audio/video M

Bluetooth transmitter

O

Car radio with CD and USB player

O

Loudspeakers with preinstallation for bluetooth transmitter

X

Sound system Bose

O

TV holder

O

542 PH

Textiles

Mirka
Quentin Brown
Quentin Blue
Savona Grey

542 PH

Total length (including towing bar) (mm) B12

7470 B12

Total width (mm) B15

2296 B15

Mass in running order (MRO, kg) B5

1185 B5

Nr. of berths O1b

4 O1b

Technical data

Dimensions and weights B

Body length (mm)

6020

Floor, wall and roof insulation thickness (mm)

29/20/25

Floor, wall and roof total thickness (mm)

40/22,9/28,8

Mass in running order (MRO, kg)

1185

Max. technically permissible laden mass (MTPLM) / optional (kg)

1500

Maximum loading weight (kg)

315

Total height (mm)

2580

Total length (including towing bar) (mm)

7470

Total width (mm)

2296

Chassis equipment C

Alloy wheels

O

Chassis type

AL-KO

Coupling device AK

150 V AK 160

Coupling device AKS

O

Drawbar cover

O

Increased MTPLM up to 1500 kg with AKS (Altea)

-

Mud protection

O

Number of axles

1

Reinforced supporting legs

X

Shock absorbers

O

Spare wheel with holder

O

Standard axle

X

Standard supporting legs

-

Steel wheels

X

Third wheel with the real tyre

O

Tyres size

185 R14 C 102

Wheel box insulation

X

Wheel cover insert

O

Wheel trims

X

Body E

Adria windows darker

X

Black-out roller blind with flyscreen on bathroom window

O

Black-out roller blinds with flyscreen on all windows, except in toilet comp.

X

Bodywork of polyester

X

Double gazed front windscreen

X

Entrance door 2-part with window

O

Entrance door 2-part without window

X

Exterior graphic design labels

X

Floor insulation Styropor

X

Flyscreen - upper part

O

Flyscreen whole door

O

Front and rear wall lining in thermoformed ABS

X

Gas bottle locker

X

I-shape exterior design

X

Integrated aluminium tent profiles

X

Luggage door on left side (light dimensions, cm)

-

Luggage door on right side (light dimensions, cm)

?

Movable entrance step

O

Opening windows all

X

Roof light Heki 2

O

Roof light Heki 2 preinstallation

X

Roof light Midi Heki 700 x 500 mm

-

Roof light Mini Heki S 40x40 cm

X

Side wall in aluminium

X

Side wall of polyester

-

Side wall skirtings in themoformed ABS

X

Third break light

X

Interior equipment F

Bed coverlet

O

Blanket

O

Decorative curtains

X

Decorative cushions 4 pcs.

O

Floor carpets

O

Foldable bunk bunk bed above parents bed

-

Liftable headrest and Kaltschaum Set

O

Liftable headrest, Kaltschaum and Bed Coverlet Set

O

Mattress "Kaltschaum"

O

Number of berths

4

Sleeping area, bunk bed (l x w, cm)

-

Sleeping area, central berths (cm)

?

Sleeping area, front berths (cm)

-

Sleeping area, rear berths (l x w, cm)

?

Table with wooden profile and telescopic leg

O

Kitchen equipment G

3-flame gas cooker with electric ignition, glass cover and stainless steel sink

X

Drainer

O

Kitchen taps (cold & hot water)

X

Microwave oven

O

Microwave oven preinstallation

X

Refrigerator

190 L

Sink cover/chopping board

O

Bathroom equipment H

Adria Ergobath type

A

Bathroom taps (washing+showering)

-

Foldable washbasin

X

Separate shower cabin with solid door

-

Separate shower faucet

X

Shower curtain

X

Shower tray

X

WC chemical, fixed, passive ventilated

X

WC chemical, turnable, passive ventilated

-

Water installations I

Boiler Truma Therme 5 L

X

Central waste water outlet

X

Fresh water tank with external inlet (l)

50 L

Waste water tank (l)

O / 25

Electricity J

13-pin socket Jaeger

X

Additional spot lights in sitting area

X

Ambient LED lights below cupboards

O

Awning LED light

X

Battery charger

O / 17A

Ceiling LED lights

X

Main fit switch

X

Main light switch at entrance door

X

Power sockets 230 V

X

Preinstallation for charger with battery box

O

Preinstallation for charger with battery box and external fultifunctional outlet

O

Preinstallation for roof clima device

X

Spot halogen lights

X

TV aerial connector with coaxial cable

X

Transformer 300 W

X

USB switch

X

Heating/air conditioning K

Additional electric heater Truma Ultraheat

O

Electrical floor heating with transformer

O

Gas heating stove Truma S3004

X

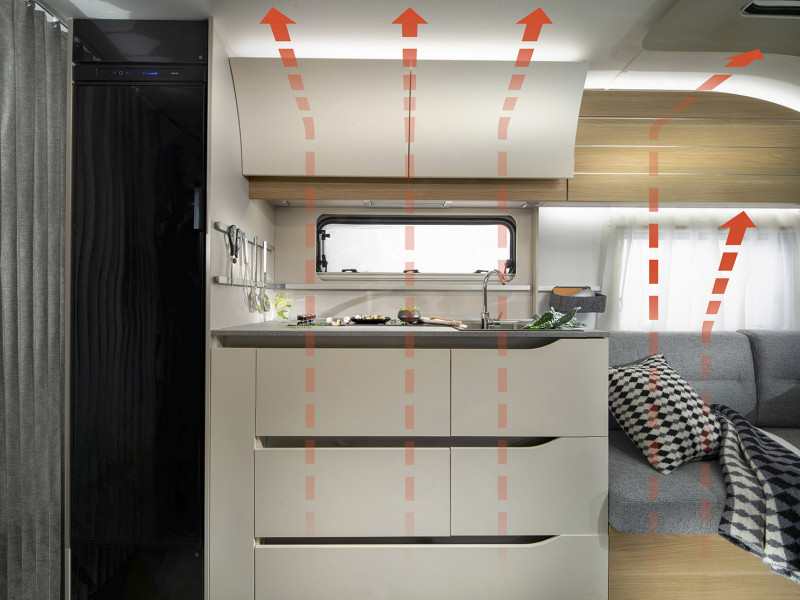

Hot-air distribution Trumavent

X

Preinstallation for additional electric heater Truma Ultraheat - preinstallation

X

Preinstallation for air condition

X

Gas L

Gag regulation valve

X

Gas bottle compartment 2 x 11 kg

X

Gas bottle holder

X

Audio/video M

Bluetooth transmitter

O

Loudspeakers with preinstallation for bluetooth transmitter

X

TV holder

O

542 PK

Textiles

Mirka
Quentin Brown
Quentin Blue
Savona Grey

542 PK

Total length (including towing bar) (mm) B12

7434 B12

Total width (mm) B15

2296 B15

Mass in running order (MRO, kg) B5

1235 B5

Nr. of berths O1b

6 O1b

Technical data

Dimensions and weights B

Awning perimeter dimensions (body/chassis) (cm)

995/555

Body length (mm)

6020

Ex-Works weight ( kg )

1153

Floor, wall and roof insulation thickness (mm)

29/20/25

Floor, wall and roof total thickness (mm)

40/22,9/28,8

Internal height (mm)

1950

Internal length (mm)

5372

Internal width (mm)

2170

Mass in running order (MRO, kg)

1235

Max. technically permissible laden mass (MTPLM) / optional (kg)

1500

Maximum loading weight (kg)

265

Technically possible weight increase (optional MTPLM, kg)

1700

Total height (mm)

2580

Total length (including towing bar) (mm)

7434

Total width (mm)

2296

Chassis equipment C

Alloy wheels

O

Chassis type

AL-KO

Coupling device AK

150 V AK 160

Coupling device AKS

O

Drawbar cover

O

Increased MTPLM to 1700 kg with AKS and steel wheels

O

Increased MTPLM to 1700kg with AKS and aloy wheels

O

Increased MTPLM up to 1500 kg with AKS (Altea)

-

Mud protection

O

Number of axles

1

Reinforced supporting legs

X

Shock absorbers

O

Spare wheel with holder

O

Spare whell for 1700 kg chassis

O

Standard axle

X

Standard supporting legs

-

Steel wheels

X

Third wheel with the real tyre

O

Tyres size

185 R14 C 102

Wheel box insulation

X

Wheel cover insert

O

Wheel trims

X

Body E

Adria windows darker

X

Black-out roller blind with flyscreen on bathroom window

O

Black-out roller blinds with flyscreen on all windows, except in toilet comp.

X

Bodywork of polyester

X

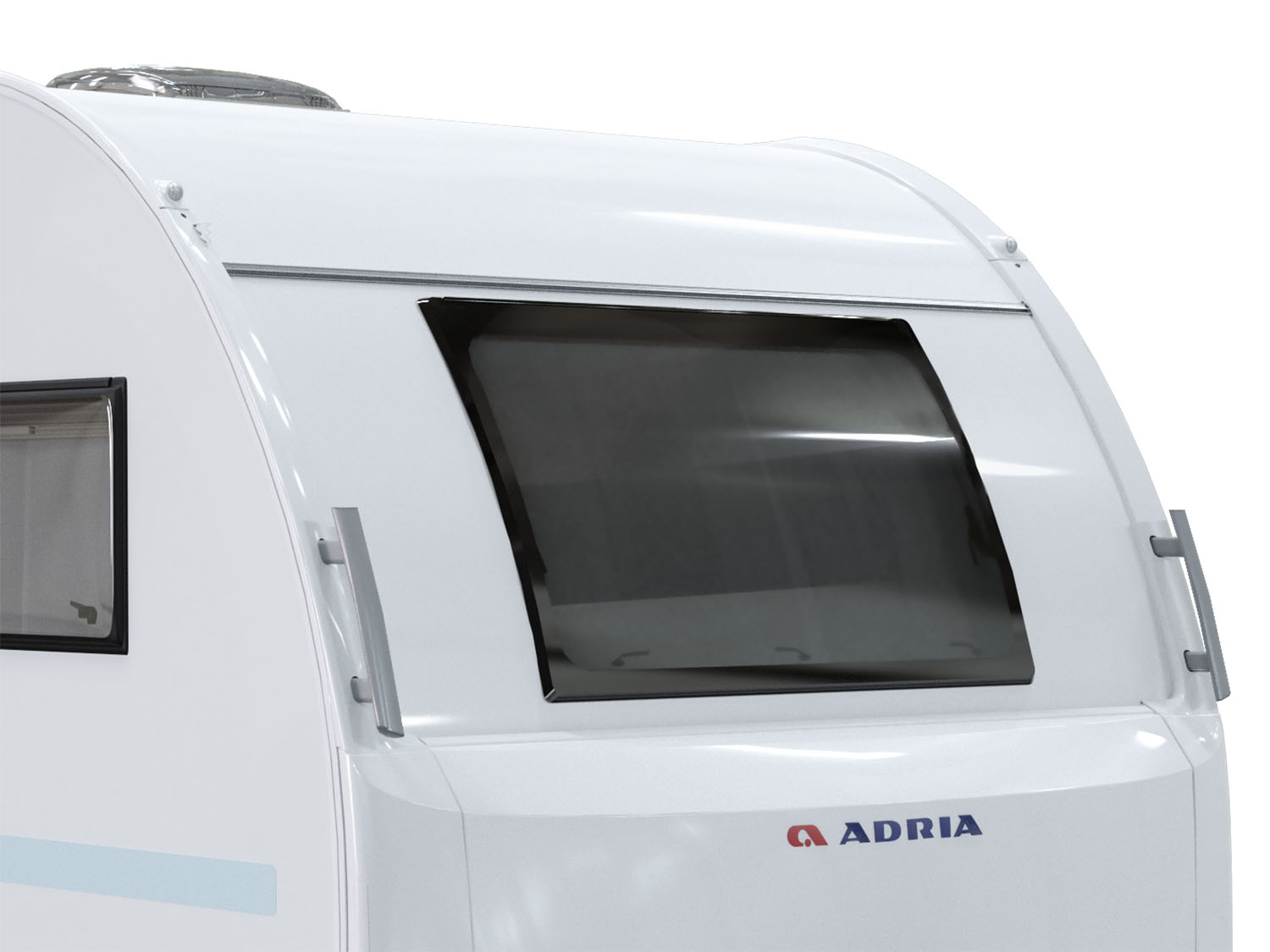

Double gazed front windscreen

X

Entrance door 2-part with window

O

Entrance door 2-part without window

X

Exterior graphic design labels

X

Floor insulation Styropor

X

Flyscreen - upper part

O

Flyscreen whole door

O

Front and rear wall lining in thermoformed ABS

X

Gas bottle locker

X

I-shape exterior design

X

Integrated aluminium tent profiles

X

Luggage door on left side (light dimensions, cm)

105x28

Movable entrance step

O

Opening windows all

X

Roof light Heki 2

O

Roof light Heki 2 preinstallation

X

Roof light Midi Heki 700 x 500 mm

-

Roof light Mini Heki S 40x40 cm

X

Side wall in aluminium

X

Side wall of polyester

-

Side wall skirtings in themoformed ABS

X

Third break light

X

Interior equipment F

Bed coverlet

O

Blanket

O

Decorative curtains

X

Decorative cushions 4 pcs.

O

Floor carpets

O

Kids Adventure Pack

O ( only Truma P )

Liftable headrest and Kaltschaum Set

O

Liftable headrest, Kaltschaum and Bed Coverlet Set

O

Liftable table with telescopic leg in "U" sitting group

-

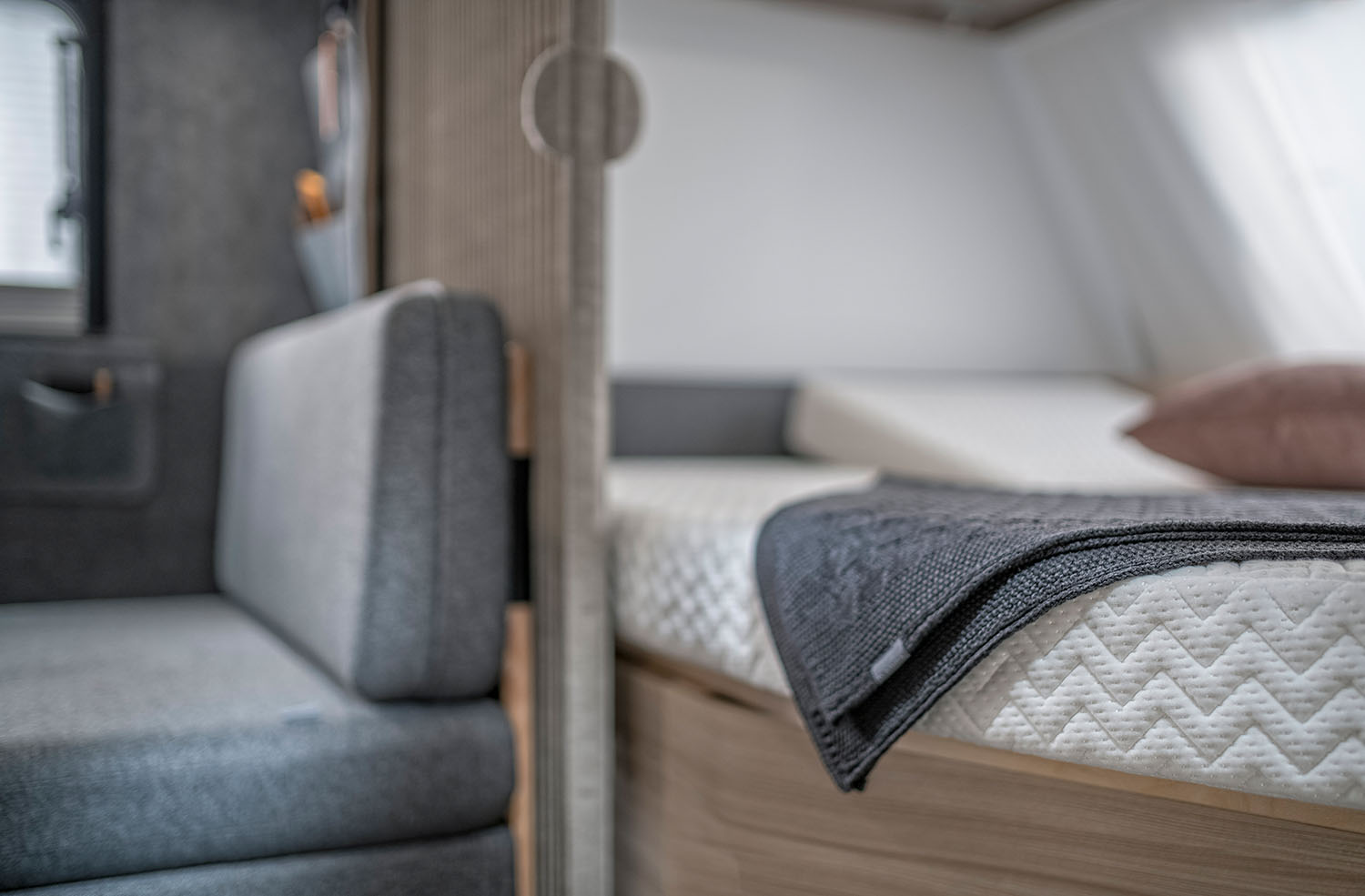

Mattress "Kaltschaum"

O

Number of berths

6 (+ 1 op.)

Play set

O ( only Truma P )

Sleeping area, bunk bed (l x w, cm)

2x 196x70, ( 185x60 op.)

Sleeping area, central berths (cm)

196x102

Sleeping area, front berths (cm)

211x137/95

Sleeping area, rear berths (l x w, cm)

-

Table with wooden profile and telescopic leg

O

Kitchen equipment G

3-flame gas cooker with electric ignition, glass cover and stainless steel sink

X

Drainer

O

Kitchen taps (cold & hot water)

X

Microwave oven

O

Microwave oven preinstallation

X

Refrigerator

190 L

Sink cover/chopping board

O

Bathroom equipment H

Adria Ergobath type

A

Bathroom taps (washing+showering)

-

Foldable washbasin

X

Separate shower cabin with solid door

-

Separate shower faucet

X

Shower curtain

X

Shower tray

X

WC chemical, fixed, passive ventilated

X

WC chemical, turnable, passive ventilated

-

Water installations I

Boiler Truma Therme 5 L

X

Central waste water outlet

X

Fresh water tank with external inlet (l)

50

Waste water tank (l)

O / 25

Electricity J

13-pin socket Jaeger

X

Additional spot lights in sitting area

X

Ambient LED lights below cupboards

O

Awning LED light

X

Battery charger

O / 17A

Ceiling LED lights

X

Main fit switch

X

Main light switch at entrance door

X

Power sockets 230 V

X

Preinstallation for charger with battery box

O

Preinstallation for charger with battery box and external fultifunctional outlet

O

Preinstallation for roof clima device

X

Spot halogen lights

X

TV aerial connector with coaxial cable

X

Transformer 300 W

X

USB switch

X

Heating/air conditioning K

Additional electric heater Truma Ultraheat

O

Electrical floor heating with transformer

O

Gas heating stove Truma S3004

X

Hot-air distribution Trumavent

X

Preinstallation for additional electric heater Truma Ultraheat - preinstallation

X

Preinstallation for air condition

X

Gas L

Gag regulation valve

X

Gas bottle compartment 2 x 11 kg

X

Gas bottle holder

X

Audio/video M

Bluetooth transmitter

O

Loudspeakers with preinstallation for bluetooth transmitter

X

TV holder

O

552 PK

Textiles

Mirka
Quentin Brown
Quentin Blue
Savona Grey

552 PK

Total length (including towing bar) (mm) B12

7610 B12

Total width (mm) B15

2296 B15

Mass in running order (MRO, kg) B5

1228 B5

Nr. of berths O1b

6 O1b

Technical data

Dimensions and weights B

Awning perimeter dimensions (body/chassis) (cm)

1009/569

Body length (mm)

6159

Ex-Works weight ( kg )

1146

Floor, wall and roof insulation thickness (mm)

29/20/25

Floor, wall and roof total thickness (mm)

40/22,9/28,8

Internal height (mm)

1950

Internal length (mm)

5512

Internal width (mm)

2170

Mass in running order (MRO, kg)

1228

Max. technically permissible laden mass (MTPLM) / optional (kg)

1500

Maximum loading weight (kg)

272

Technically possible weight increase (optional MTPLM, kg)

1700

Total height (mm)

2580

Total length (including towing bar) (mm)

7610

Total width (mm)

2296

Chassis equipment C

Alloy wheels

O

Chassis type

AL-KO

Coupling device AK

150 V AK 160

Coupling device AKS

O

Drawbar cover

O

Increased MTPLM to 1700 kg with AKS and steel wheels

O

Increased MTPLM to 1700kg with AKS and aloy wheels

O

Increased MTPLM up to 1500 kg with AKS (Altea)

-

Mud protection

O

Number of axles

1

Reinforced supporting legs

X

Shock absorbers

O

Spare wheel with holder

O

Spare whell for 1700 kg chassis

O

Standard axle

X

Standard supporting legs

-

Steel wheels

X

Third wheel with the real tyre

O

Tyres size

185 R14 C 102

Wheel box insulation

X

Wheel cover insert

O

Wheel trims

X

Body E

Adria windows darker

X

Black-out roller blind with flyscreen on bathroom window

O

Black-out roller blinds with flyscreen on all windows, except in toilet comp.

X

Bodywork of polyester

X

Double gazed front windscreen

X

Entrance door 2-part with window

O

Entrance door 2-part without window

X

Exterior graphic design labels

X

Floor insulation Styropor

X

Flyscreen - upper part

O

Flyscreen whole door

O

Front and rear wall lining in thermoformed ABS

X

Gas bottle locker

X

I-shape exterior design

X

Integrated aluminium tent profiles

X

Luggage door on left side (light dimensions, cm)

105 x 28

Luggage door on right side (light dimensions, cm)

-

Movable entrance step

O

Opening windows all

X

Roof light Heki 2

O

Roof light Heki 2 preinstallation

X

Roof light Midi Heki 700 x 500 mm

-

Roof light Mini Heki S 40x40 cm

X

Side wall in aluminium

X

Side wall of polyester

-

Side wall skirtings in themoformed ABS

X

Third break light

X

Interior equipment F

Bed coverlet

O

Blanket

O

Decorative curtains

X

Decorative cushions 4 pcs.

O

Floor carpets

O

Foldable bunk bunk bed above parents bed

-

Kids Adventure Pack

O ( only Truma P )

Liftable headrest and Kaltschaum Set

O

Liftable headrest, Kaltschaum and Bed Coverlet Set

O

Mattress "Kaltschaum"

O

Number of berths

6 (+1 op.)

Play set

O ( only Truma P )

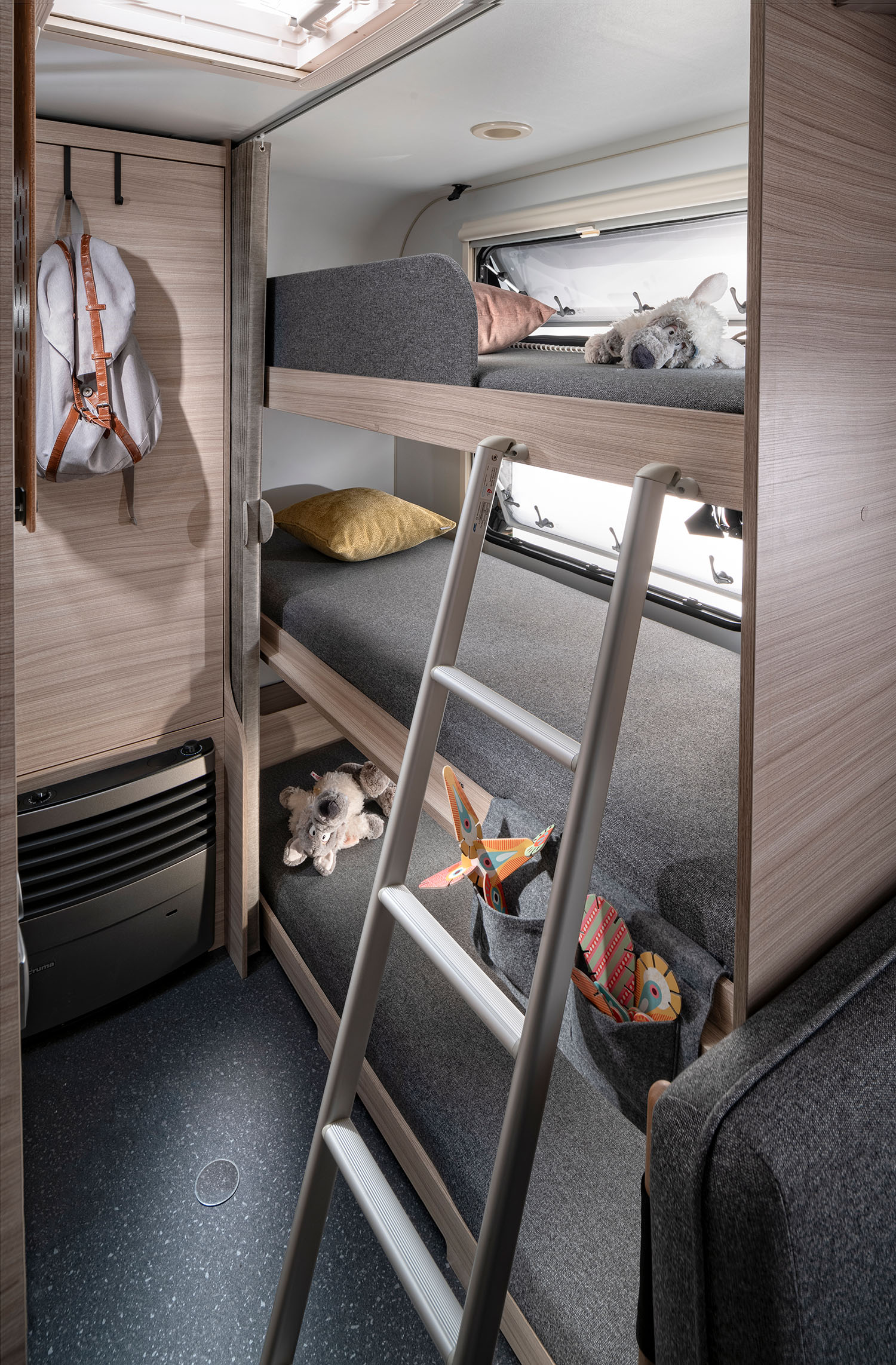

Sleeping area, bunk bed (l x w, cm)

2x 196x70, ( 185x60 op.)

Sleeping area, central berths (cm)

200x102/95

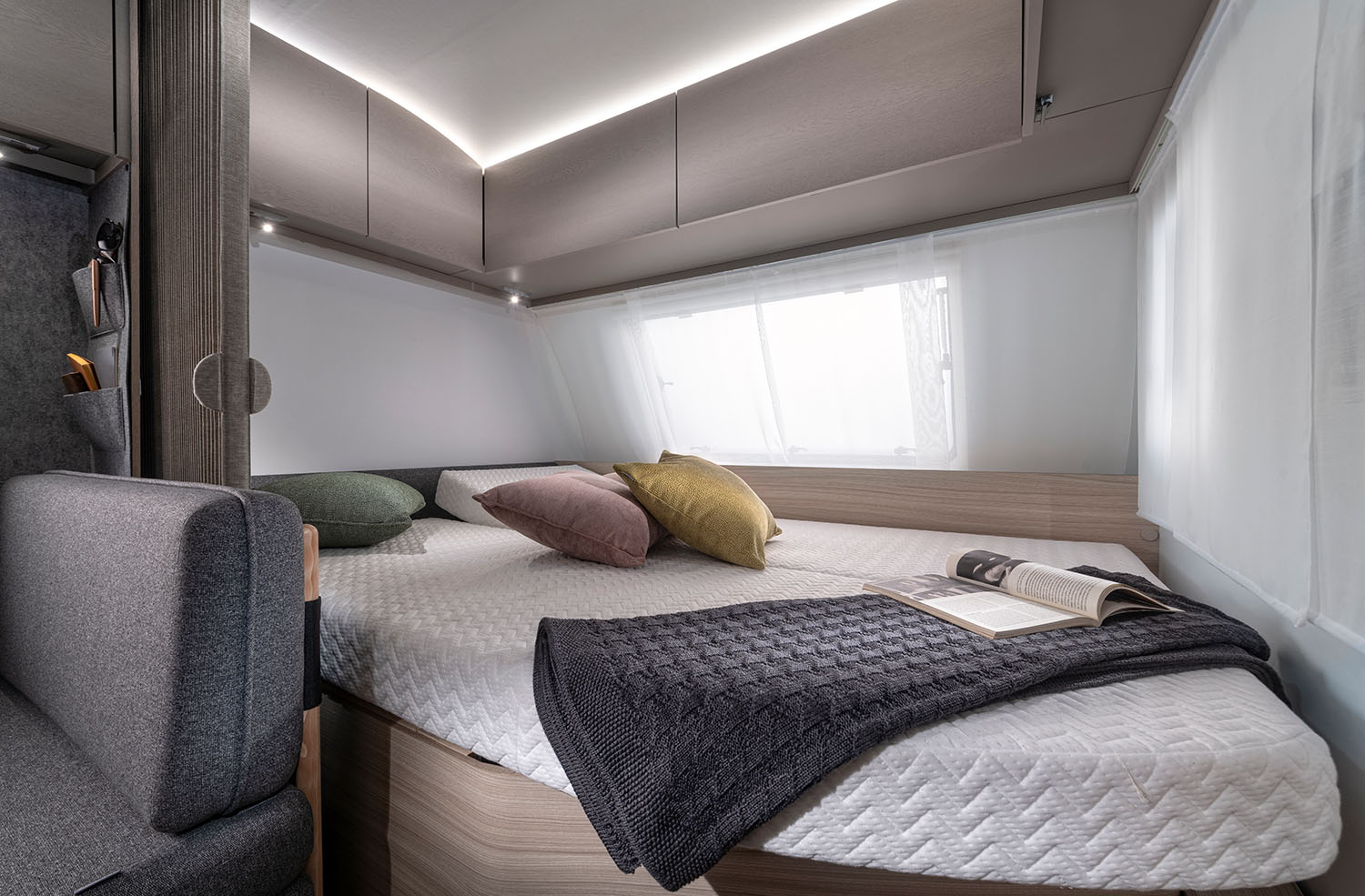

Sleeping area, front berths (cm)

200x137/95

Sleeping area, rear berths (l x w, cm)

-

Table with wooden profile and telescopic leg

O

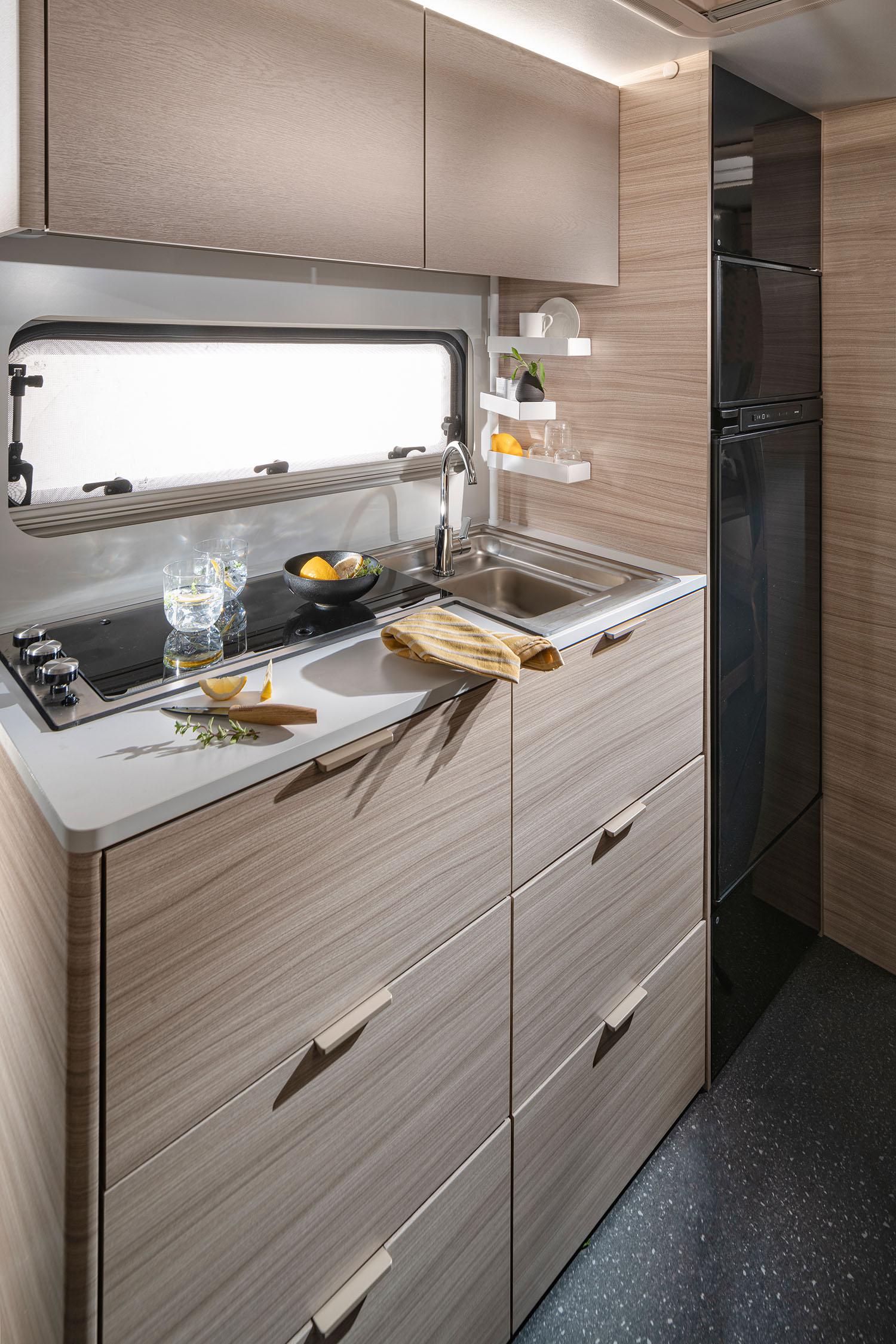

Kitchen equipment G

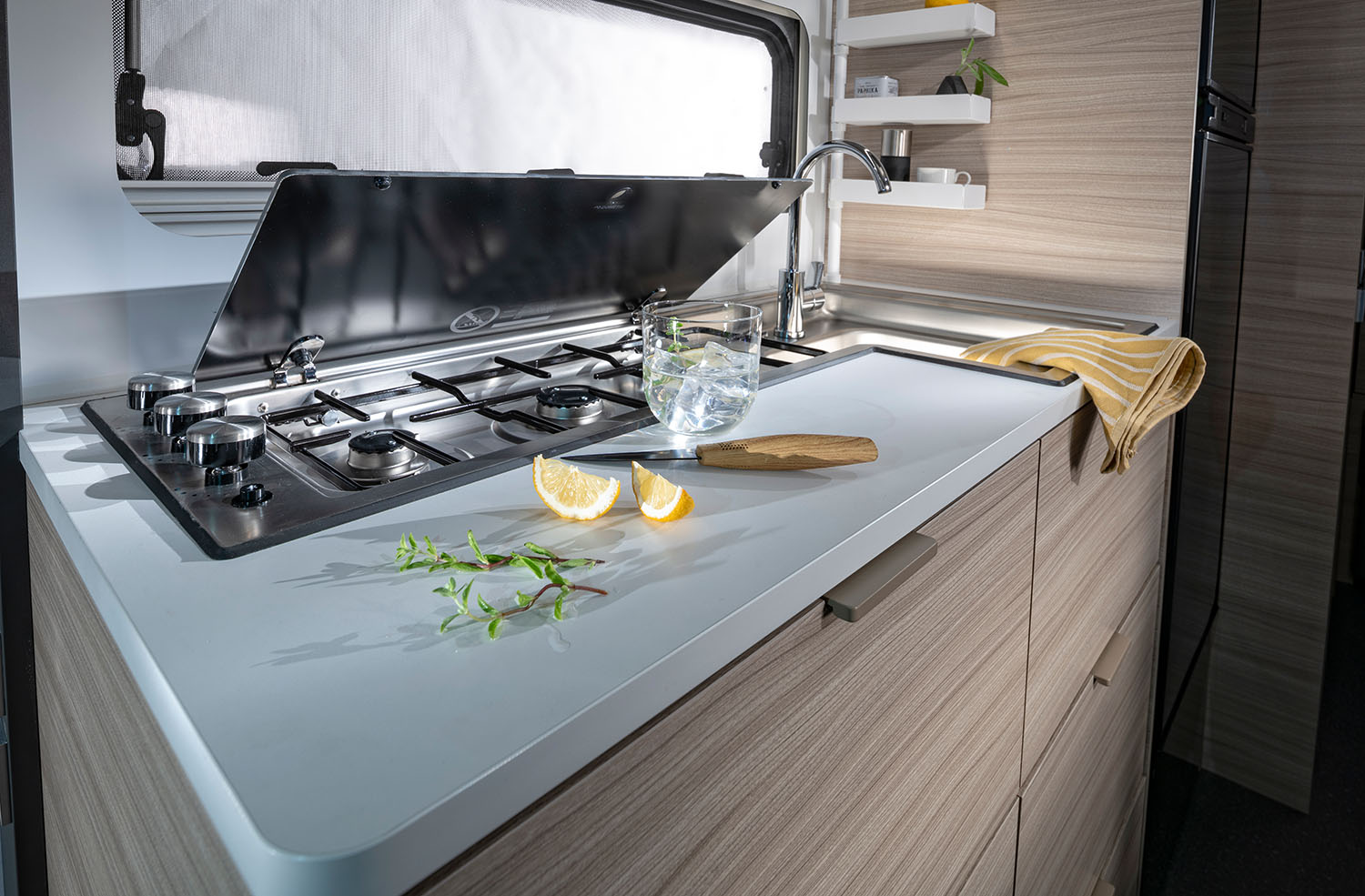

3-flame gas cooker with electric ignition, glass cover and stainless steel sink

X

Drainer

O

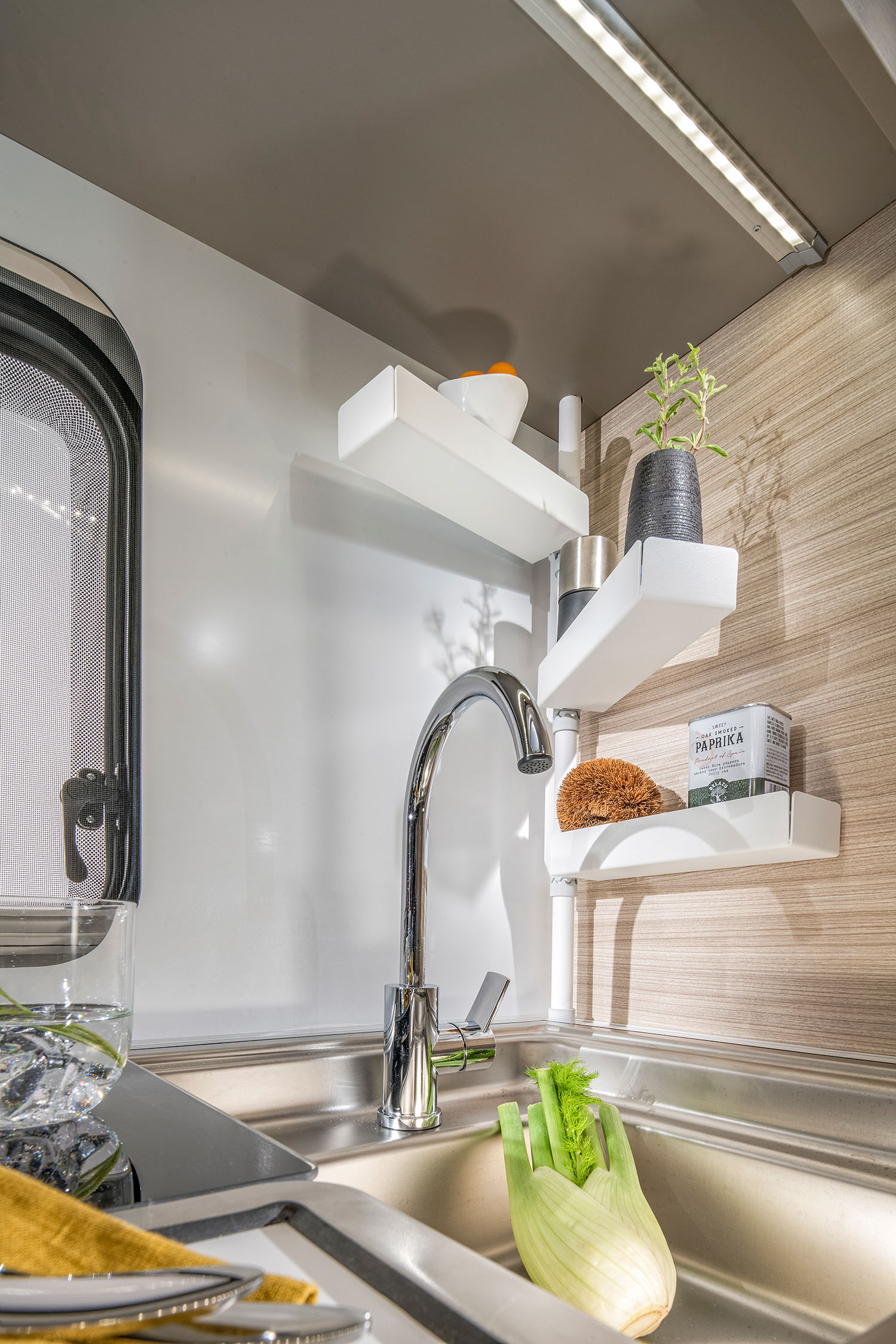

Kitchen taps (cold & hot water)

X

Microwave oven

O

Microwave oven preinstallation

X

Refrigerator

190 L

Sink cover/chopping board

O

Bathroom equipment H

Adria Ergobath type

B

Bathroom taps (washing+showering)

-

Foldable washbasin

X

Separate shower cabin with solid door

X

Separate shower faucet

X

Shower curtain

-

Shower tray

X

WC chemical, fixed, passive ventilated

X

WC chemical, turnable, passive ventilated

-

Water installations I

Boiler Truma Therme 5 L

X

Central waste water outlet

X

Fresh water tank with external inlet (l)

50

Waste water tank (l)

O / 25

Electricity J

13-pin socket Jaeger

X

Additional spot lights in sitting area

X

Ambient LED lights below cupboards

O

Awning LED light

X

Battery charger

O / 17A

Ceiling LED lights

X

Main fit switch

X

Main light switch at entrance door

X

Power sockets 230 V

X

Preinstallation for charger with battery box

O

Preinstallation for charger with battery box and external fultifunctional outlet

O

Preinstallation for roof clima device

X

Spot halogen lights

X

TV aerial connector with coaxial cable

X

Transformer 300 W

X

USB switch

X

Heating/air conditioning K

Additional electric heater Truma Ultraheat

O

Electrical floor heating with transformer

O

Gas heating stove Truma S3004

X

Hot-air distribution Trumavent

X

Preinstallation for additional electric heater Truma Ultraheat - preinstallation

X

Preinstallation for air condition

X

Gas L

Gag regulation valve

X

Gas bottle compartment 2 x 11 kg

X

Gas bottle holder

X

Audio/video M

Bluetooth transmitter

O

Loudspeakers with preinstallation for bluetooth transmitter

X

TV holder

O

2. New in 2018 & key features

  • Adria's exclusive i-shaped exterior design with integrated features.
  • GFK body construction with embossed aluminium sidewalls.
  • AL-KO chassis.
  • New contemporary interior design and choice of textiles.
  • Comfortable sleeping in all bed formats.
  • Flexible lounge seating and table group.
  • Adria Smart kitchen with gas burners, sink, worktop and fridge.
  • Adria Ergo bathroom with quality bathroom equipment.
  • Intelligent lighting and storage throughout.
  • Truma heating with optional heating upgrades available.
  • Plus individual options available.

3. Textiles

Mirka
Quentin Brown
Quentin Blue
Savona Grey

Exterior features

Picture for illustration purposes only. Details may vary.

The award-winning Altea with intelligent design, innovative features and premium quality at an attractive price. Season 2018 sees new layouts, including family layout with Kid's Adventure Playground, new choice of textiles and additional USB sockets and Bluetooth amplifier.


Adria's exclusive i-shaped exterior design with integrated handles, tent profile and awning light.

AL-KO chassis.

Double-glazed flat design tinted windows.

Two-part entrance door with window option.

AL-KO chassis or BPW chassis (model dependent).

GFK polyester body with embossed aluminium sidewalls and new graphics

Interior features

Picture for illustration purposes only. Details may vary.

A European Innovation Award with an interior which is light and welcoming. There’s plenty of space and layouts for most users. Contemporary new decor with a choice of textiles, intelligent directional, ambient and LED lights throughout and Adria’s Smart kitchen and Ergo bathroom too.


Comfortable sleeping in twin, island, French and bunk-bed formats.

Adria Smart kitchen with three burner stove, cover, sink and large fridge.

Contemporary new interior design with optimized space and lighting.

Flexible seating group and table arrangement.

Adria Ergo bathroom in boutique hotel style.

Truma heating.
