Aviva

B12Total length (including towing bar) (mm)

B125530 - 7577

B15Total width (mm)

B152090 - 2455

B5Mass in running order (kg)

B5774 - 1197

O1bMax. No. of berths

O1b4 - 7

A new style of camping.

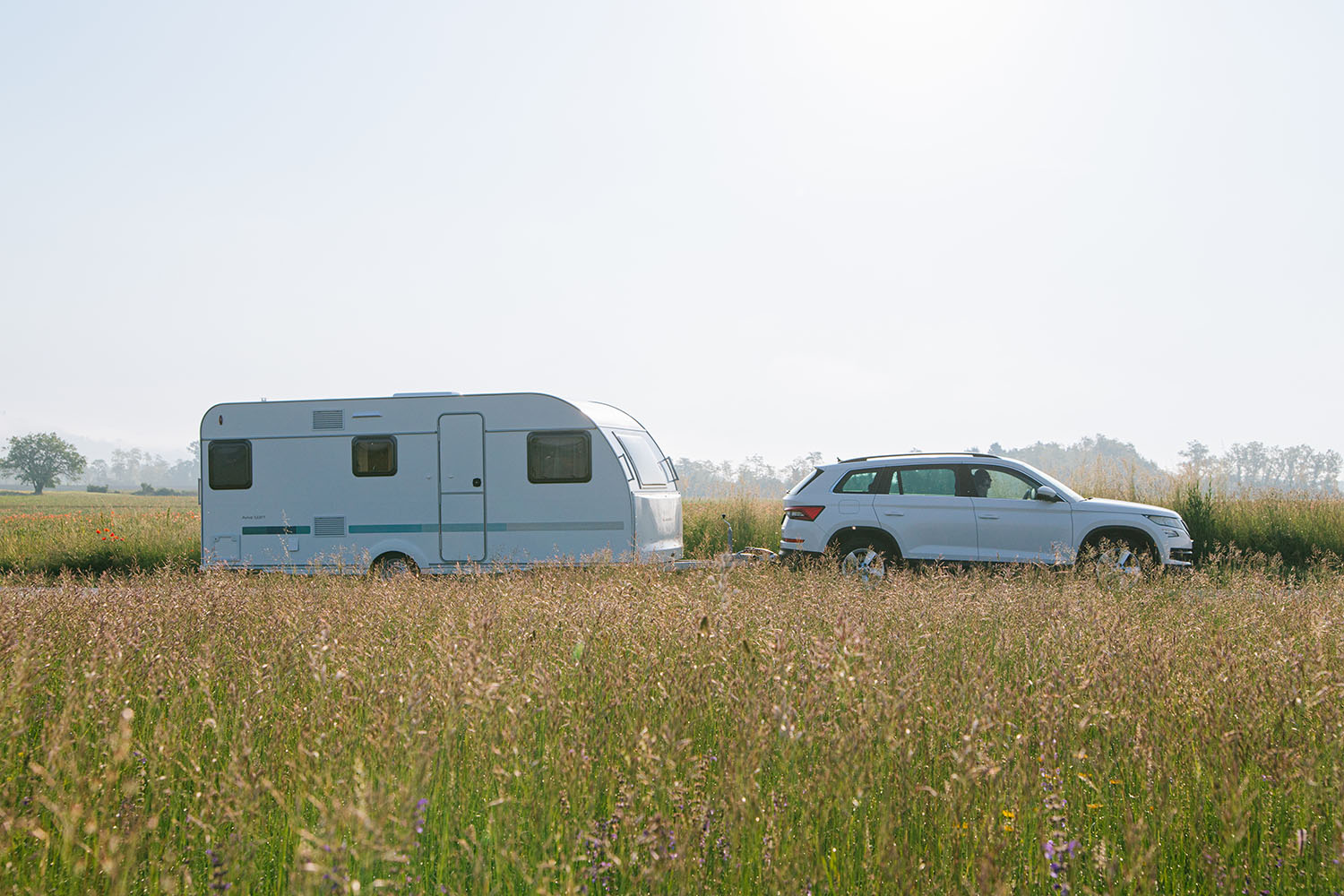

The new Aviva is an easy caravan to own, tow and enjoy. Elegant new design with 'i-shaped' exterior silhouette, and stylish new interior. A breath of fresh air in how a modern day caravan is designed, with original features designed around how you go camping. And affordable too, offering outstanding value for money.

Easy

EASY

The new Aviva from Adria is an easy caravan to own, tow and enjoy. An elegant new design with Adria’s ‘i-shaped’ design exterior and all-new stylish interior. A breath of fresh air in how a modern day caravan is designed around how you go camping, joining up the whole home-caravan-campsite experience.

Stylish

STYLISH

The new Aviva’s stylish interior design has refreshingly clean lines, a bright playful interior and choice of textiles. It’s not just a caravan, its part of your family so choose the décor to suit your personality, enjoy the innovative features, cool new bathroom and kitchen and love the new storage solutions. All the features you’d normally only expect in a caravan in a much higher price category but all done with a new style. Yours.

Original

ORIGINAL

Originality comes as standard in a caravan designed by campers. Everywhere you look there’s a new way of thinking which adds to your enjoyment. Smart storage trays make it easy to load and unload. The ergonomic kitchen and stylish new bathroom with optional Vanity Pack to go. The gas bottle compartment turns out to be a big garage. The optional “secondary kitchen”, self assembles and encourages you to dine in nature and stores in the front garage compartment.

Affordable

AFFORDABLE

The new Aviva offers exceptional value for money across the range and is backed by Adria’s 2 year general warranty and 7 year water ingress warranty plus the peace of mind of over 450 Adria dealers across Europe and beyond.

360° virtual tour



Interior comparison

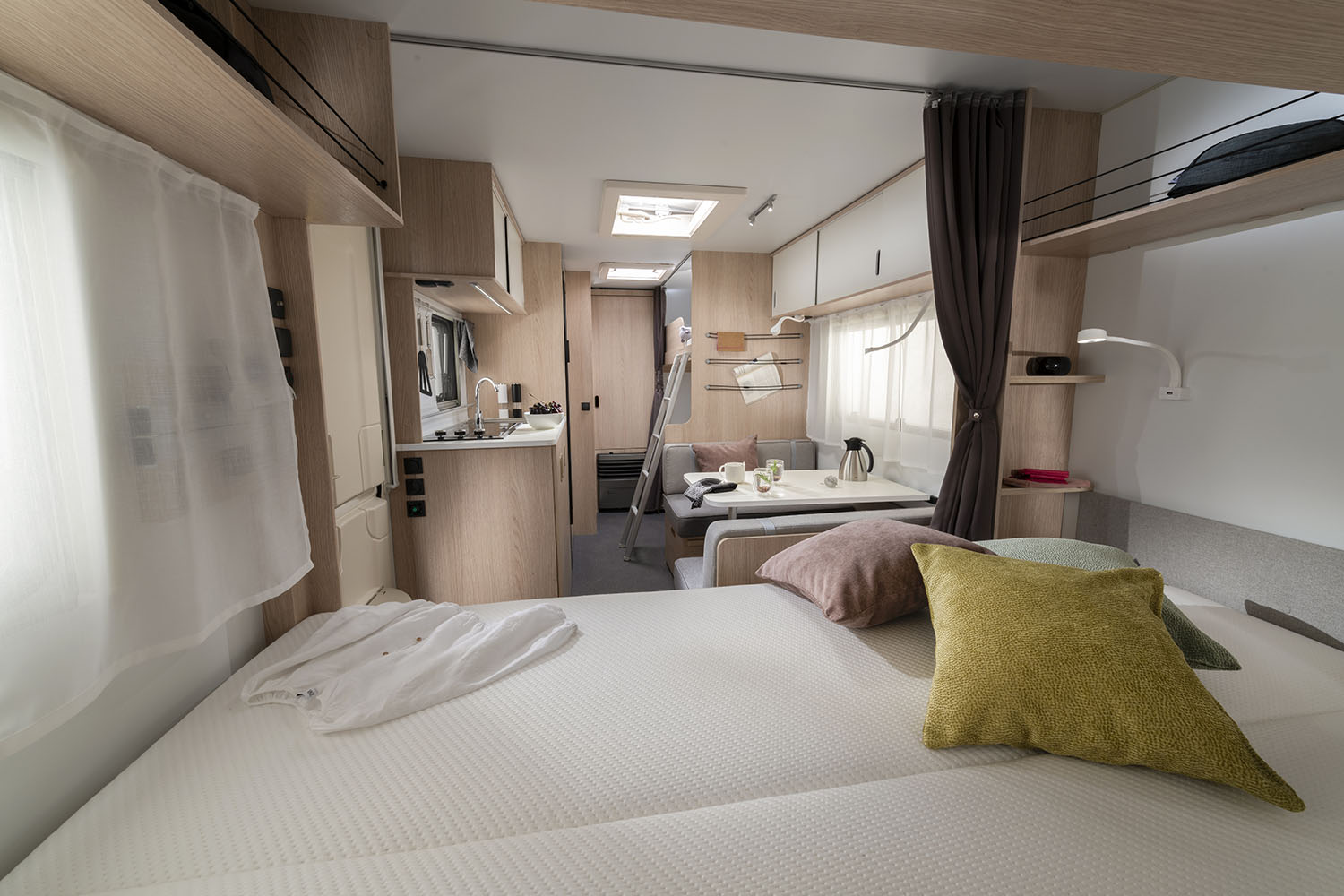

Interior
Exterior
Day
Night
day
Modified Image


Textiles

Picture for illustration purposes only. Details may vary.

3 steps to your caravan

1. Layouts(9)

360 DK

Textiles

Bahia
Cavana
Honduras

360 DK

Total length (including towing bar) (mm) B12

5530 B12

Total width (mm) B15

2090 B15

Mass in running order (kg) B5

774 B5

Max. No. of berths O1b

5 O1b

Technical data

Dimensions and weights B

Awning perimeter dimensions (body/chassis) (cm)

810/368

Body length (mm)

4142

Ex-Works weight ( kg )

705

Floor, wall and roof insulation thickness (mm)

29/20/20

Floor, wall and roof total thickness (mm)

40/23,8/22,9

Internal height (mm)

1950

Internal length (mm)

3640

Internal width (mm)

1960

Mass in running order (MRO) ( kg )

774

Max loading weight (kg)

226

Max. technically permissible laden mass (MTPLM) / optional (kg)

1000

Technically possible weight increase (optional MTPLM, kg)

750

Total height (mm)

2580

Total length (including towing bar) (mm)

5530

Total width (mm)

2090

Chassis equipment C

Chassis type

AL-KO

Coupling device AK

90 S/3 AK 160

Coupling device AKS

O

Mud protection

O

Number of axles

1

Reduced MTPLM to 750 kg

O

Shock absorbers

O

Spare wheel with holder

O

Standard axle

X

Standard supporting legs

X

Steel wheels

X

Third wheel with the real tyre

O

Tyres service kit

O

Tyres size

185/65 R14

Wheel trims

O

Body E

Adria windows - darker

X

Black-out roller blinds with flyscreen on all windows, except in toilet comp.

X

Bodywork in polyester

X

Double gazed front windscreen

X

Entrance door 2-part with window

O

Entrance door 2-part without window

X

Exterior graphic design labels

X

Floor insulation Styropor

X

Flyscreen - upper part

O

Flyscreen whole door

O

Front and rear wall lining in thermoformed ABS

X

Gas bottle locker

X

Movable entrance step

O

Opening windows all

X

Roof light Midi Heki 70x50 cm

O ( only Truma)

Roof light Mini Heki S 40x40 cm

X

Side wall skirtings in themoformed ABS

X

Side walls in aluminium

X

Interior equipment F

Bed coverlet

O

Blanket

O

Cupboards Classic

O

Decorative pillows (4 pcs) 42x42 cm

O

Overall sleeping places

4 ( + 1 op.)

Sleeping area, bunk beds (cm)

194 x 64, 184 x 64

Sleeping area, front berths (cm)

194 x 126

Sleeping area, rear berths (cm)

194 x 70

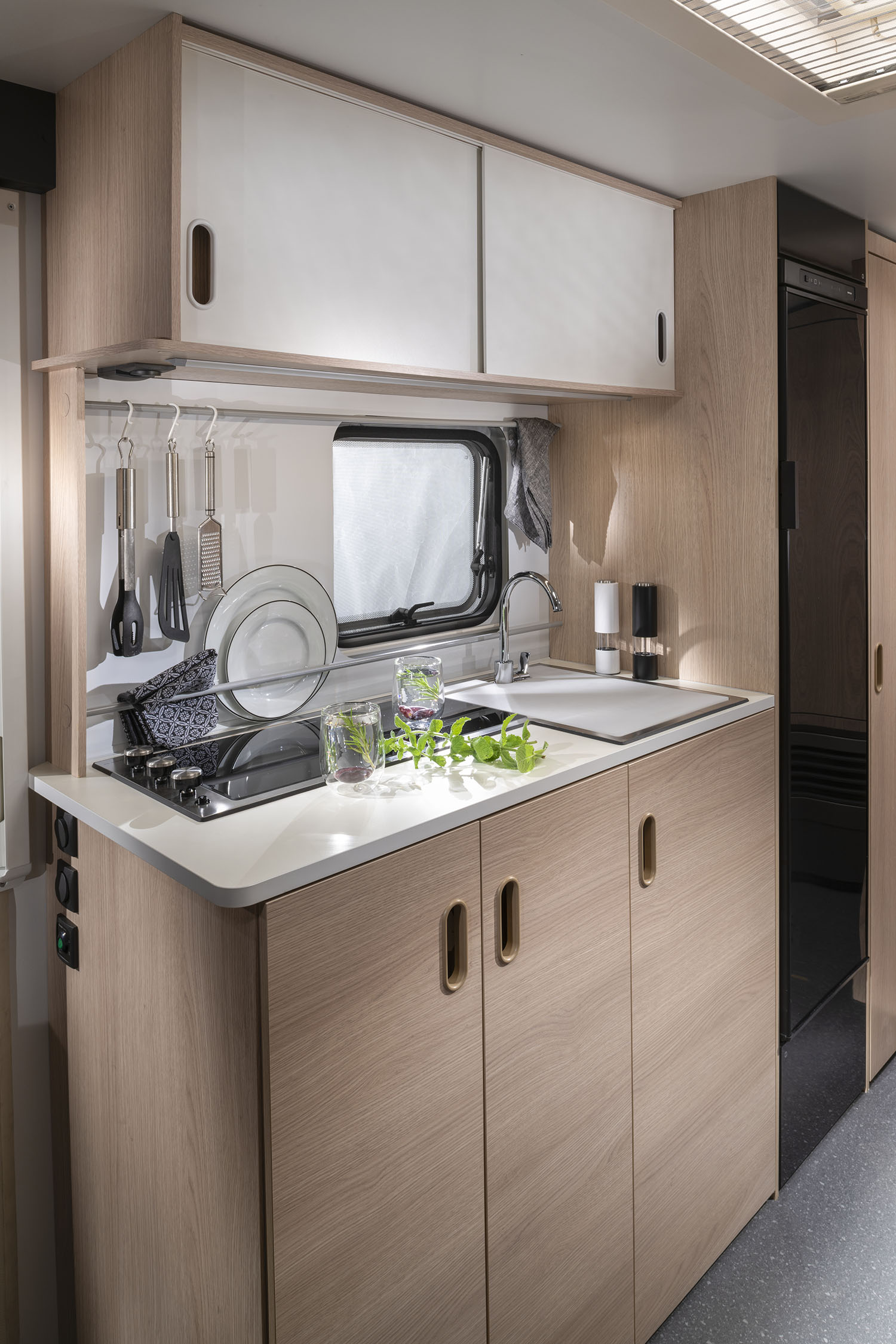

Kitchen equipment G

Chuck box

O

Cooker 2 flame with glass cover SMEV

X

Kitchen taps (cold & hot water)

X

Microwave oven preinstallation

-

Refrigerator

80 L

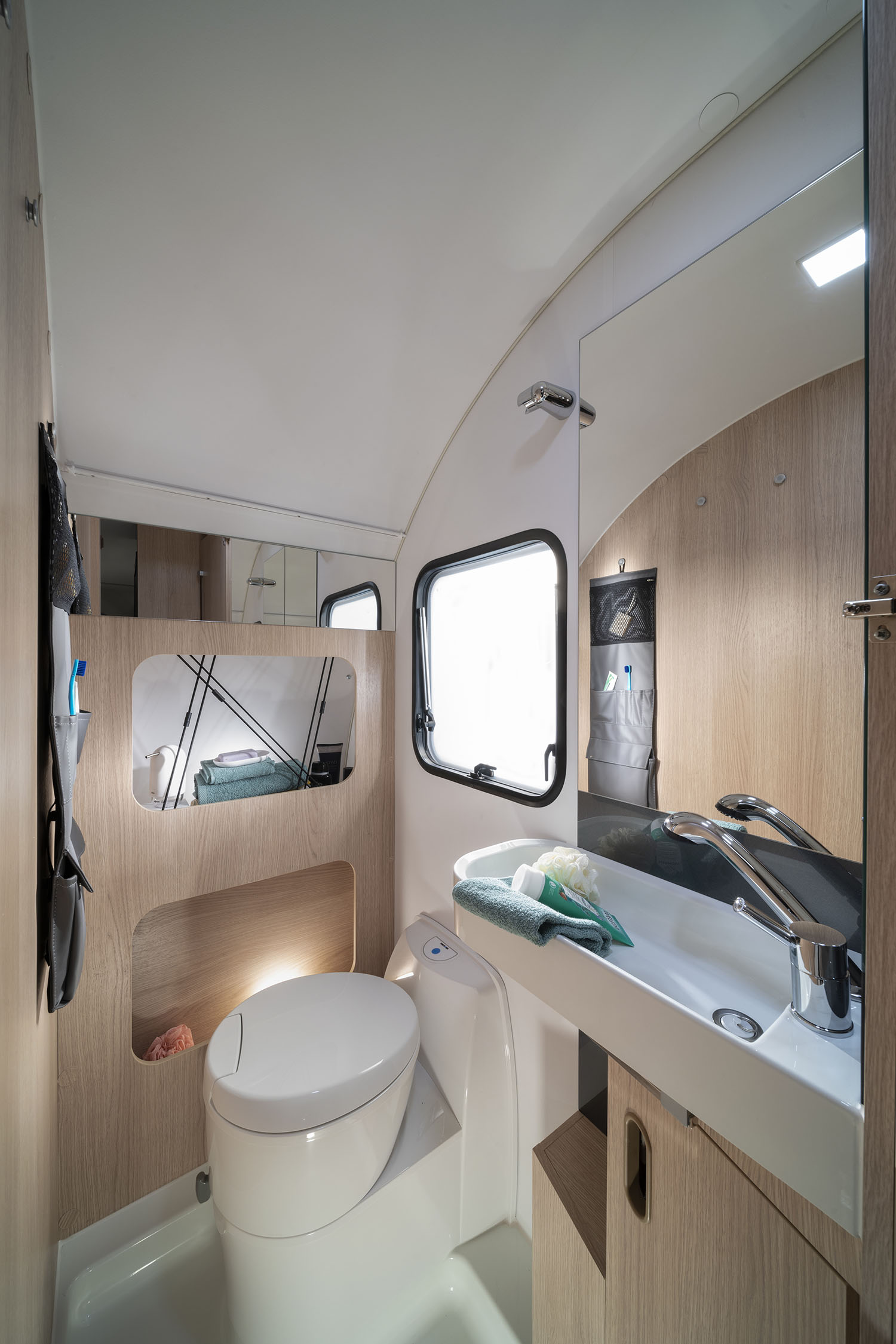

Bathroom equipment H

Bathroom taps (washing & showering)

X

Shower curtain

X

Shower tray

X

Toiletry to go

O

WC chemical, turnable, passive ventilated

X

Water installations I

Boiler Truma Therme 5 L

X

Central waste water outlet

X

Fresh water tank with external inlet (L)

50

Waste water tank (L)

O

Electricity J

13-pin socket Jaeger

X

Awning LED light

X

Battery charger

O / 17A

Ceiling LED lights

X

Main fit switch

X

Power sockets

X

Preinstallation for charger with battery box

O

Preinstallation for charger with battery box and external fultifunctional outlet

O

TV aerial connector with coaxial cable

-

Transformer 300 W

X

Heating/air conditioning K

Additional electric heater Truma Ultraheat

O ( only Truma)

Gas heating stove Truma S3004

Truma Pack

Preinstallation for additional electric heater Truma Ultraheat - preinstallation

X ( only Truma)

Gas L

Gas bottle compartment 2 x 11 kg

X

Gas bottle holder

X

Gas regulation valve

X

Smart box one

O

Smart box two

O

Audio/video M

TV holder

-

360 DD

Textiles

Bahia
Cavana
Honduras

360 DD

Total length (including towing bar) (mm) B12

5530 B12

Total width (mm) B15

2090 B15

Mass in running order (kg) B5

790 B5

Max. No. of berths O1b

4 O1b

Technical data

Dimensions and weights B

Awning perimeter dimensions (body/chassis) (cm)

824/382

Body length (mm)

4142

Ex-Works weight ( kg )

705

Floor, wall and roof insulation thickness (mm)

29/20/20

Floor, wall and roof total thickness (mm)

40/23,8/22,9

Internal height (mm)

1950

Internal length (mm)

3640

Internal width (mm)

1960

Mass in running order (MRO) ( kg )

790

Max loading weight (kg)

210

Max. technically permissible laden mass (MTPLM) / optional (kg)

1000

Technically possible weight increase (optional MTPLM, kg)

750

Total height (mm)

2580

Total length (including towing bar) (mm)

5530

Total width (mm)

2090

Chassis equipment C

Chassis type

AL-KO

Coupling device AK

90 S/3 AK 160

Coupling device AKS

O

Mud protection

O

Number of axles

1

Reduced MTPLM to 750 kg

O

Shock absorbers

O

Spare wheel with holder

O

Standard axle

X

Standard supporting legs

X

Steel wheels

X

Third wheel with the real tyre

O

Tyres service kit

O

Tyres size

185/65 R14

Wheel trims

O

Body E

Adria windows - darker

X

Black-out roller blinds with flyscreen on all windows, except in toilet comp.

X

Bodywork in polyester

X

Double gazed front windscreen

X

Entrance door 2-part with window

O

Entrance door 2-part without window

X

Exterior graphic design labels

X

Floor insulation Styropor

X

Flyscreen - upper part

O

Flyscreen whole door

O

Front and rear wall lining in thermoformed ABS

X

Gas bottle locker

X

Movable entrance step

O

Opening windows all

X

Roof light Midi Heki 70x50 cm

O ( only TrumaP)

Roof light Mini Heki S 40x40 cm

X

Side wall skirtings in themoformed ABS

X

Side walls in aluminium

X

Interior equipment F

Bed coverlet

O

Blanket

O

Cupboards Classic

O

Decorative pillows (4 pcs) 42x42 cm

O

Foldable bunk bunk bed above parents bed

190 x 56

Overall sleeping places

4

Sleeping area, bunk beds (cm)

?

Sleeping area, central berths (cm)

-

Sleeping area, front berths (cm)

194 x 126

Sleeping area, rear berths (cm)

194 x 70

Kitchen equipment G

Chuck box

O

Cooker 2 flame with glass cover SMEV

X

Kitchen taps (cold & hot water)

X

Microwave oven preinstallation

-

Refrigerator

80 L

Bathroom equipment H

Bathroom taps (washing & showering)

X

Shower curtain

X

Shower tray

X

Toiletry to go

O

WC chemical, turnable, passive ventilated

X

Water installations I

Boiler Truma Therme 5 L

X

Central waste water outlet

X

Fresh water tank with external inlet (L)

50

Waste water tank (L)

O

Electricity J

13-pin socket Jaeger

X

Awning LED light

X

Battery charger

O / 17A

Ceiling LED lights

X

Main fit switch

X

Power sockets

X

Preinstallation for charger with battery box

O

Preinstallation for charger with battery box and external fultifunctional outlet

O

TV aerial connector with coaxial cable

-

Transformer 300 W

X

Heating/air conditioning K

Additional electric heater Truma Ultraheat

O ( only TrumaP)

Gas heating stove Truma S3004

Truma Pack

Preinstallation for additional electric heater Truma Ultraheat - preinstallation

X ( only TrumaP)

Gas L

Gas bottle compartment 2 x 11 kg

X

Gas bottle holder

X

Gas regulation valve

X

Smart box one

O

Smart box two

O

Audio/video M

TV holder

-

400 PS

Textiles

Bahia
Cavana
Honduras

400 PS

Total length (including towing bar) (mm) B12

5959 B12

Total width (mm) B15

2090 B15

Mass in running order (kg) B5

784 B5

Max. No. of berths O1b

4 O1b

Technical data

Dimensions and weights B

Awning perimeter dimensions (body/chassis) (cm)

846/426

Body length (mm)

4492

Ex-Works weight ( kg )

737

Floor, wall and roof insulation thickness (mm)

29/20/20

Floor, wall and roof total thickness (mm)

40/23,8/22,9

Internal height (mm)

1950

Internal length (mm)

3990

Internal width (mm)

1960

Mass in running order (MRO) ( kg )

784

Max loading weight (kg)

316

Max. technically permissible laden mass (MTPLM) / optional (kg)

1100

Total height (mm)

2580

Total length (including towing bar) (mm)

5959

Total width (mm)

2090

Chassis equipment C

Chassis type

AL-KO

Coupling device AK

90 S/3 AK 160

Coupling device AKS

O

Increased MTPLM up to 1300 kg with AKS

O

Mud protection

O

Number of axles

1

Shock absorbers

O

Spare wheel with holder

O

Standard axle

X

Standard supporting legs

X

Steel wheels

X

Third wheel with the real tyre

O

Tyres service kit

O

Tyres size

185/65 R14

Wheel trims

O

Body E

Adria windows - darker

X

Black-out roller blinds with flyscreen on all windows, except in toilet comp.

X

Bodywork in polyester

X

Double gazed front windscreen

X

Entrance door 2-part with window

O

Entrance door 2-part without window

X

Exterior graphic design labels

X

Floor insulation Styropor

X

Flyscreen - upper part

O

Flyscreen whole door

O

Front and rear wall lining in thermoformed ABS

X

Gas bottle locker

X

Movable entrance step

O

Opening windows all

X

Roof light Midi Heki 70x50 cm

O ( only TrumaP)

Roof light Mini Heki S 40x40 cm

X

Side wall skirtings in themoformed ABS

X

Side walls in aluminium

X

Interior equipment F

Bed coverlet

O

Blanket

O

Cupboards Classic

O

Decorative pillows (4 pcs) 42x42 cm

O

Overall sleeping places

4

Sleeping area, front berths (cm)

190 x 136

Sleeping area, rear berths (cm)

195 x 118/98

Kitchen equipment G

Chuck box

O

Cooker 2 flame with glass cover SMEV

X

Kitchen taps (cold & hot water)

X

Microwave oven preinstallation

-

Refrigerator

80 L

Bathroom equipment H

Bathroom taps (washing & showering)

X

Shower curtain

X

Shower tray

X

Toiletry to go

O

WC chemical, fixed, passive ventilated

X

Water installations I

Boiler Truma Therme 5 L

X

Central waste water outlet

X

Fresh water tank with external inlet (L)

50

Waste water tank (L)

O

Electricity J

13-pin socket Jaeger

X

Awning LED light

X

Battery charger

O / 17A

Ceiling LED lights

X

Main fit switch

X

Power sockets

X

Preinstallation for charger with battery box

O

Preinstallation for charger with battery box and external fultifunctional outlet

O

TV aerial connector with coaxial cable

-

Transformer 300 W

X

Heating/air conditioning K

Additional electric heater Truma Ultraheat

O ( only TrumaP)

Electric floor heating with transformer

O ( only TrumaP)

Gas heating stove Truma S3004

X ( only TrumaP)

Hot-air distribution Trumavent

O ( only TrumaP)

Preinstallation for additional electric heater Truma Ultraheat - preinstallation

X ( only TrumaP)

Gas L

Gas bottle compartment 2 x 11 kg

X

Gas bottle holder

X

Gas regulation valve

X

Smart box one

O

Smart box two

O

Audio/video M

TV holder

-

442 PH

Textiles

Bahia
Cavana
Honduras

442 PH

Total length (including towing bar) (mm) B12

6313 B12

Total width (mm) B15

2300 B15

Mass in running order (kg) B5

966 B5

Max. No. of berths O1b

4 O1b

Technical data

Dimensions and weights B

Awning perimeter dimensions (body/chassis) (cm)

884/464

Body length (mm)

4872

Ex-Works weight ( kg )

871

Floor, wall and roof insulation thickness (mm)

29/20/20

Floor, wall and roof total thickness (mm)

40/23,8/22,9

Internal height (mm)

1950

Internal length (mm)

4370

Internal width (mm)

2170

Mass in running order (MRO) ( kg )

966

Max loading weight (kg)

384

Max. technically permissible laden mass (MTPLM) / optional (kg)

1350

Total height (mm)

2580

Total length (including towing bar) (mm)

6313

Total width (mm)

2300

Chassis equipment C

Chassis type

BPW

Coupling device AK

EM 150R

Coupling device AKS

O

Mud protection

O

Number of axles

1

Shock absorbers

O

Spare wheel with holder

O

Standard axle

X

Standard supporting legs

X

Steel wheels

X

Third wheel with the real tyre

O

Tyres service kit

O

Tyres size

185 R14 C 102

Wheel trims

O

Body E

Adria windows - darker

X

Black-out roller blinds with flyscreen on all windows, except in toilet comp.

X

Bodywork in polyester

X

Double gazed front windscreen

X

Entrance door 2-part with window

O

Entrance door 2-part without window

X

Exterior graphic design labels

X

Floor insulation Styropor

X

Flyscreen - upper part

O

Flyscreen whole door

O

Front and rear wall lining in thermoformed ABS

X

Gas bottle locker

X

Luggage door - left (light dimensions) (cm)

98 x 36

Luggage door - right (light dimensions) (cm)

-

Movable entrance step

O

Opening windows all

X

Roof light Midi Heki 70x50 cm

O

Roof light Mini Heki S 40x40 cm

X

Side wall skirtings in themoformed ABS

X

Side walls in aluminium

X

Interior equipment F

Bed coverlet

O

Blanket

O

Cupboards Classic

O

Decorative pillows (4 pcs) 42x42 cm

O

Overall sleeping places

4

Sleeping area, central berths (cm)

180 x 96/110

Sleeping area, front berths (cm)

215 x 136

Kitchen equipment G

3-flame gas cooker with electric ignition, glass cover and stainless steel sink

X

Chuck box

O

Kitchen taps (cold & hot water)

X

Microwave oven

O

Microwave oven preinstallation

X

Refrigerator

140 L

Sink cover / chopping board

O

Bathroom equipment H

Bathroom taps (washing & showering)

X

Shower curtain

X

Shower tray

X

Toiletry to go

O

WC chemical, turnable, passive ventilated

X

Water installations I

Boiler Truma Therme 5 L

X

Central waste water outlet

X

Fresh water tank with external inlet (L)

50

Waste water tank (L)

O

Electricity J

13-pin socket Jaeger

X

Awning LED light

X

Battery charger

O / 17A

Ceiling LED lights

X

Main fit switch

X

Power sockets

X

Preinstallation for charger with battery box

O

Preinstallation for charger with battery box and external fultifunctional outlet

O

Preinstallation for roof clima device

X

TV aerial connector with coaxial cable

X

Transformer 300 W

X

Heating/air conditioning K

Additional electric heater Truma Ultraheat

O ( only TrumaP)

Electric floor heating with transformer

O ( only TrumaP)

Gas heating stove Truma S3004

X ( only TrumaP)

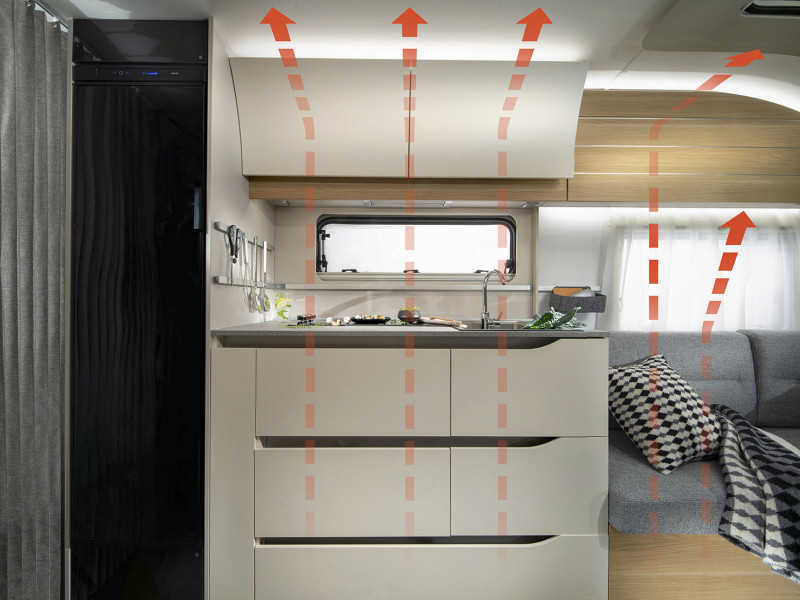

Hot-air distribution Trumavent

O ( only TrumaP)

Preinstallation for additional electric heater Truma Ultraheat - preinstallation

X ( only TrumaP)

Preinstallation for air condition

X

Gas L

Gas bottle compartment 2 x 11 kg

X

Gas bottle holder

X

Gas regulation valve

X

Smart box one

O

Smart box two

O

Audio/video M

TV holder

O

472 PK

Textiles

Bahia
Cavana
Honduras

472 PK

Total length (including towing bar) (mm) B12

6610 B12

Total width (mm) B15

2300 B15

Mass in running order (kg) B5

1055 B5

Max. No. of berths O1b

6 O1b

Technical data

Dimensions and weights B

Awning perimeter dimensions (body/chassis) (cm)

914/494

Body length (mm)

5174

Ex-Works weight ( kg )

950

Floor, wall and roof insulation thickness (mm)

29/20/20

Floor, wall and roof total thickness (mm)

40/23,8/22,9

Internal height (mm)

1950

Internal length (mm)

4672

Internal width (mm)

2170

Mass in running order (MRO) ( kg )

1055

Max loading weight (kg)

295

Max. technically permissible laden mass (MTPLM) / optional (kg)

1350

Total height (mm)

2580

Total length (including towing bar) (mm)

6610

Total width (mm)

2300

Chassis equipment C

Chassis type

BPW

Coupling device AK

EM 150R

Coupling device AKS

O

Mud protection

O

Number of axles

1

Shock absorbers

O

Spare wheel with holder

O

Standard axle

X

Standard supporting legs

X

Steel wheels

X

Third wheel with the real tyre

O

Tyres service kit

O

Tyres size

185 R14 C 102

Wheel trims

O

Body E

Adria windows - darker

X

Black-out roller blinds with flyscreen on all windows, except in toilet comp.

X

Bodywork in polyester

X

Double gazed front windscreen

X

Entrance door 2-part with window

O

Entrance door 2-part without window

X

Exterior graphic design labels

X

Floor insulation Styropor

X

Flyscreen - upper part

O

Flyscreen whole door

O

Front and rear wall lining in thermoformed ABS

X

Gas bottle locker

X

Luggage door - left (light dimensions) (cm)

98 x 36

Luggage door - right (light dimensions) (cm)

-

Movable entrance step

O

Opening windows all

X

Roof light Midi Heki 70x50 cm

O

Roof light Mini Heki S 40x40 cm

X

Side wall skirtings in themoformed ABS

X

Side walls in aluminium

X

Interior equipment F

Bed coverlet

O

Blanket

O

Cupboards Classic

O

Decorative pillows (4 pcs) 42x42 cm

O

Overall sleeping places

6

Sleeping area, bunk beds (cm)

188 x 64, 184 x 64

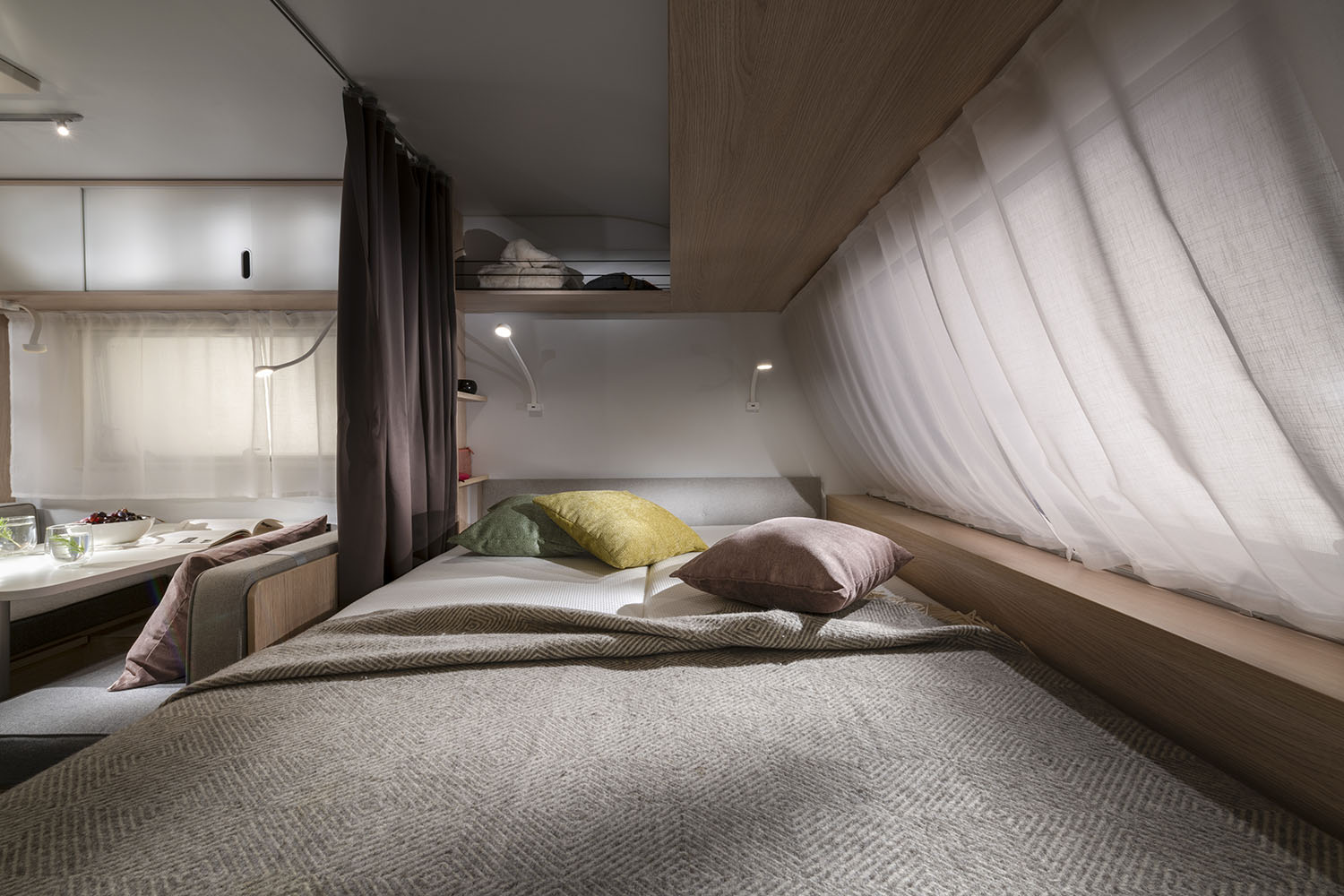

Sleeping area, central berths (cm)

180 x 96

Sleeping area, front berths (cm)

200 x 137/107

Sliding bed

X

Kitchen equipment G

3-flame gas cooker with electric ignition, glass cover and stainless steel sink

X

Chuck box

O

Kitchen taps (cold & hot water)

X

Microwave oven

O

Microwave oven preinstallation

X

Refrigerator

140 L

Sink cover / chopping board

O

Bathroom equipment H

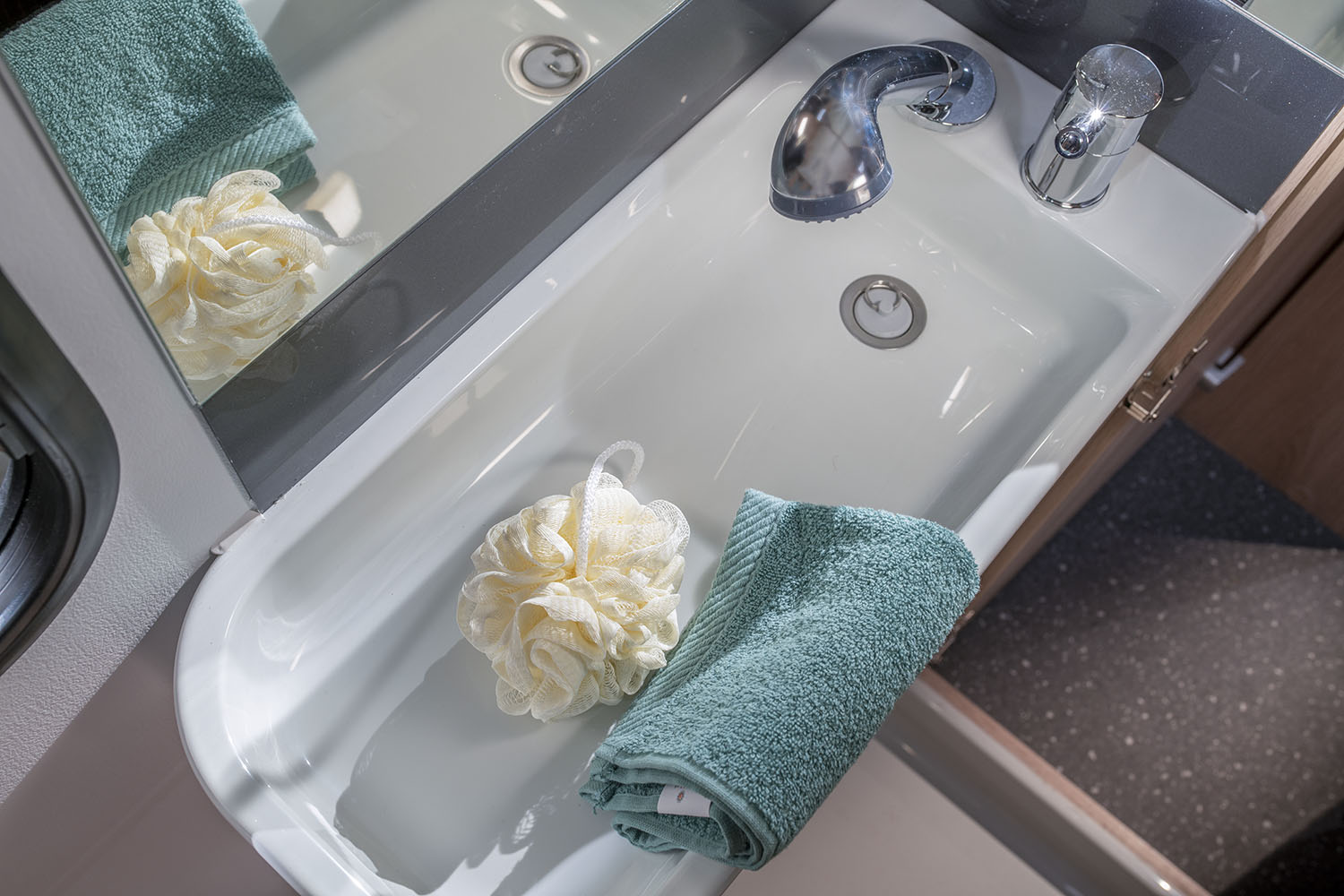

Bathroom taps (washing & showering)

X

Shower curtain

X

Shower tray

X

Toiletry to go

O

WC chemical, turnable, passive ventilated

X

Water installations I

Boiler Truma Therme 5 L

X

Central waste water outlet

X

Fresh water tank with external inlet (L)

50

Waste water tank (L)

O

Electricity J

13-pin socket Jaeger

X

Awning LED light

X

Battery charger

O / 17A

Ceiling LED lights

X

Main fit switch

X

Power sockets

X

Preinstallation for charger with battery box

O

Preinstallation for charger with battery box and external fultifunctional outlet

O

Preinstallation for roof clima device

X

TV aerial connector with coaxial cable

X

Transformer 300 W

X

Heating/air conditioning K

Additional electric heater Truma Ultraheat

O ( only TrumaP)

Electric floor heating with transformer

O ( only TrumaP)

Gas heating stove Truma S3004

Truma Pack

Hot-air distribution Trumavent

O ( only TrumaP)

Preinstallation for additional electric heater Truma Ultraheat - preinstallation

X ( only TrumaP)

Preinstallation for air condition

X

Gas L

Gas bottle compartment 2 x 11 kg

X

Gas bottle holder

X

Gas regulation valve

X

Smart box one

O

Smart box two

O

Audio/video M

TV holder

O

492 LU

Textiles

Bahia
Cavana
Honduras

492 LU

Total length (including towing bar) (mm) B12

6800 B12

Total width (mm) B15

2300 B15

Mass in running order (kg) B5

1055 B5

Max. No. of berths O1b

4 O1b

Technical data

Dimensions and weights B

Awning perimeter dimensions (body/chassis) (cm)

935/515

Body length (mm)

5384

Floor, wall and roof insulation thickness (mm)

29/20/20

Floor, wall and roof total thickness (mm)

40/23,8/22,9

Internal height (mm)

1950

Internal length (mm)

4882

Internal width (mm)

2170

Mass in running order (MRO) ( kg )

1055

Max loading weight (kg)

295

Max. technically permissible laden mass (MTPLM) / optional (kg)

1350

Total height (mm)

2580

Total length (including towing bar) (mm)

6800

Total width (mm)

2300

Chassis equipment C

Chassis type

BPW

Coupling device AK

EM 150R

Coupling device AKS

O

Mud protection

O

Number of axles

1

Shock absorbers

O

Spare wheel with holder

O

Standard axle

X

Standard supporting legs

X

Steel wheels

X

Third wheel with the real tyre

O

Tyres service kit

O

Tyres size

185/65 R14

Wheel trims

O

Body E

Adria windows - darker

X

Black-out roller blinds with flyscreen on all windows, except in toilet comp.

X

Bodywork in polyester

X

Double gazed front windscreen

X

Entrance door 2-part with window

O

Entrance door 2-part without window

X

Exterior graphic design labels

X

Floor insulation Styropor

X

Flyscreen - upper part

O

Flyscreen whole door

O

Front and rear wall lining in thermoformed ABS

X

Gas bottle locker

X

Luggage door - left (light dimensions) (cm)

105x28

Luggage door - right (light dimensions) (cm)

-

Movable entrance step

O

Opening windows all

X

Roof light Midi Heki 70x50 cm

O

Roof light Mini Heki S 40x40 cm

X

Side wall skirtings in themoformed ABS

X

Side walls in aluminium

X

Interior equipment F

Bed coverlet

O

Blanket

O

Cupboards Classic

O

Decorative pillows (4 pcs) 42x42 cm

O

Foldable bunk bunk bed above parents bed

-

Overall sleeping places

4

Sleeping area, bunk beds (cm)

-

Sleeping area, central berths (cm)

-

Sleeping area, front berths (cm)

200x81, 186x81 or 200/186x211

Sleeping area, rear berths (cm)

211x109

Kitchen equipment G

3-flame gas cooker with electric ignition, glass cover and stainless steel sink

X

Chuck box

O

Kitchen taps (cold & hot water)

X

Microwave oven

O

Microwave oven preinstallation

X

Refrigerator

140 L

Sink cover / chopping board

O

Bathroom equipment H

Bathroom taps (washing & showering)

X

Shower curtain

X

Shower tray

X

Toiletry to go

O

WC chemical, turnable, passive ventilated

X

Water installations I

Boiler Truma Therme 5 L

X

Central waste water outlet

X

Fresh water tank with external inlet (L)

50

Waste water tank (L)

O

Electricity J

13-pin socket Jaeger

X

Awning LED light

X

Battery charger

O / 17A

Ceiling LED lights

X

Main fit switch

X

Power sockets

X

Preinstallation for charger with battery box

O

Preinstallation for charger with battery box and external fultifunctional outlet

O

TV aerial connector with coaxial cable

X

Transformer 300 W

X

Heating/air conditioning K

Additional electric heater Truma Ultraheat

O ( only TrumaP)

Electric floor heating with transformer

O ( only TrumaP)

Gas heating stove Truma S3004

Truma Pack

Hot-air distribution Trumavent

O ( only TrumaP)

Preinstallation for additional electric heater Truma Ultraheat - preinstallation

X ( only TrumaP)

Gas L

Gas bottle compartment 2 x 11 kg

X

Gas bottle holder

X

Gas regulation valve

X

Smart box one

O

Smart box two

O

Audio/video M

TV holder

O

522 PK

Textiles

Bahia
Cavana
Honduras

522 PK

Total length (including towing bar) (mm) B12

7085 B12

Total width (mm) B15

2300 B15

Mass in running order (kg) B5

1115 B5

Max. No. of berths O1b

7 O1b

Technical data

Dimensions and weights B

Awning perimeter dimensions (body/chassis) (cm)

963/543

Body length (mm)

5664

Floor, wall and roof insulation thickness (mm)

29/20/20

Floor, wall and roof total thickness (mm)

40/23,8/22,9

Internal height (mm)

1950

Internal length (mm)

5162

Internal width (mm)

2170

Mass in running order (MRO) ( kg )

1115

Max loading weight (kg)

235

Max. technically permissible laden mass (MTPLM) / optional (kg)

1350

Technically possible weight increase (optional MTPLM, kg)

1500

Total height (mm)

2580

Total length (including towing bar) (mm)

7085

Total width (mm)

2300

Chassis equipment C

Chassis type

BPW

Coupling device AK

EM 150R

Coupling device AKS

O

Increased MTPLM up to 1500 kg with AKS (Altea)

O

Mud protection

O

Number of axles

1

Reduced MTPLM to 750 kg

-

Reinforced supporting legs

-

Shock absorbers

O

Spare wheel with holder

O

Standard axle

X

Standard supporting legs

X

Steel wheels

X

Third wheel with the real tyre

O

Tyres service kit

O

Tyres size

185 R14 C 102

Wheel trims

O

Body E

Adria windows - darker

X

Black-out roller blinds with flyscreen on all windows, except in toilet comp.

X

Bodywork in polyester

X

Double gazed front windscreen

X

Entrance door 2-part with window

O

Entrance door 2-part without window

X

Exterior graphic design labels

X

Floor insulation Styropor

X

Flyscreen - upper part

O

Flyscreen whole door

O

Front and rear wall lining in thermoformed ABS

X

Gas bottle locker

X

Luggage door - left (light dimensions) (cm)

98 x 57, 98 x 39 (98x39 TrumaP3)

Luggage door - right (light dimensions) (cm)

-

Movable entrance step

O

Opening windows all

X

Roof light Midi Heki 70x50 cm

O

Roof light Mini Heki S 40x40 cm

X

Side wall skirtings in themoformed ABS

X

Side walls in aluminium

X

Interior equipment F

Bed coverlet

O

Blanket

O

Cupboards Classic

O

Decorative pillows (4 pcs) 42x42 cm

O

Overall sleeping places

6 ( +1 op.)

Sleeping area, bunk beds (cm)

216x65, 200x72 (+216x65 op.)

Sleeping area, central berths (cm)

182 x 110/96

Sleeping area, front berths (cm)

212 x 140

Sleeping area, rear berths (cm)

-

Kitchen equipment G

3-flame gas cooker with electric ignition, glass cover and stainless steel sink

X

Chuck box

O

Kitchen taps (cold & hot water)

X

Microwave oven

O

Microwave oven preinstallation

X

Refrigerator

140 L

Sink cover / chopping board

O

Bathroom equipment H

Bathroom taps (washing & showering)

X

Shower curtain

X

Shower tray

X

Toiletry to go

O

WC chemical, turnable, passive ventilated

X

Water installations I

Boiler Truma Therme 5 L

X

Central waste water outlet

X

Fresh water tank with external inlet (L)

50

Waste water tank (L)

O

Electricity J

13-pin socket Jaeger

X

Awning LED light

X

Battery charger

O / 17A

Ceiling LED lights

X

Main fit switch

X

Power sockets

X

Preinstallation for charger with battery box

O

Preinstallation for charger with battery box and external fultifunctional outlet

O

Preinstallation for roof clima device

X

TV aerial connector with coaxial cable

X

Transformer 300 W

X

Heating/air conditioning K

Additional electric heater Truma Ultraheat

O ( only Truma)

Electric floor heating with transformer

O ( only Truma)

Gas heating stove Truma S3004

Truma Pack

Hot-air distribution Trumavent

O ( only Truma)

Preinstallation for additional electric heater Truma Ultraheat - preinstallation

X (only Truma)

Preinstallation for air condition

X

Gas L

Gas bottle compartment 2 x 11 kg

X

Gas bottle holder

X

Gas regulation valve

X

Smart box one

O

Smart box two

O

Audio/video M

TV holder

O

522 PT

Textiles

Bahia
Cavana
Honduras

522 PT

Total length (including towing bar) (mm) B12

7085 B12

Total width (mm) B15

2300 B15

Mass in running order (kg) B5

1110 B5

Max. No. of berths O1b

7 O1b

Technical data

Dimensions and weights B

Awning perimeter dimensions (body/chassis) (cm)

963/543

Body length (mm)

5664

Ex-Works weight ( kg )

990

Floor, wall and roof insulation thickness (mm)

29/20/20

Floor, wall and roof total thickness (mm)

40/23,8/22,9

Internal height (mm)

1950

Internal length (mm)

5162

Internal width (mm)

2170

Mass in running order (MRO) ( kg )

1110

Max loading weight (kg)

240

Max. technically permissible laden mass (MTPLM) / optional (kg)

1350

Technically possible weight increase (optional MTPLM, kg)

1500

Total height (mm)

2580

Total length (including towing bar) (mm)

7085

Total width (mm)

2300

Chassis equipment C

Chassis type

BPW

Coupling device AK

EM 150R

Coupling device AKS

O

Increased MTPLM up to 1500 kg with AKS (Altea)

O

Mud protection

O

Number of axles

1

Shock absorbers

O

Spare wheel with holder

O

Standard axle

X

Standard supporting legs

X

Steel wheels

X

Third wheel with the real tyre

O

Tyres service kit

O

Tyres size

185 R14 C 102

Wheel trims

O

Body E

Adria windows - darker

X

Black-out roller blinds with flyscreen on all windows, except in toilet comp.

X

Bodywork in polyester

X

Double gazed front windscreen

X

Entrance door 2-part with window

O

Entrance door 2-part without window

X

Exterior graphic design labels

X

Floor insulation Styropor

X

Flyscreen - upper part

O

Flyscreen whole door

O

Front and rear wall lining in thermoformed ABS

X

Gas bottle locker

X

Luggage door - left (light dimensions) (cm)

136 x 106, 98 x 39 (98x39 TrumaP3)

Luggage door - right (light dimensions) (cm)

-

Movable entrance step

O

Opening windows all

X

Roof light Midi Heki 70x50 cm

O

Roof light Mini Heki S 40x40 cm

X

Side wall skirtings in themoformed ABS

X

Side walls in aluminium

X

Interior equipment F

Bed coverlet

O

Blanket

O

Cupboards Classic

O

Decorative pillows (4 pcs) 42x42 cm

O

Kids Adventure Pack

O ( only TrumaP3)

Overall sleeping places

6 ( + 1 op.)

Play set

O ( only TrumaP)

Sleeping area, bunk beds (cm)

2*180 x 74, 162 x 95

Sleeping area, central berths (cm)

180 x 110/96

Sleeping area, front berths (cm)

211 x 134

Sleeping area, rear berths (cm)

-

Kitchen equipment G

3-flame gas cooker with electric ignition, glass cover and stainless steel sink

X

Chuck box

O

Kitchen taps (cold & hot water)

X

Microwave oven

O

Microwave oven preinstallation

X

Refrigerator

140 L

Sink cover / chopping board

O

Bathroom equipment H

Bathroom taps (washing & showering)

X

Shower curtain

X

Shower tray

X

Toiletry to go

O

WC chemical, turnable, passive ventilated

X

Water installations I

Boiler Truma Therme 5 L

X

Central waste water outlet

X

Fresh water tank with external inlet (L)

50

Waste water tank (L)

O

Electricity J

13-pin socket Jaeger

X

Awning LED light

X

Battery charger

O / 17A

Ceiling LED lights

X

Main fit switch

X

Power sockets

X

Preinstallation for charger with battery box

O

Preinstallation for charger with battery box and external fultifunctional outlet

O

Preinstallation for roof clima device

X

TV aerial connector with coaxial cable

X

Transformer 300 W

X

Heating/air conditioning K

Additional electric heater Truma Ultraheat

O ( only Truma)

Electric floor heating with transformer

O ( only Truma)

Gas heating stove Truma S3004

Truma Pack

Hot-air distribution Trumavent

O ( only Truma)

Preinstallation for additional electric heater Truma Ultraheat - preinstallation

X (only Truma)

Preinstallation for air condition

X

Gas L

Gas bottle compartment 2 x 11 kg

X

Gas bottle holder

X

Gas regulation valve

X

Smart box one

O

Smart box two

O

Audio/video M

TV holder

O

563 PT

Textiles

Bahia
Cavana
Honduras

563 PT

Total length (including towing bar) (mm) B12

7577 B12

Total width (mm) B15

2455 B15

Mass in running order (kg) B5

1197 B5

Max. No. of berths O1b

7 O1b

Technical data

Dimensions and weights B

Awning perimeter dimensions (body/chassis) (cm)

1012/592

Body length (mm)

6154

Ex-Works weight ( kg )

1123

Floor, wall and roof insulation thickness (mm)

29/20/20

Floor, wall and roof total thickness (mm)

40/23,8/22,9

Internal height (mm)

1950

Internal length (mm)

5652

Internal width (mm)

2310

Mass in running order (MRO) ( kg )

1197

Max loading weight (kg)

303

Max. technically permissible laden mass (MTPLM) / optional (kg)

1500

Technically possible weight increase (optional MTPLM, kg)

1800

Total height (mm)

2580

Total length (including towing bar) (mm)

7577

Total width (mm)

2455

Chassis equipment C

Chassis type

BPW

Coupling device AK

EM 150R

Coupling device AKS

O

Mud protection

O

Number of axles

1

Reinforced supporting legs

X

Shock absorbers

O

Spare wheel with holder

O

Spare whell for 1700 kg chassis

O

Standard axle

X

Steel wheels

X

Third wheel with the real tyre

O

Tyres service kit

O

Tyres size

185 R14 C 102

Wheel trims

O

Body E

Adria windows - darker

X

Black-out roller blinds with flyscreen on all windows, except in toilet comp.

X

Bodywork in polyester

X

Double gazed front windscreen

X

Entrance door 2-part with window

O

Entrance door 2-part without window

X

Exterior graphic design labels

X

Floor insulation Styropor

X

Flyscreen - upper part

O

Flyscreen whole door

O

Front and rear wall lining in thermoformed ABS

X

Gas bottle locker

X

Luggage door - left (light dimensions) (cm)

136 x 106, 98 x 39 (98x39 TrumaP3)

Luggage door - right (light dimensions) (cm)

-

Movable entrance step

O

Opening windows all

X

Roof light Midi Heki 70x50 cm

O

Roof light Mini Heki S 40x40 cm

X

Side wall skirtings in themoformed ABS

X

Side walls in aluminium

X

Interior equipment F

Bed coverlet

O

Blanket

O

Cupboards Classic

O

Decorative pillows (4 pcs) 42x42 cm

O

Kids Adventure Pack

O ( only TrumaP3)

Overall sleeping places

6 ( + 1 op.)

Play set

O ( only TrumaP)

Sleeping area, bunk beds (cm)

195 x 72, 187 x 69 (+195x74 op.)

Sleeping area, central berths (cm)

194 x 110/98

Sleeping area, front berths (cm)

190 x 136

Sleeping area, rear berths (cm)

-

Kitchen equipment G

3-flame gas cooker with electric ignition, glass cover and stainless steel sink

X

Chuck box

O

Kitchen taps (cold & hot water)

X

Microwave oven

O

Microwave oven preinstallation

X

Refrigerator

140 L

Sink cover / chopping board

O

Bathroom equipment H

Bathroom taps (washing & showering)

X

Separate shower cabin with solid door

X

Separate shower faucet

X

Shower tray

X

Toiletry to go

O

WC chemical, turnable, passive ventilated

X

Water installations I

Boiler Truma Therme 5 L

X

Central waste water outlet

X

Fresh water tank with external inlet (L)

50

Waste water tank (L)

O

Electricity J

13-pin socket Jaeger

X

Awning LED light

X

Battery charger

X / 17A

Ceiling LED lights

X

Control panel

X

Main fit switch

X

Power sockets

X

Preinstallation for charger with battery box

X

Preinstallation for charger with battery box and external fultifunctional outlet

O

Preinstallation for roof clima device

X

TV aerial connector with coaxial cable

X

Heating/air conditioning K

Additional electric heater Truma Ultraheat

O ( only Truma)

Electric floor heating with transformer

O ( only Truma)

Gas heating stove Truma S3004

Truma Pack

Hot-air distribution Trumavent

O ( only Truma)

Preinstallation for additional electric heater Truma Ultraheat - preinstallation

X (only Truma)

Preinstallation for air condition

X

Gas L

Gas bottle compartment 2 x 11 kg

1 x 11kg

Gas bottle holder

X

Gas regulation valve

X

Smart box one

O

Smart box two

O

Audio/video M

TV holder

O

2. New in 2017 & key features

  • New 'i-shaped' exterior silhouette and graphics.
  • Solid body construction with embossed aluminium sidewalls.
  • AL-KO or BPW chassis, dependent on model.
  • Stylish new interior design and choice of textiles.
  • Optional Kid's Adventure Playground on selected layouts.
  • Comfortable sleeping in many bed formats for up-to 7 persons.
  • Flexible lounge seating and table group.
  • Smart kitchen with 2 or 3 burner stove, cover, sink and fridge.
  • Stylish new bathroom with quality bathroom equipment and optional Vanity Pack to go.
  • Original and innovative, adaptable storage trays for easy camping.
  • Optional Truma heating.
  • Pre-installation for air-conditioning.
  • Optional Secondary External Kitchen unit for outdoor living.

3. Textiles

Bahia
Cavana
Honduras

Exterior features

Picture for illustration purposes only. Details may vary.

The new Aviva is an easy caravan to own, tow and enjoy. Elegant new design with 'i-shaped' exterior silhouette, and stylish new interior. A breath of fresh air in how a modern day caravan is designed, with original features designed around how you go camping. And affordable too, offering outstanding value for money.


New 'i-shaped' exterior silhouette with recognized Adria chrome handles.

Solid body embossed aluminium sidewalls, tent profile and new graphics.

LED awning light.

Two-part entrance door.

AL-KO chassis or BPW chassis (model dependent).

Solid body embossed aluminium sidewalls.

New innovative front storage compartment.

AL-KO or BPW chassis dependent on model.

Interior features

Picture for illustration purposes only. Details may vary.

Lightweight and easy to use. Packed with original innovative new features. Stylish contemporary interior and great value too.


Stylish new bathroom with optional Vanity Pack to go.

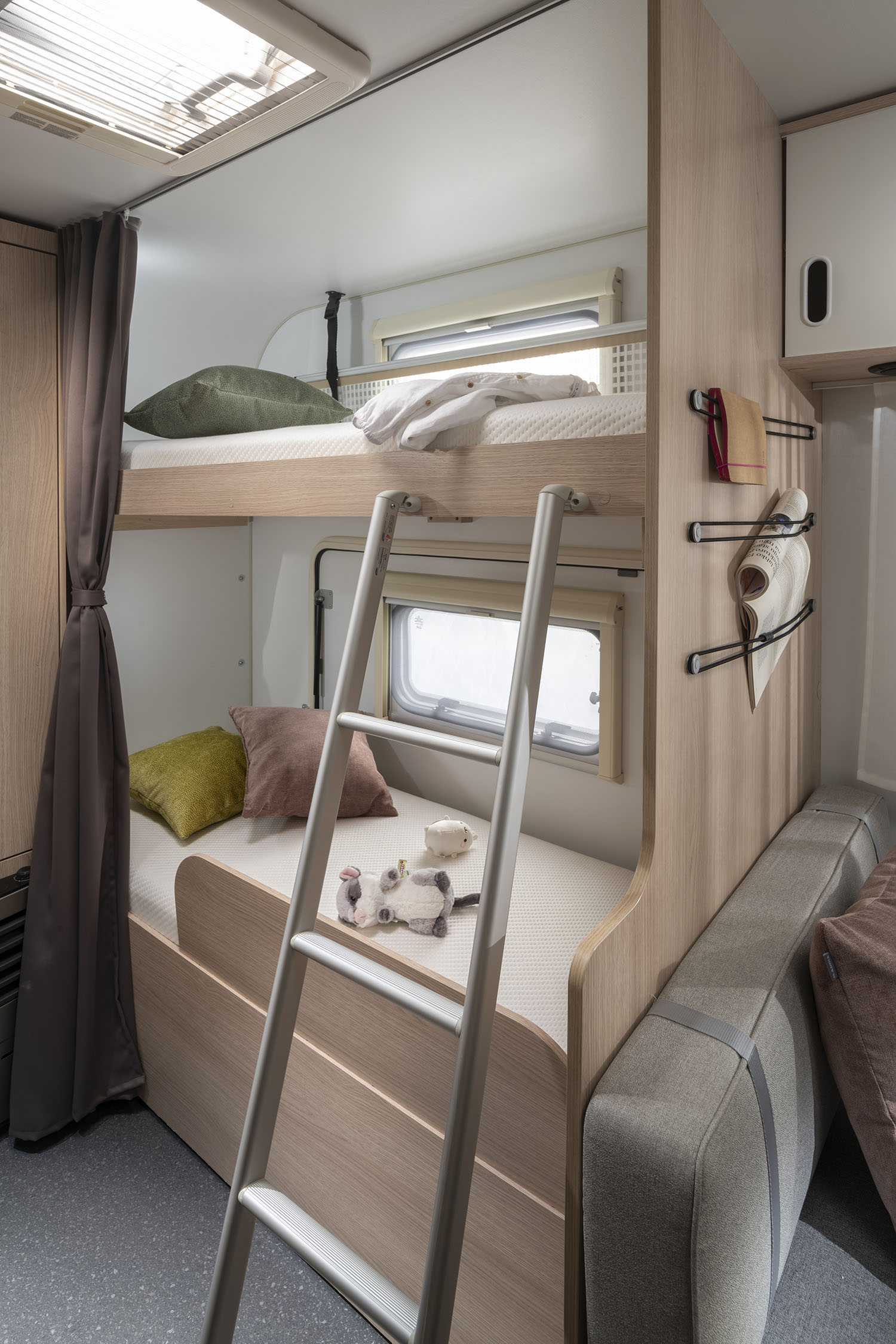

Comfortable sleeping in multiple bedroom formats for up-to 7 persons.

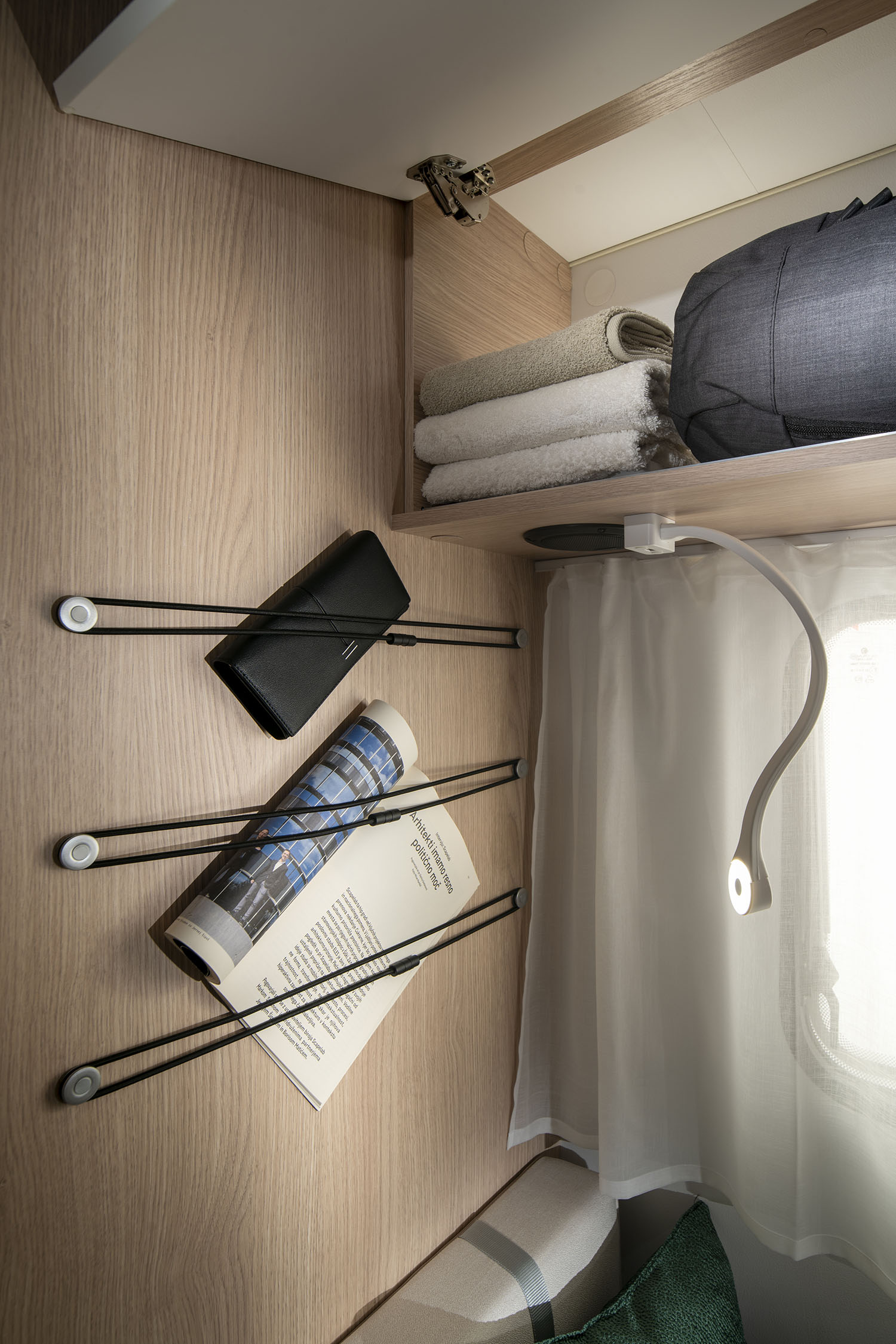

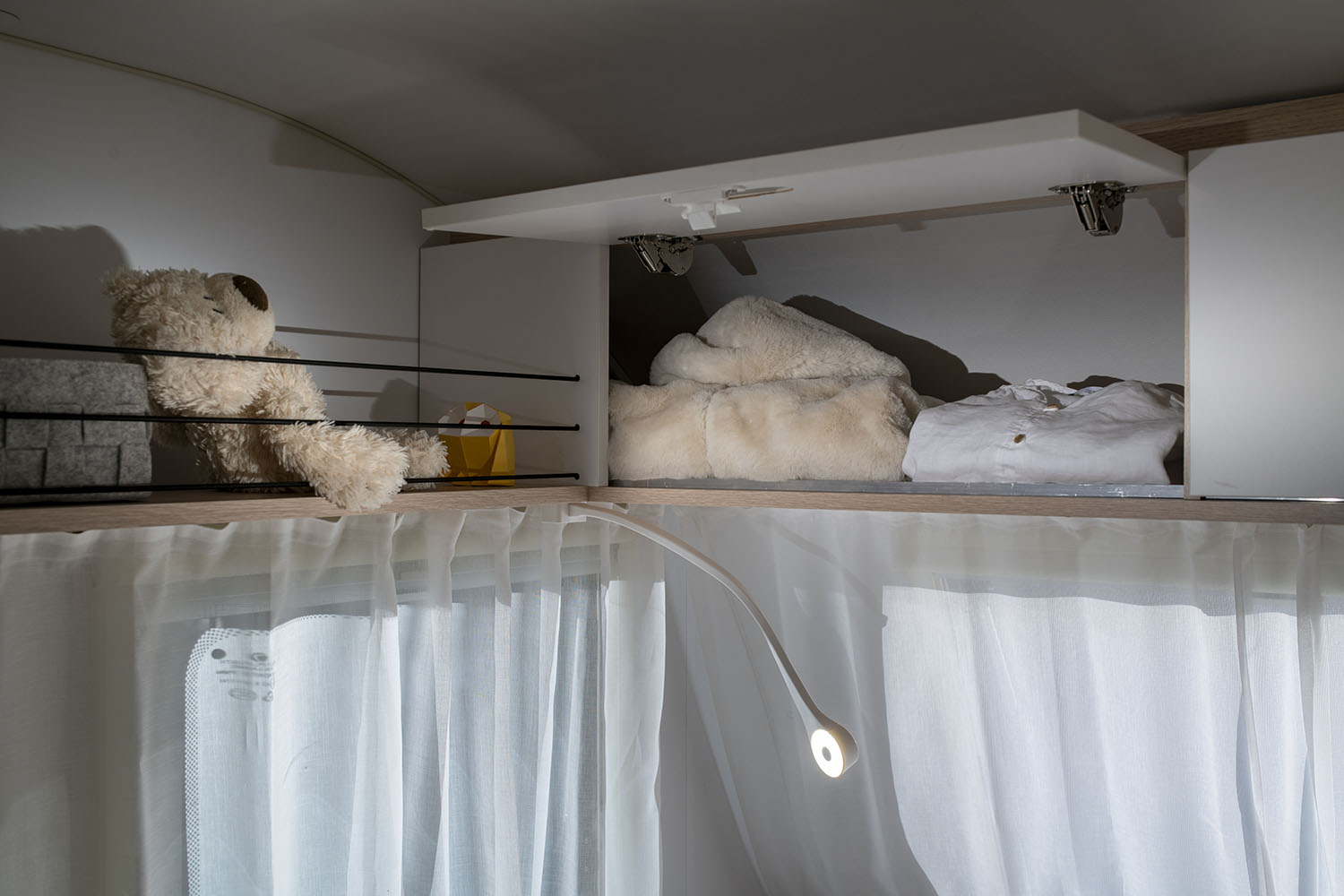

New adaptable storage trays for easy loading and use during camping.

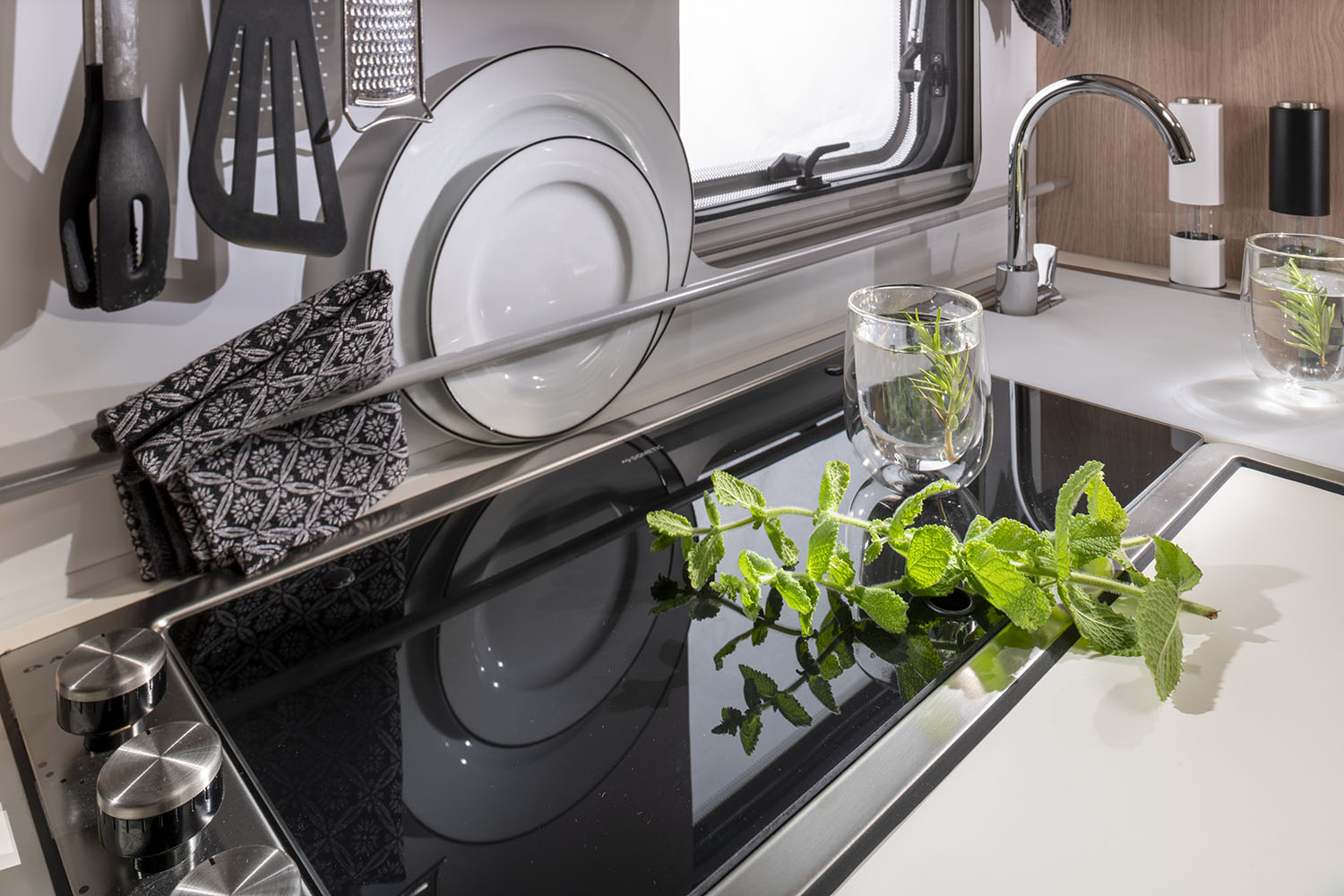

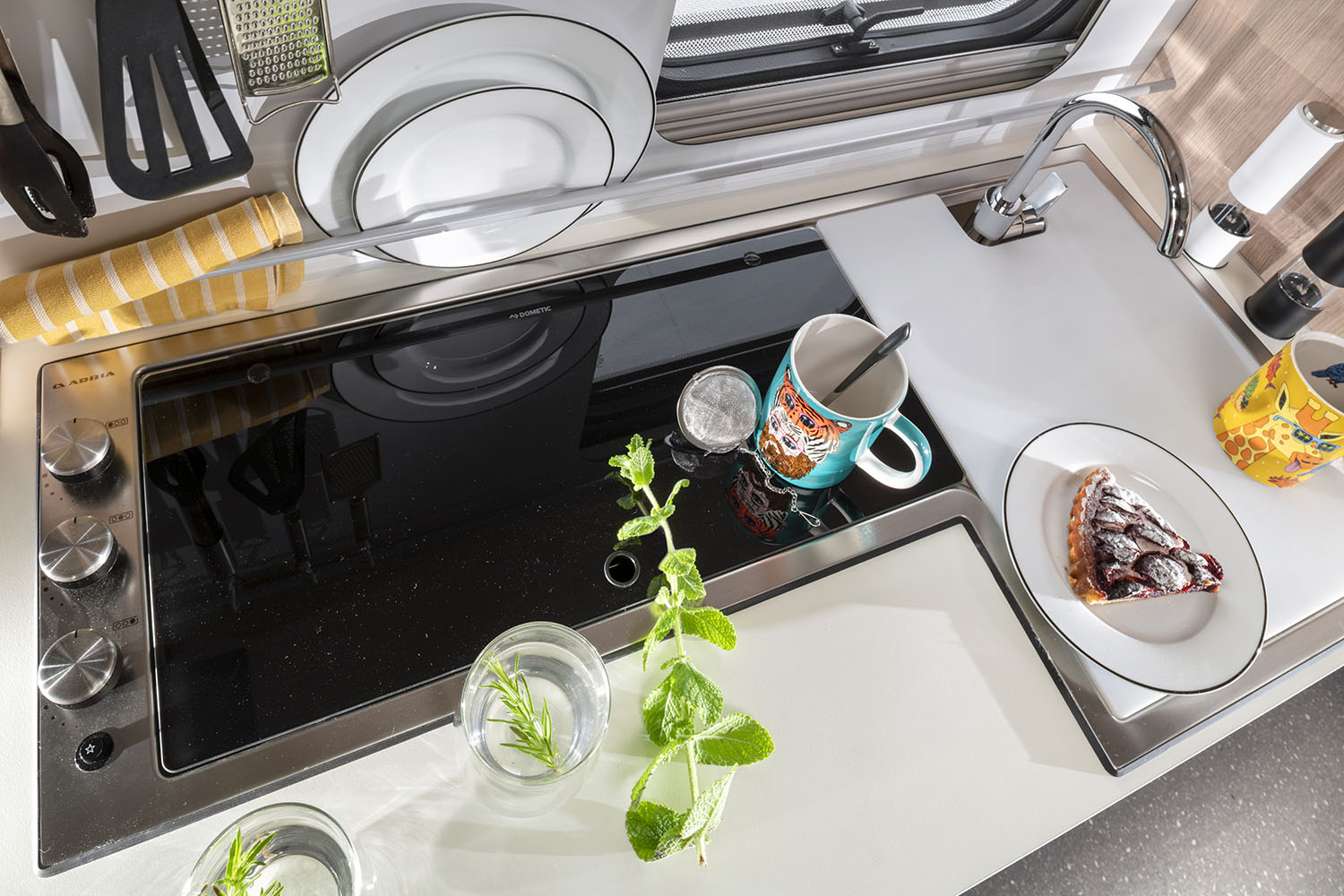

Smart kitchen with 2 or 3 burner stove, cover, sink and fridge.

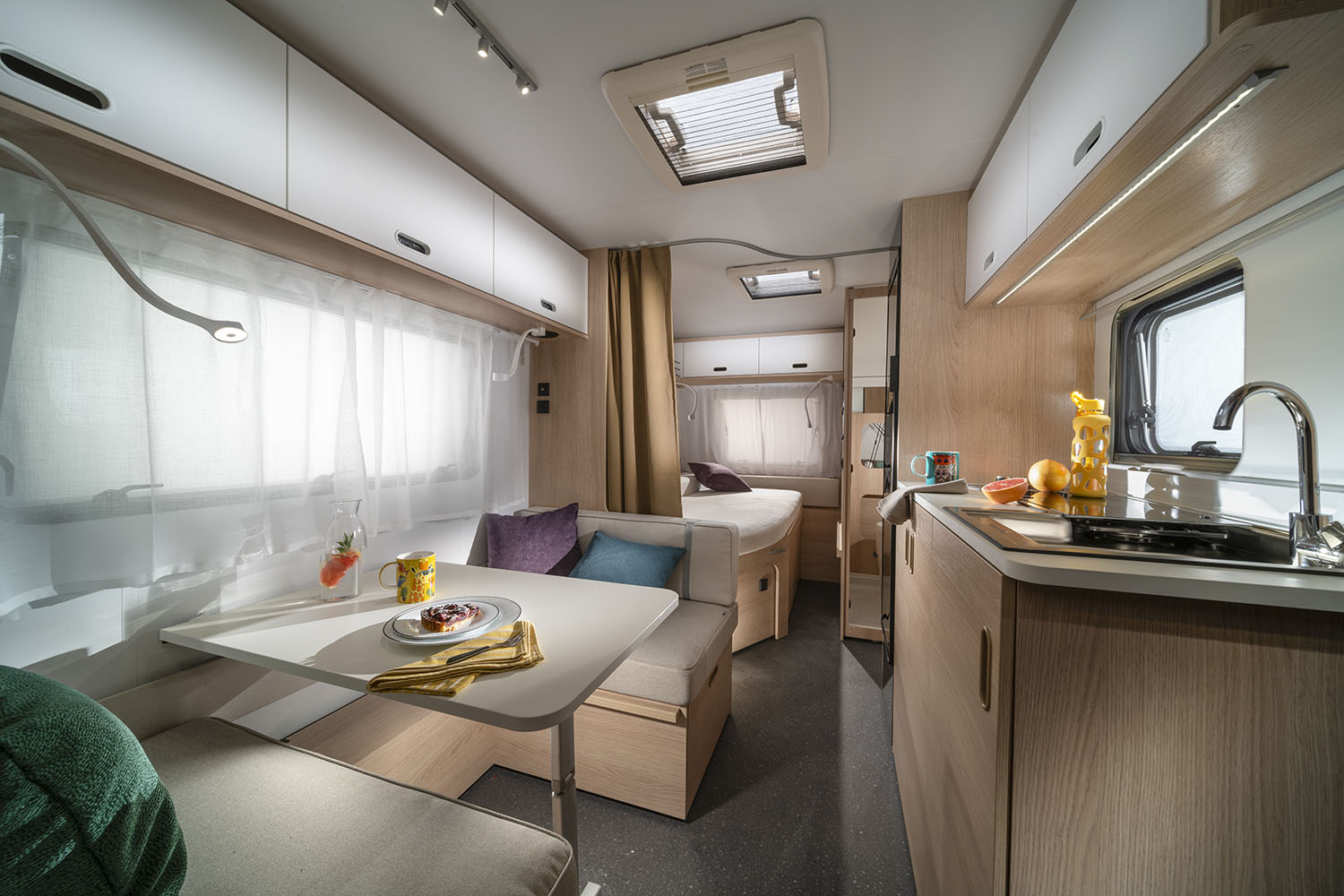

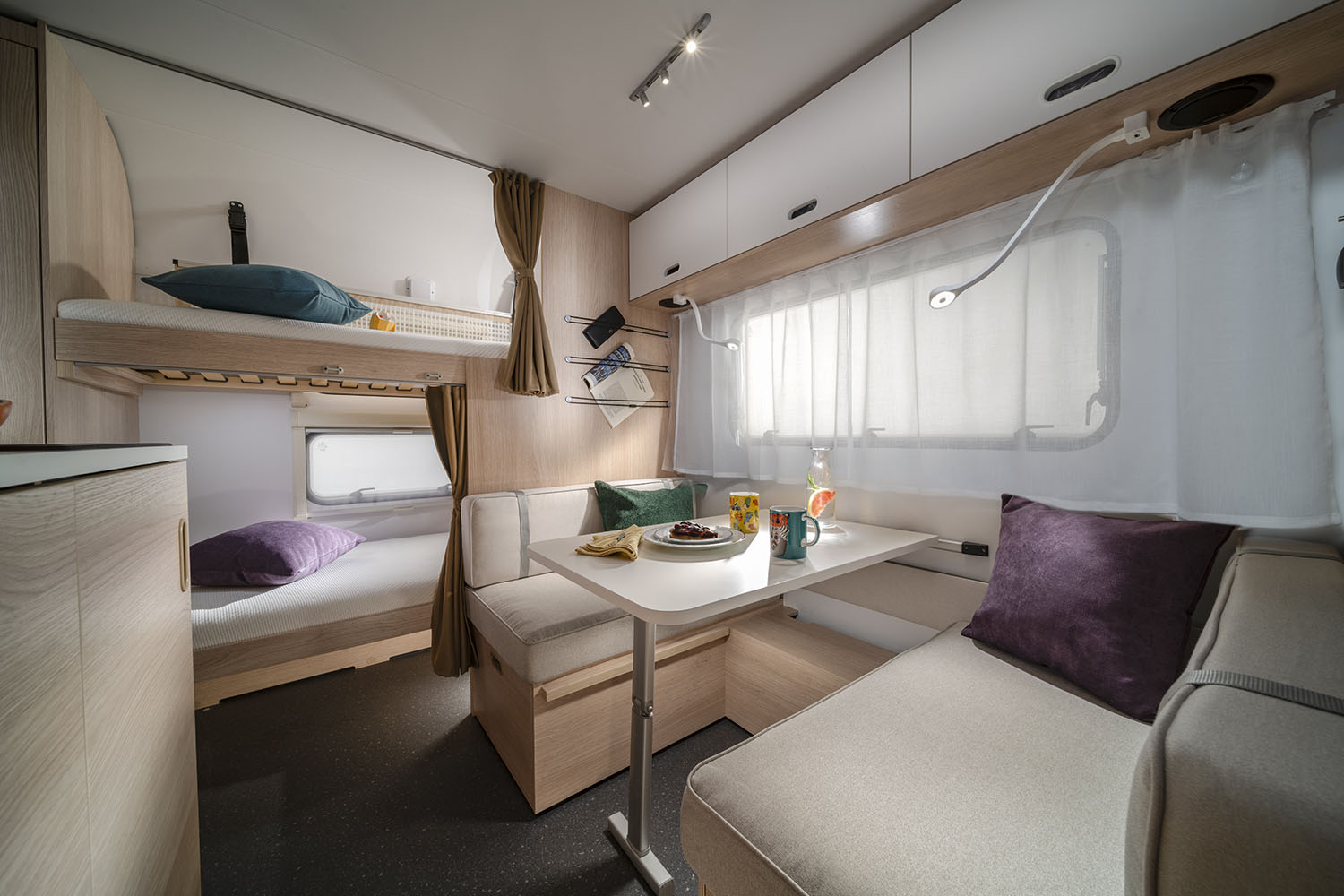

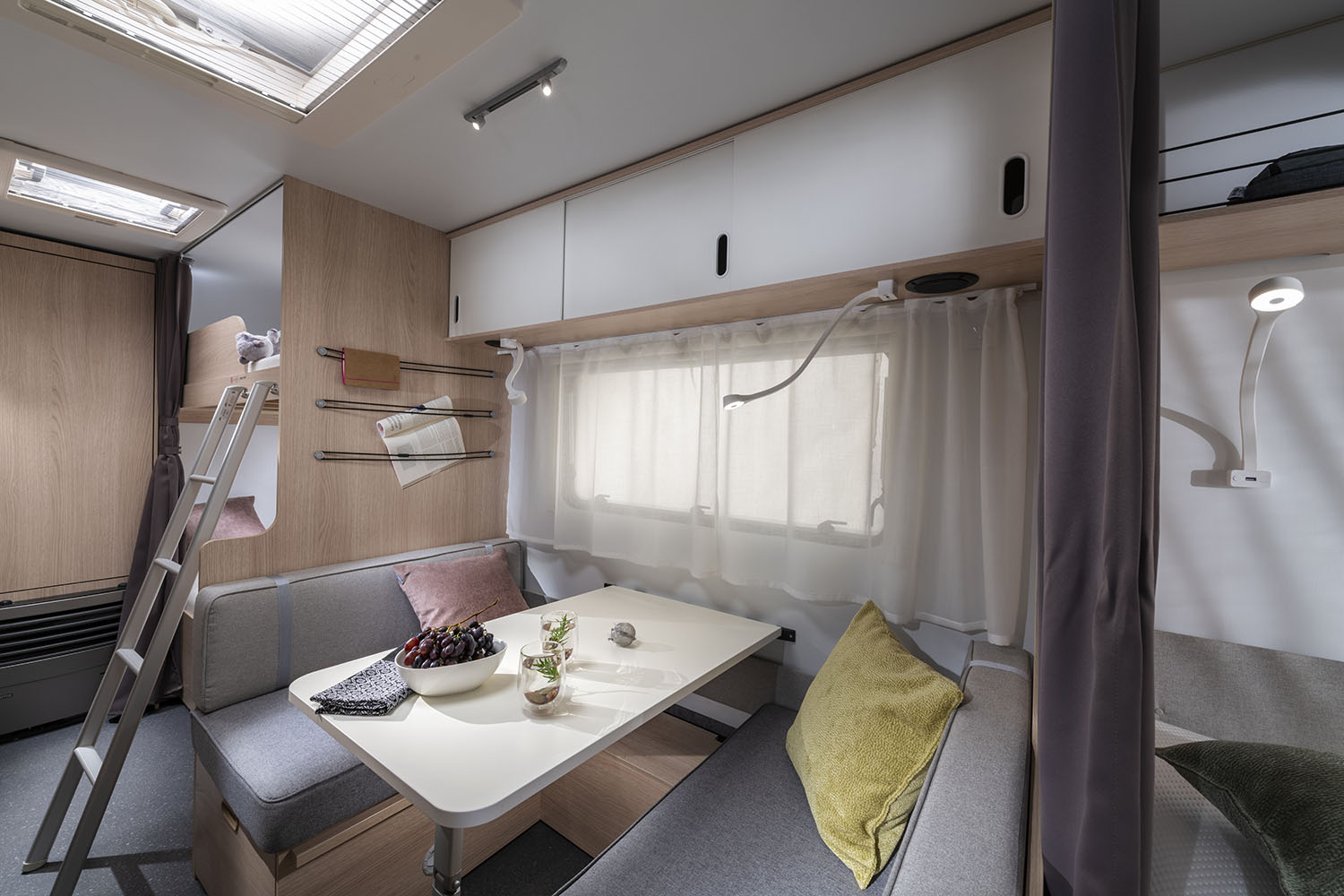

New interior with innovative features for stylish living.

Optional Truma heating.

Interior features
